# gffilter (prime Galois field)

Filter data using polynomials over prime Galois field

## Syntax

```y = gffilter(b,a,x) y = gffilter(b,a,x,p) ```

## Description

Note

This function performs computations in GF(pm), where p is prime. To work in GF(2m), use the `filter` function with Galois arrays. For details, see Filtering.

`y = gffilter(b,a,x)` filters the data in vector `x` with the filter described by vectors `b` and `a`. The vectors `b`, `a` and `x` must be in GF(2), that is, be binary and `y` is also in GF(2).

`y = gffilter(b,a,x,p)` filters the data `x` using the filter described by vectors `a` and `b`. `y` is the filtered data in GF(`p`). `p` is a prime number, and all entries of `a` and `b` are between 0 and `p`-1.

By definition of the filter, `y` solves the difference equation

```a(1)y(n) = b(1)x(n)+b(2)x(n-1)+b(3)x(n-2)+...+b(B+1)x(n-B)                      -a(2)y(n-1)-a(3)y(n-2)-...-a(A+1)y(n-A) ```

where

• `A`+1 is the length of the vector `a`

• `B`+1 is the length of the vector `b`

• `n` varies between 1 and the length of the vector `x`.

The vector `a` represents the degree-na polynomial

```a(1)+a(2)x+a(3)x^`2`+...+a(A+1)x```^A ``````

## Examples

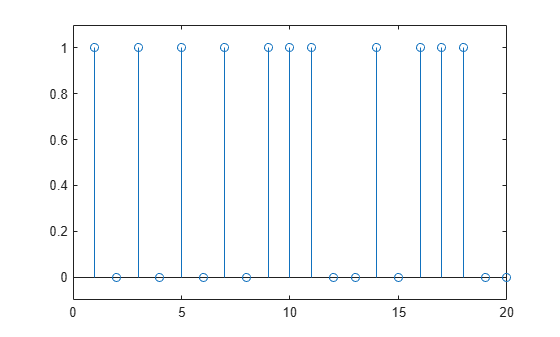

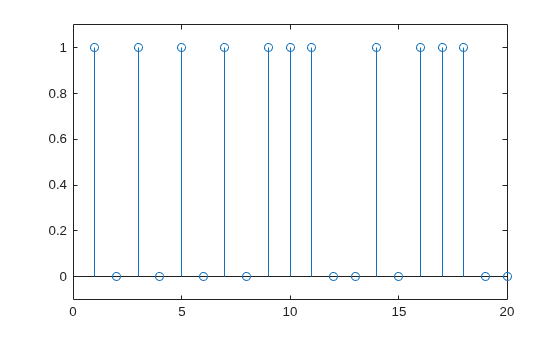

The impulse response of a particular filter is given in the code and diagram below.

```b = [1 0 0 1 0 1 0 1]; a = [1 0 1 1]; y = gffilter(b,a,[1,zeros(1,19)]); stem(y); axis([0 20 -.1 1.1])```
