# Generate and Apply Hamming Window

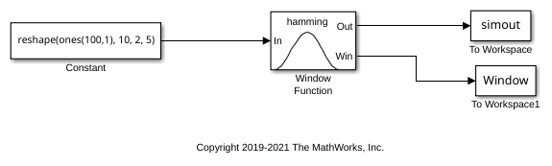

The following model uses the Window Function block to generate and apply a Hamming window to a 3-dimensional input array.

In this example, set the Operation parameter of the Window Function block to `Generate and apply window`. The block provides two outputs: the window vector, Window at the Win port, and the result of the multiplication, simout at the Out port.

Open the model `ex_windowfunction_ref`.

Run the model.

The length of the first dimension of the input array is 10, so the Window Function block generates and outputs a Hamming window vector of length 10. To see the window vector generated by the Window Function block, type `Window` at the MATLAB® command line.

```Window = 0.0800 0.1876 0.4601 0.7700 0.9723 0.9723 0.7700 0.4601 0.1876 0.0800 DataTypeMode: Fixed-point: binary point scaling Signedness: Signed WordLength: 16 FractionLength: 15 ```

To see the result of the multiplication, type `simout` at the MATLAB command line.

```simout = (:,:,1) = 0.0791 0.0791 0.1875 0.1875 0.4600 0.4600 0.7695 0.7695 0.9717 0.9717 0.9717 0.9717 0.7695 0.7695 0.4600 0.4600 0.1875 0.1875 0.0791 0.0791 (:,:,2) = 0.0791 0.0791 0.1875 0.1875 0.4600 0.4600 0.7695 0.7695 0.9717 0.9717 0.9717 0.9717 0.7695 0.7695 0.4600 0.4600 0.1875 0.1875 0.0791 0.0791 (:,:,3) = 0.0791 0.0791 0.1875 0.1875 0.4600 0.4600 0.7695 0.7695 0.9717 0.9717 0.9717 0.9717 0.7695 0.7695 0.4600 0.4600 0.1875 0.1875 0.0791 0.0791 (:,:,4) = 0.0791 0.0791 0.1875 0.1875 0.4600 0.4600 0.7695 0.7695 0.9717 0.9717 0.9717 0.9717 0.7695 0.7695 0.4600 0.4600 0.1875 0.1875 0.0791 0.0791 (:,:,5) = 0.0791 0.0791 0.1875 0.1875 0.4600 0.4600 0.7695 0.7695 0.9717 0.9717 0.9717 0.9717 0.7695 0.7695 0.4600 0.4600 0.1875 0.1875 0.0791 0.0791 DataTypeMode: Fixed-point: binary point scaling Signedness: Signed WordLength: 16 FractionLength: 10 ```
