Solve Matrix Equation Using Backward Substitution

This example uses:

Open Model

Solve a matrix equation using the Backward Substitution block.

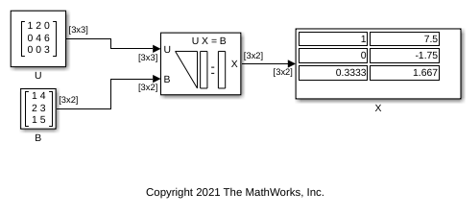

Open and run the model. The model solves the equation ${UX = B}$ using the Backward Substitution block. The block accepts $U$ and $B$ matrices as inputs, and outputs the solution matrix $X$.

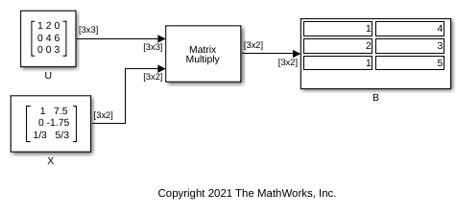

You can verify the solution by using the Matrix Multiply block to perform the multiplication $UX$, as shown in following model. The output matrix $B$ in this model equals the input matrix $B$ in the previous model.
