Channel Synthesizer

Combine narrowband signals into multichannel signal

Since R2022a

•

×

Libraries:
DSP HDL Toolbox / Filtering

Description

The Channel Synthesizer block combines narrowband signals into a multi-channel signal using the polyphase filter bank technique.

The block accepts a real- or complex-valued row-vector input data and control signals, and outputs synthesized column-vector and a control signal. You can achieve gigasamples-per-second (GSPS) throughput, also called super sample rates, using this block. The block implements a polyphase filter, with one subfilter per input vector element. The block supports HDL code generation and hardware deployment.

Note

You can also generate HDL code for this hardware-optimized algorithm, without creating a Simulink^® model, by using the DSP HDL IP Designer app. The app provides the same interface and configuration options as the Simulink block.

Examples

HDL Implementation of Four Channel Synthesizer and Channelizer

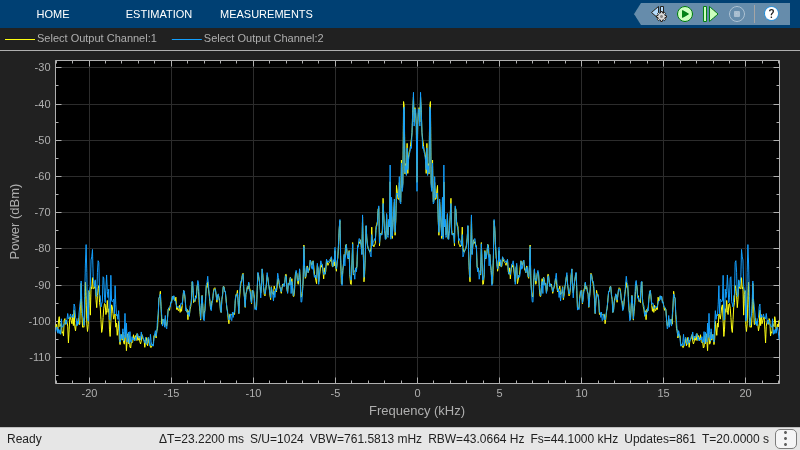

Synthesize four stereo signals into a broadband signal and split the signal back into the individual narrowband signals.

• Open Script

Ports

Input

data — Input data

real-valued row vector | complex-valued row vector

Input data, specified as a real- or complex-valued row vector.

The vector length must be a power of 2 and in the range [4, 64].

You can use double and single data types for simulation, but not for HDL code generation.

Data Types: fixed point | single | double | int8 | int16 | int32 | uint8 | uint16 | uint32
Complex Number Support: Yes

valid — Indicates valid input data

scalar

Control signal that indicates if the input data is valid. When valid is 1 (true), the block captures the values from the input data port. When valid is 0 (false), the block ignores the values from the input data port.

Data Types: Boolean

reset — Clears internal states

scalar

Control signal that clears internal states. When reset is 1 (true), the block stops the current calculation and clears internal states. When the reset is 0 (false) and the input valid is 1 (true), the block captures data for processing.

For more reset considerations, see the Reset Signal section on the Hardware Control Signals page.

Dependencies

To enable this port, on the Control Ports tab, select the Enable reset input port parameter.

Data Types: Boolean

Output

data — Synthesized output data

complex-valued column vector

Synthesized output data, returned as a complex-valued column vector.

When the input data type is a floating-point type, the output data inherits the data type of the input data. When the input data type is an integer type or a fixed-point type, the Output parameter on the Data Types tab controls the output data type.

The output size is same as the input size and is equal to the number of frequency bands or IFFT length. The output order is bit natural. The output data type depends on the IFFT bit growth, required to avoid overflow, and the data type set in the Output parameter.

Data Types: fixed point | single | double
Complex Number Support: Yes

valid — Indicates valid output data

scalar

Control signal that indicates if the data from the output data port is valid. When valid is 1 (true), the block returns valid data from the output data port. When valid is 0 (false), the values from the output data port are not valid.

Data Types: Boolean

Parameters

Main

Filter coefficients — Polyphase filter coefficients

[-0.0329 0.1218 0.3183 0.4829 0.5469 0.4829 0.5469 0.4829 0.3183 0.1218 -0.0329] (default) | complex-valued vector

Polyphase filter coefficients, specified as a vector of numeric values. If the number of coefficients is not a multiple of the number of frequency bands or the IFFT length, the block pads this vector with zeros. The default filter specification is a raised-cosine FIR filter, rcosdesign(0.25,2,4,'sqrt'). You can specify a vector of coefficients or a call to a filter design function that returns the coefficient values. By default, the block casts the coefficients to the same word length as the input.

Filter structure — HDL filter architecture

Direct form transposed (default) | Direct form systolic

Specify the HDL filter architecture as one of these values:

• Direct form transposed — This architecture is a fully parallel implementation that is suitable for FPGA and ASIC applications. For architecture and performance details, see Fully Parallel Transposed Architecture.

• Direct form systolic — This architecture provides a fully parallel filter implementation that makes efficient use of Intel^® and AMD^® DSP blocks. For architecture and performance details, see Fully Parallel Systolic Architecture.

Complex multiplication — HDL implementation of complex multipliers

Use 4 multipliers and 2 adders (default) | Use 3 multipliers and 5 adders

Specify the HDL implementation of complex multipliers as either Use 4 multipliers and 2 adders or Use 3 multipliers and 5 adders. The speed of the multipliers depends on your synthesis tool and target device.

Divide butterfly outputs by two — IFFT scaling

on (default) | off

When you select this parameter, the IFFT implements an overall 1/N scale factor by scaling the result of each pipeline stage by 2, where N is the IFFT length. This adjustment keeps the output of the IFFT in the same amplitude range as its input. If you disable scaling, the IFFT avoids overflow by increasing the word length by one bit at each stage.

Data Types

Rounding mode — Rounding mode for typecasting output

Floor (default) | Ceiling | Convergent | Nearest | Round | Zero

Use fixed-point arithmetic for internal calculations when the input is an integer or fixed-point data type. This option does not apply when the input is single or double. For more details, see Rounding Modes.

Saturate on integer overflow — Overflow handling for typecasting output

off (default) | on

Use fixed-point arithmetic for internal calculations when the input is an integer or fixed-point data type. This option does not apply when the input is single or double. Cast the coefficients and output of the polyphase filter to the data types you specify. For more information, see Overflow Handling.

Coefficients — Data type of the coefficients

Inherit: Same word length as input (default) | <data type expression>

Cast the polyphase filter coefficients to this data type using the rounding and overflow settings you specify. When you select Inherit: Same word length as input (default), the block selects the binary point using fixed point best-precision rules.

Output — Data type of block output

Inherit: via internal rule (default) | Inherit: Same as input | <data type expression>

When you select Inherit: via internal rule, the block selects a best-precision binary point by considering filter coefficients values and the input data type range. When you select Inherit: Same as input, the block casts the output of the polyphase filter to the input data type, using the rounding and overflow settings you specify.

Control Ports

Enable reset input port — Option to enable reset input port

off (default) | on

Select this parameter to enable the reset input port. The reset signal implements a local synchronous reset of the data path registers.

Algorithms

The polyphase filter algorithm requires a subfilter for each FFT channel. For more information about the polyphase filter architecture, see the Channelizer (DSP System Toolbox) block reference page.

If the FFT length is N, the block implements N subfilters in the hardware. Each subfilter is an FIR filter direct form transposed or direct form systolic with Num_Coeffs/N taps. The block casts the output of the subfilters to the specified Output data type by using the rounding and overflow settings you select and then pipelines filter tap in the subfilter to target the DSP sections of an FPGA.

Latency

The latency varies with the input size and filter structure. After you update the model, the block displays the latency on the block icon. The displayed latency is the number of cycles between the first valid input and the first valid output, assuming that the input is continuous. The filter coefficients and complex multiplication do not affect the latency.

This figure shows the output of the block for a vector input length 8 when you set the Filter structure parameter to Direct form transposed and all other parameters to their default values. The latency of the block is 19 clock cycles.

This figure shows the output of the block for a vector input of length 8 when you set the Filter structure parameter to Direct form systolic and all other parameters to their default values. The latency of the block is 31 clock cycles.

Performance

These resource and performance data are the place-and-route results from the generated HDL targeted to the AMD Zynq^®- 7000 ZC706 evaluation board. The two examples in the tables use this common configuration:

• 1-by-8 vector

• 16-bit complex input data

• Filter structure — Direct form transposed

• Filter length — 96 coefficients

• Coefficient data type — Same word length as input

• Output data type — Same as input

• Complex multiplication (default) — Use 4 multipliers and 2 adders

• Output scaling — Enabled

The performance of the synthesized HDL code varies with your target and synthesis options.

When you set the Filter structure parameter to Direct form transposed, the block achieves a clock frequency of 382 MHz. The design uses these resources.

Resource	Number Used
LUT	1953
FFS	3833
AMD LogiCORE® DSP48	208

When you set the Filter structure to Direct form systolic, the block achieves a clock frequency of 381 MHz. The design uses these resources.

Resource	Number Used
LUT	2026
FFS	3519
AMD LogiCORE DSP48	208

References

[1] Harris, Fredric J. Multirate Signal Processing for Communication Systems. Upper Saddle River, N.J: Prentice Hall PTR, 2004.

[2] Harris, Frederic J., Chris Dick, and Michael Rice. "Digital Receivers and Transmitters Using Polyphase Filter Banks for Wireless Communications." IEEE^® Transactions on Microwave Theory and Techniques. 51, no 4, (April 2003): 1395–1412. https://doi.org/10.1109/TMTT.2003.809176.

Extended Capabilities

C/C++ Code Generation

Generate C and C++ code using Simulink® Coder™.

This block supports C/C++ code generation for Simulink accelerator and rapid accelerator modes and for DPI component generation.

HDL Code Generation

Generate VHDL, Verilog and SystemVerilog code for FPGA and ASIC designs using HDL Coder™.

HDL Coder™ provides additional configuration options that affect HDL implementation and synthesized logic.

HDL Architecture

This block has one default HDL architecture.

HDL Block Properties

ConstrainedOutputPipeline	Number of registers to place at the outputs by moving existing delays within your design. Distributed pipelining does not redistribute these registers. The default is 0. For more details, see ConstrainedOutputPipeline (HDL Coder).
InputPipeline	Number of input pipeline stages to insert in the generated code. Distributed pipelining and constrained output pipelining can move these registers. The default is 0. For more details, see InputPipeline (HDL Coder).
OutputPipeline	Number of output pipeline stages to insert in the generated code. Distributed pipelining and constrained output pipelining can move these registers. The default is 0. For more details, see OutputPipeline (HDL Coder).

Version History

Introduced in R2022a
