This example shows how to analyze the characteristics of a portfolio of equities, and then compares them with the efficient frontier. This example seeks to answer the question of how much closer can you get to the efficient frontier by only risking a certain percentage of a portfolio to avoid transaction costs.
Load information on the current portfolio holdings from a Microsoft® Excel® spreadsheet into a table using the MATLAB® readtable
function.
AssetHoldingData = readtable('portfolio.xls'); % Create a normalized current holdings vector that shows the respective % investments as a percentage of total capital: W = AssetHoldingData.Value/sum(AssetHoldingData.Value);
Import the market data from a data source supported by Datafeed Toolbox™ that constitutes three years of closing prices for the stocks listed in the portfolio.
load SharePrices
Portfolio
ObjectThe Portfolio
class enables you to use the imported data to create a Portfolio
object. The estimateAssetMoments
function for the Portfolio
object enables you to set up a portfolio given only a historical price or returns series. The estimateAssetMoments
function estimates mean and covariance of asset returns from data even if there is missing data.
P = Portfolio('Name', 'Sample Turnover Constraint Portfolio'); P = estimateAssetMoments(P,data,'DataFormat','Prices'); % You can assign text names to each asset in the portfolio. P = setAssetList(P,AssetHoldingData.Symbol); % Provide the current holdings. P = setInitPort(P,W);
The Portfolio
object can optimize the holdings given any number of constraints. This example demonstrates using a simple, default constraint, that is, long positions only and 100% invested in assets.
P = setDefaultConstraints(P);

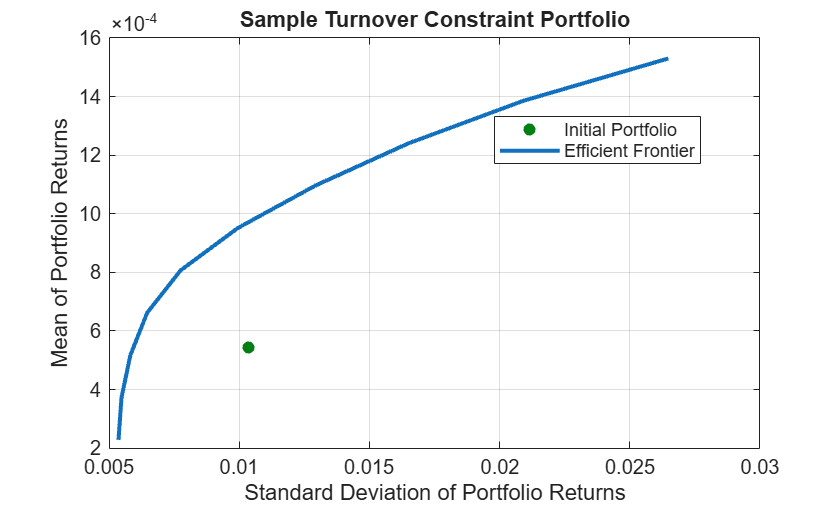

Visualize this efficient frontier with the plotFrontier
function.
plotFrontier(P)
Due to transaction costs, it can be expensive to shift holdings from the current portfolio to a portfolio along this efficient frontier. The following custom plot shows that you must turn over between 50% and 75% of the holdings to get to this frontier.
TurnoverPlot(P)
How close can you get to this efficient frontier by only trading some of the portfolio? Assume that you want to trade only a certain percentage of the portfolio to avoid too much turnover in your holdings. This requirement imposes some nonlinear constraints on the problem and gives a problem with multiple local minima. Even so, the Portfolio
object solves the problem, and you specify the turnover constraint using the setTurnover
function.

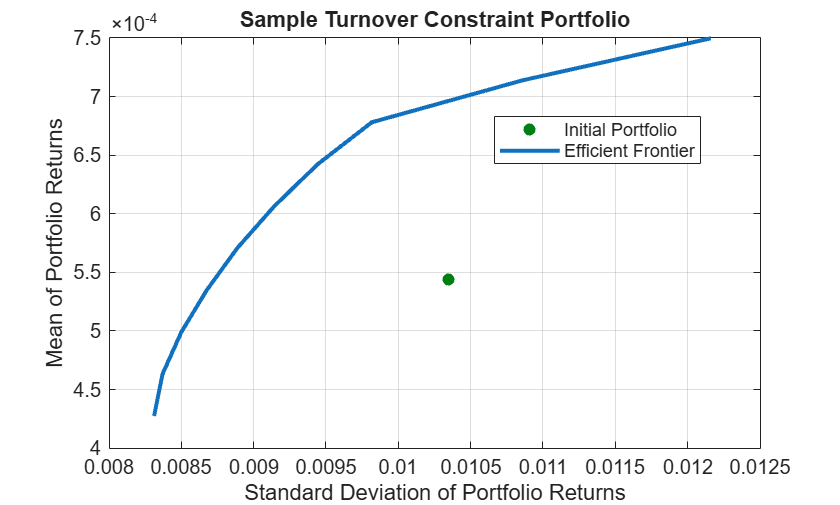

P10 = setTurnover(P,0.10); plotFrontier(P10)

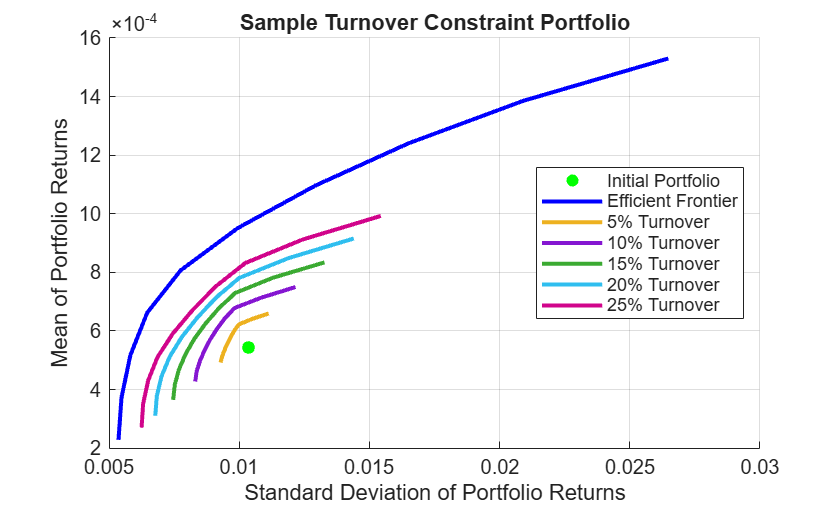

This efficient frontier is much closer to the initial portfolio than the starting efficient frontier without turnover constraints. To visualize this difference, use the custom function TurnoverConstraintPlot
to visualize multiple constrained efficient frontiers at different turnover thresholds.
turnovers = 0.05:0.05:0.25; TurnoverConstraintPlot(P,turnovers)
The Portfolio
object is a powerful and efficient tool for performing various portfolio analysis tasks. In addition to turnover constraints, you can also optimize a Portfolio
object for transaction costs for buying and selling portfolio assets using the setCosts
function.
addGroups
| estimateAssetMoments
| estimateBounds
| estimateFrontierByRisk
| estimateFrontierLimits
| estimatePortRisk
| plotFrontier
| Portfolio
| setAssetMoments
| setBounds
