Optimal Component Choice Using surrogateopt

This example shows how to choose the resistors and thermistors in a circuit to best match a specified curve at one point in the circuit. You must choose all of the electronic components from a list of available components, which means this is a discrete optimization problem. To help visualize the progress of the optimization, the example includes a custom output function that displays the quality of the intermediate solutions as the optimization progresses. Because this is an integer problem with a nonlinear objective function, use the surrogateopt solver.

This example is adapted from Lyon [1].

Problem Description

The problem involves this circuit.

A voltage source holds point A at 1.1V. The problem is to select resistors and thermistors from a list of standard components so that the voltage at point B matches the target curve as a function of temperature.

Tdata = -40:5:85;
Vdata = 1.026E-1 + -1.125E-4 * Tdata + 1.125E-5 * Tdata.^2;
plot(Tdata,Vdata,'-*');
title('Target Curve','FontSize',12);
xlabel('Temperature (^oC)'); ylabel('Voltage (V)')

Figure contains an axes object. The axes object with title Target Curve, xlabel Temperature ( toThePowerOf o baseline C ), ylabel Voltage (V) contains an object of type line.

Load the standard components list.

load StandardComponentValues

The Res vector contains the standard resistor values. The ThBeta and ThVal vectors contain standard parameters for the thermistors. Thermistor resistance as a function of temperature T is

RTh=R25exp(βT-T25TT25).

  • RTh is the thermistor resistance.

  • R25 is the resistance at 25 degrees Celsius, parameter ThVal.

  • T25 is the temperature 25 degrees Celsius.

  • T is the current temperature.

  • β is the thermistor parameter ThBeta.

Based on standard voltage calculations, the equivalent series values of the resistances of the R1-Th1 block is

R1equivalent=R1Th1R1+Th1,

and the equivalent resistance of the R3-Th2 block is

R3equivalent=R3Th2R3+Th2.

Therefore, the voltage at point B is

V=1.1R3equivalent+R4R1equivalent+R2+R3equivalent+R4.

Convert Problem to Code

The problem is to choose resistors R1 through R4 and thermistors Th1 and Th2 so that the voltage V best matches the target curve. Have the control variable x represent these values:

  • x(i) = index of Ri, for i from 1 through 4

  • x(5) = index of Th1

  • x(6) = index of Th2

The tempCompCurve function calculates the resulting voltage in terms of x and the temperature Tdata.

type tempCompCurve
function F = tempCompCurve(x,Tdata)
%% Calculate Temperature Curve given Resistor and Thermistor Values
% Copyright (c) 2012-2019, MathWorks, Inc.
%% Input voltage
Vin = 1.1;

%% Thermistor Calculations
% Values in x: R1 R2 R3 R4 RTH1(T_25degc) Beta1 RTH2(T_25degc) Beta2
% Thermistors are represented by:
%   Room temperature is 25degc: T_25
%   Standard value is at 25degc: RTHx_25
%   RTHx is the thermistor resistance at various temperatures
% RTH(T) = RTH(T_25degc) / exp (Beta * (T-T_25)/(T*T_25))
T_25 = 298.15;
T_off = 273.15;
Beta1 = x(6);
Beta2 = x(8);
RTH1 = x(5) ./ exp(Beta1 * ((Tdata+T_off)-T_25)./((Tdata+T_off)*T_25));
RTH2 = x(7) ./ exp(Beta2 * ((Tdata+T_off)-T_25)./((Tdata+T_off)*T_25));

%% Define equivalent circuits for parallel Rs and RTHs
R1_eq = x(1)*RTH1./(x(1)+RTH1);
R3_eq = x(3)*RTH2./(x(3)+RTH2);

%% Calculate voltages at Point B
F = Vin * (R3_eq + x(4))./(R1_eq + x(2) + R3_eq + x(4));

The objective function is the sum of squares of the differences between the target curve and the resulting voltages for a set of resistors and thermistors, over the target range of temperatures.

type objectiveFunction
function G = objectiveFunction(x,StdRes, StdTherm_Val, StdTherm_Beta,Tdata,Vdata)
%% Objective function for the thermistor problem
% Copyright (c) 2012-2019, MathWorks, Inc.

% % StdRes = vector of resistor values
% StdTherm_val = vector of nominal thermistor resistances
% StdTherm_Beta = vector of thermistor temperature coefficients

% Extract component values from tables using integers in x as indices
y = zeros(8,1);
x = round(x); % in case of noninteger components
y(1) = StdRes(x(1));
y(2) = StdRes(x(2));
y(3) = StdRes(x(3));
y(4) = StdRes(x(4));
y(5) = StdTherm_Val(x(5));
y(6) = StdTherm_Beta(x(5));
y(7) = StdTherm_Val(x(6));
y(8) = StdTherm_Beta(x(6));

% Calculate temperature curve for a particular set of components
F = tempCompCurve(y, Tdata);

% Compare simulated results to target curve
Residual = F(:) - Vdata(:);
Residual = Residual(1:2:26);
%%
G = Residual'*Residual; % sum of squares

Monitor Progress

To observe the progress of an optimization, call an output function that plots the best response of the system found so far and the target curve. The SurrOptimPlot function plots these curves, and updates the curves only when the current objective function value decreases. This custom output function is lengthy, so it is not shown here. To see the content of this output function, enter type SurrOptimPlot.

Optimize Problem

To optimize the objective function, use surrogateopt, which accepts integer variables. First, set all variables to be integer.

intCon = 1:6;

Set the lower bounds on all variables to 1.

lb = ones(1,6);

The upper bounds for the resistors are all the same. Set the upper bounds to the number of entries in the Res data.

ub = length(Res)*ones(1,6);

Set the upper bounds for the thermistors to the number of entries in the ThBeta data.

ub(5:6) = length(ThBeta)*[1,1];

Set options to use the SurrOptimPlot custom output function, and to use no plot function. Also, to protect against possible interruptions of the optimization, specify a checkpoint file named 'checkfile.mat'.

options = optimoptions('surrogateopt','CheckpointFile','C:\TEMP\checkfile.mat','PlotFcn',[],...
    'OutputFcn',@(a1,a2,a3)SurrOptimPlot(a1,a2,a3,Tdata,Vdata,Res,ThVal,ThBeta));

To give the algorithm a better initial set of points to search, specify a larger initial random sample than the default.

options.MinSurrogatePoints = 50;

Run the optimization.

rng default % For reproducibility
objconstr = @(x)objectiveFunction(x,Res,ThVal,ThBeta,Tdata,Vdata);
[xOpt,Fval] = surrogateopt(objconstr,lb,ub,intCon,options);

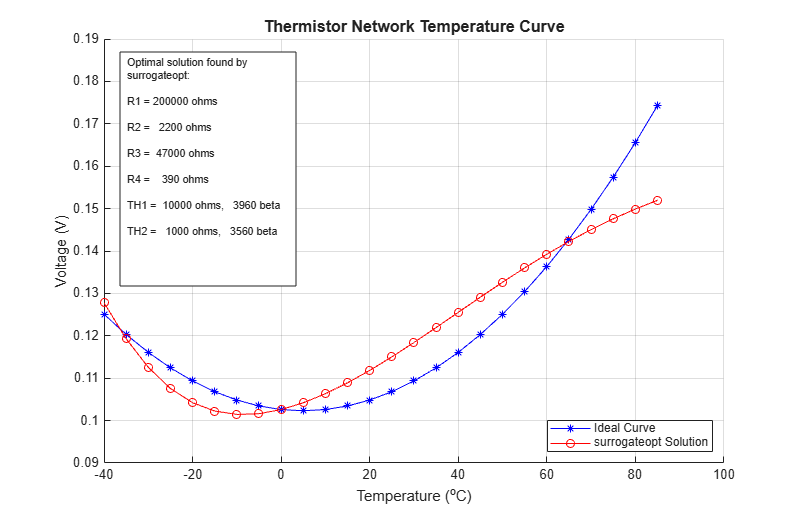

Figure contains an axes object. The axes object with title Thermistor Network Temperature Curve, xlabel Temperature ( toThePowerOf o baseline C ), ylabel Voltage (V) contains 2 objects of type line. These objects represent Ideal Curve, surrogateopt Solution.

surrogateopt stopped because it exceeded the function evaluation limit set by
'options.MaxFunctionEvaluations'.

Optimize with More Function Evaluations

To attempt to get a better fit, restart the optimization from the checkpoint file, and specify more function evaluations. This time, use the surrogateoptplot plot function to monitor the optimization process more closely.

clf % Clear previous figure
opts = optimoptions(options,'MaxFunctionEvaluations',600,'PlotFcn','surrogateoptplot');
[xOpt,Fval] = surrogateopt('C:\TEMP\checkfile.mat',opts);

Figure Optimization Plot Function contains an axes object. The axes object with title Best: 0.000220688 Incumbent: 0.000220688 Current: 0.000383812, xlabel Number of Function Evaluations, ylabel Objective Function contains 6 objects of type line. One or more of the lines displays its values using only markers These objects represent Best, Incumbent, Random Samples, Adaptive Samples, Checkpoint Resume, Surrogate Reset.

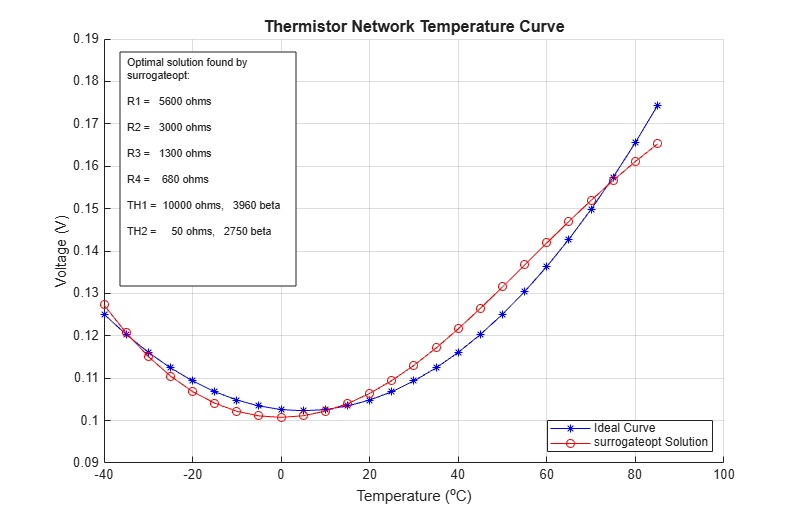

Figure contains an axes object. The axes object with title Thermistor Network Temperature Curve, xlabel Temperature ( toThePowerOf o baseline C ), ylabel Voltage (V) contains 2 objects of type line. These objects represent Ideal Curve, surrogateopt Solution.

surrogateopt stopped because it exceeded the function evaluation limit set by
'options.MaxFunctionEvaluations'.

Using more function evaluations improves the fit slightly.

References

[1] Lyon, Craig K. Genetic algorithm solves thermistor-network component values. EDN Network, March 19, 2008. Available at https://www.edn.com/genetic-algorithm-solves-thermistor-network-component-values/.
