System object: phased.MFSKWaveform
Samples of continuous MFSK waveform
Y = step(sMFSK)
Starting in R2016b, instead of using the
to perform the operation defined by the System object™, you can
call the object with arguments, as if it were a function. For example,
= step(obj,x) and
y = obj(x) perform
equivalent operations. When the only argument to the
is the System object itself, replace
y = step(obj) by
Y = step(sMFSK) returns samples of the
MFSK waveform in a N-by-1 complex valued column
The object performs an initialization the first time the object is executed. This
initialization locks nontunable properties
and input specifications, such as dimensions, complexity, and data type of the input data.
If you change a nontunable property or an input specification, the System object issues an error. To change nontunable properties or inputs, you must first
release method to unlock the object.
Y — Output samples
N-by-1 complex valued vector
Output samples of MFSK waveform, returned as an N-by-1
complex valued vector. When the
step method reaches
the end of the waveform, the output samples wrap around from the start
of the waveform, yielding a periodic waveform.
Construct MFSK Step Output
Construct an MFSK waveform with a sample rate of 1 MHz and a sweep bandwidth of 0.1 MHz. Assume 52 steps, with a step time of 4 milliseconds. Set the frequency offset to 1 kHz. There are 4000 samples per step.
fs = 1e6; fsweep = 1e5; tstep = 40e-4; numsteps = 52; foffset = 1000; noutputsteps = 4; sMFSK = phased.MFSKWaveform('SampleRate',fs,... 'SweepBandwidth',fsweep,... 'StepTime',tstep,... 'StepsPerSweep',numsteps,... 'FrequencyOffset',foffset,... 'OutputFormat','Steps',... 'NumSteps',noutputsteps);
Call the step method to retrieve the samples for the four steps.
z = step(sMFSK);
Plot the real and imaginary parts of the first two steps.
samplesperstep = fs*tstep; disp(samplesperstep)
idx = [1:2*samplesperstep]'; time = idx/fs*1000; plot(time,real(z(idx)),'b',time,imag(z(idx)),'k'); xlabel('Time (millisec)')
Compute the FFT of all the data.
n = size(z,1); nfft = 2^ceil(log2(n)); Y = fftshift(fft(z,nfft));

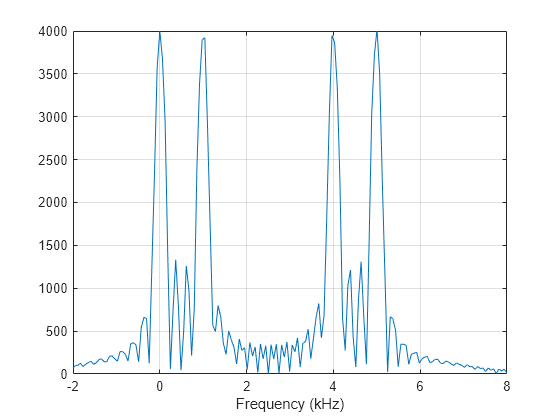

Plot the magnitudes of the spectrum.
fmax = fs/2; ft = [-nfft/2:nfft/2-1]*fmax/(nfft/2); figure(2); hp = plot(ft/1000,abs(Y)); axis([-2,8,-1,4000]); xlabel('Frequency (kHz)') grid
The plot shows two pairs of peaks. The first pair lies at 0 Hz and 1000 Hz. The second pair lies at 4000 Hz and 5000 Hz. The frequency offset is 1000 Hz.
Compute the frequency increase to the second pair off peaks.
fdelta = fsweep/(numsteps/2-1); disp(fdelta)
The increase agrees with the location of the second pair of peaks in the FFT spectrum.
MFSK Samples per Sweep
Construct an MFSK waveform with a sample rate of 1 MHz and a sweep bandwidth of 0.1 MHz. Assume 52 steps with a step time of 400 microseconds. Set the frequency offset to 1 kHz. Find the number of samples returned when the
OutputFormat property is set to return the samples for one sweep.
fs = 1e6; fsweep = 1e5; tstep = 40e-4; numsteps = 52; foffset = 1000; noutputsweeps = 1; sMFSK = phased.MFSKWaveform('SampleRate',fs,... 'SweepBandwidth',fsweep,... 'StepTime',tstep,... 'StepsPerSweep',numsteps,... 'FrequencyOffset',foffset,... 'OutputFormat','Sweeps',... 'NumSweeps',noutputsweeps);
step method to retrieve the samples for the four steps.
z = step(sMFSK);
Count the number of samples in a sweep.
samplespersweep = fs*tstep*numsteps; disp(samplespersweep)
Verify that this value agrees with the number of samples returned by the
Introduced in R2015a
