Using 'Weight' Parameter With rationalfit

This example shows how to use the 'Weight' parameter to improve the quality of the output of rationalfit.

By default, the rationalfit function minimizes the absolute error between the data and the rational function, treating all data points equally. If you want to emphasize some of the data points more than the others, use the 'Weight' parameter.

For example, If the magnitude of the input data has a large dynamic range, it is often useful to be more concerned with the relative error at each data point, rather than the absolute error at each data point, so that the data points with relatively smaller magnitudes are fit accurately. The common way to do this is to set the 'Weight' parameter to 1./abs(data).

To put the example above in practice, follow the steps below.

• Read in the SAW filter data contained in the file sawfilter.s2p, and plot the S21 data.

• Use the rationalfit function to fit a rational function to the S21 data, with the 'Weight' parameter set to its default value, and visually compare the results to the original data.

• Use rationalfit again, this time specifying the 'Weight' parameter to be 1./abs(S21), and see if the result improves.

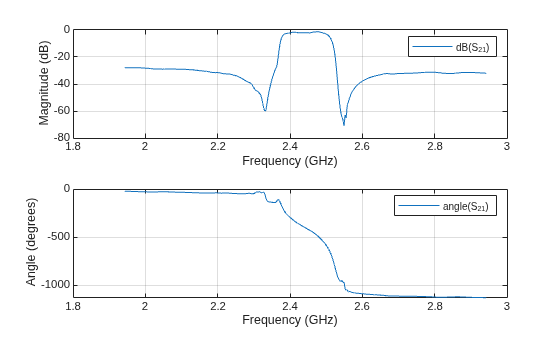

Read and visualize SAW filter S-parameters data.

S = sparameters('sawfilter.s2p');
figure
subplot(2,1,1)
rfplot(S,2,1,'db')
subplot(2,1,2)
rfplot(S,2,1,'angle') Analyze Output of rationalfit When Using Default Value for 'Weight'

Use the rfparam function to extract the S21 values, and then call rationalfit.

s21 = rfparam(S,2,1);
datafreq = S.Frequencies;
defaultfit = rationalfit(datafreq,s21);

Use the freqresp function to calculate the response of the output of rationalfit.

respfreq = 1e9:1.5e6:4e9;
defaultresp = freqresp(defaultfit,respfreq);

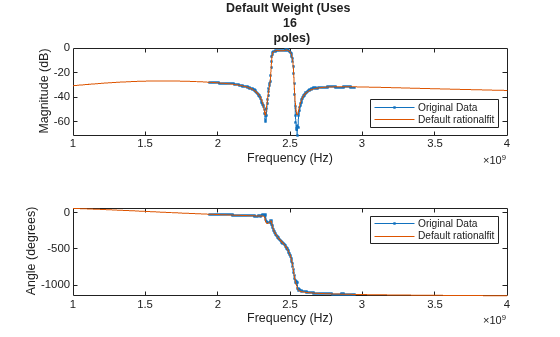

Compare the original data against the frequency response of the default rational function calculated by rationalfit.

subplot(2,1,1)
plot(datafreq,20*log10(abs(s21)),'.-')
hold on
plot(respfreq,20*log10(abs(defaultresp)))
hold off
xlabel('Frequency (Hz)')
ylabel('Magnitude (dB)')
defaultnpoles = numel(defaultfit.A);
defaultstr = ['Default Weight (Uses ',num2str(defaultnpoles),' poles)'];
title(defaultstr)
legend('Original Data','Default rationalfit','Location','best')
subplot(2,1,2)
plot(datafreq,unwrap(angle(s21))*180/pi,'.-')
hold on
plot(respfreq,unwrap(angle(defaultresp))*180/pi)
hold off
xlabel('Frequency (Hz)')
ylabel('Angle (degrees)')

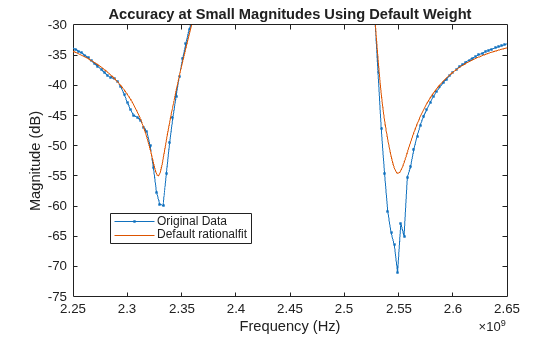

legend('Original Data','Default rationalfit','Location','best') While the output of rationalfit is not awful, it does not match the regions in the data that are very small in magnitude.

figure
plot(datafreq,20*log10(abs(s21)),'.-')
hold on
plot(respfreq,20*log10(abs(defaultresp)))
hold off
axis([2.25e9 2.65e9 -75 -30])
xlabel('Frequency (Hz)')
ylabel('Magnitude (dB)')
title('Accuracy at Small Magnitudes Using Default Weight')
legend('Original Data','Default rationalfit','Location','best') Using the 'Weight' parameter to make that data relatively more important can help the accuracy of the fit.

Analyze Output of rationalfit When Using Custom Value for 'Weight'

By using a 'Weight' of 1./abs(s21), rationalfit minimizes the relative error of the system, instead of the absolute error of the system.

customfit = rationalfit(datafreq,s21,'Weight',1./abs(s21));
Warning: Achieved only -39.7 dB accuracy with 48 poles, not -40.0 dB.  Consider specifying a larger number of poles using the 'NPoles' parameter.
customresp = freqresp(customfit,respfreq);

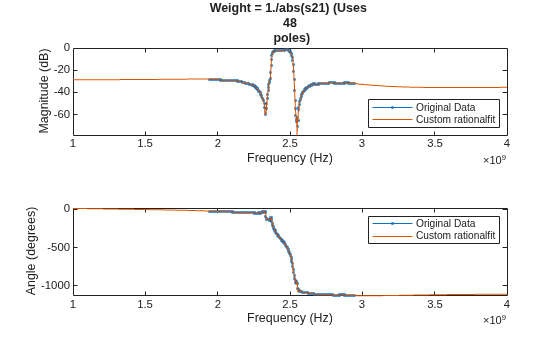

Compare the original data against the frequency response of the custom rational function calculated by rationalfit.

figure
subplot(2,1,1)
plot(datafreq,20*log10(abs(s21)),'.-')
hold on
plot(respfreq,20*log10(abs(customresp)))
hold off
xlabel('Frequency (Hz)')
ylabel('Magnitude (dB)')
customnpoles = numel(customfit.A);
customstr = ['Weight = 1./abs(s21) (Uses ',num2str(customnpoles),' poles)'];
title(customstr)
legend('Original Data','Custom rationalfit','Location','best')
subplot(2,1,2)
plot(datafreq,unwrap(angle(s21))*180/pi,'.-')
hold on
plot(respfreq,unwrap(angle(customresp))*180/pi)
hold off
xlabel('Frequency (Hz)')
ylabel('Angle (degrees)')

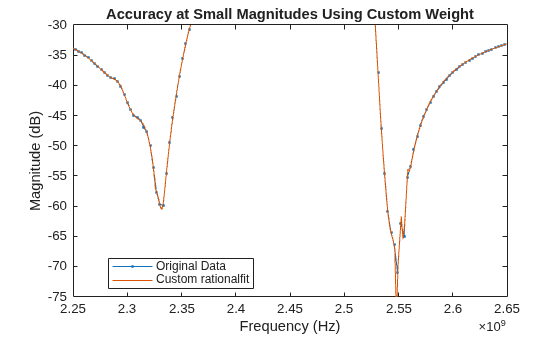

legend('Original Data','Custom rationalfit','Location','best') The plot shows that the custom 'Weight' parameter created a better fit for the data points with smaller magnitudes.

figure
plot(datafreq,20*log10(abs(s21)),'.-')
hold on
plot(respfreq,20*log10(abs(customresp)))
hold off
axis([2.25e9 2.65e9 -75 -30])
xlabel('Frequency (Hz)')
ylabel('Magnitude (dB)')
title('Accuracy at Small Magnitudes Using Custom Weight')
legend('Original Data','Custom rationalfit','Location','best')
