CEI 56G-LR Compliance Kit

R2026b
Open Live Script

Characterize and validate the performance of a CEI 56G-LR channel design.

CEI 56G-LR is a common electrical interface (CEI) implementation agreement (IA) that supports 56 Gb/s over "Long Reach" (LR) chip-to-chip applications. The CEI-56G-LR Clause is part of the Common Electrical I/O 4.0 Implementation Agreement.

This kit is designed for analysis of a backplane based channel designs between module boards. The channel model is based on two module boards connected with two mated connectors with PCB traces.

This kit enables you to insert a user defined channel design and characterize and validate its performance using the specification defined masks to determine if the channel has a high confidence of success. If the channel does not meet the compliance masks, COM, or BER estimates, further investigation or redesign, along with simulation, will need to be performed to determine possible changes to meet compliance.

Open CEI 56G-LR Kit

Open the CEI 56G-LR kit in the Serial Link Designer app using the openSignalIntegrityKit function.

openSignalIntegrityKit("CEI_56G_LR");


Kit Overview

  • Project Name: CEI_56G_LR

  • Interface Name: CEI_56G_LR

  • Supported Data Rate Range: From 36 Gb/s to 58 Gb/s (UI = 55.55 ps to 34.48 ps)

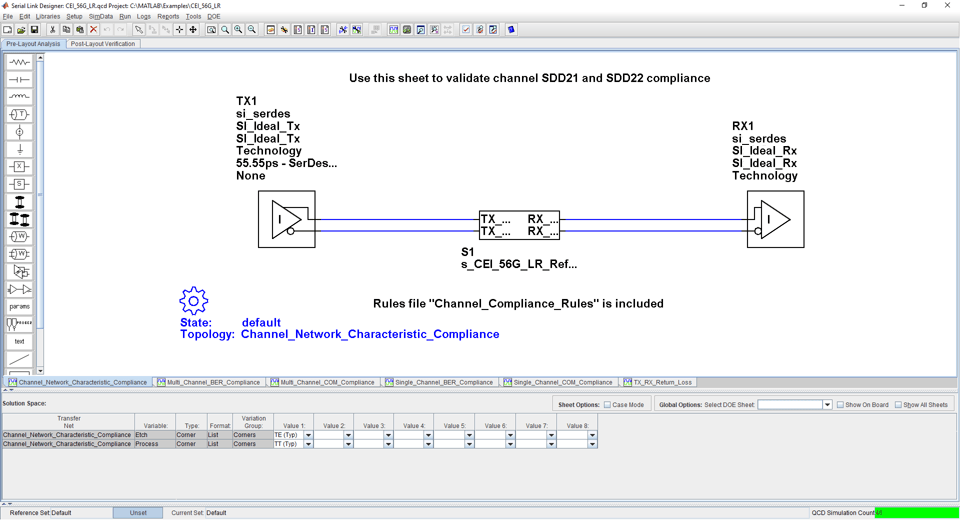

The CEI 56G-LR kit defines one schematic set. Schematic sheets are included for testing a CEI 56G-LR channel in the form of an S-parameter model. The model represents two mated connectors, a backplane and two plug-in cards. The masks defined for channel losses provided in this kit are given in the CEI 56G-LR specification [1].

  • Default – Schematic sheets focused on channel characterization and BER compliance.

For more information about the CEI 56G-LR channel compliance schematics, transfer net properties, and compliance rules, refer to the document CEI_56G_LR.pdf located inside the kit project directory.

References

[1] Common Electrical I/O (CEI) - Electrical and Jitter Interoperability agreements for 6G+ bps, 11G+ bps, 25G+ bps I/O and 56G+ bps. OIF-CEI-04.0.pdf

[2] Common Electrical I/O (CEI) - Electrical and Jitter Interoperability. IA # OIF-CEI-03.1. February 18, 2014.
