removeRule

Class: slcoverage.Filter
Package: slcoverage

Remove rule from filter rule set

Syntax

result = removeRule(filter,rule)


Description

result = removeRule(filter,rule) removes the filter rule from the specified filter.

Input Arguments

filter — Filter object to remove rule from

slcoverage.Filter object

Filter object to remove the rule from, specified as an slcoverage.Filter object.

rule — Rule to remove from the filter

slcoverage.FilterRule object

Rule to remove from the filter, specified as an slcoverage.FilterRule object.

Output Arguments

result — Rule removal result

logical

Rule removal result, returned as 0 or 1.

Examples

Remove Rules from Filter Objects

Create a block selector, a filter, and a rule for the selector. Add rules to the filter. Then, remove a rule from a filter.

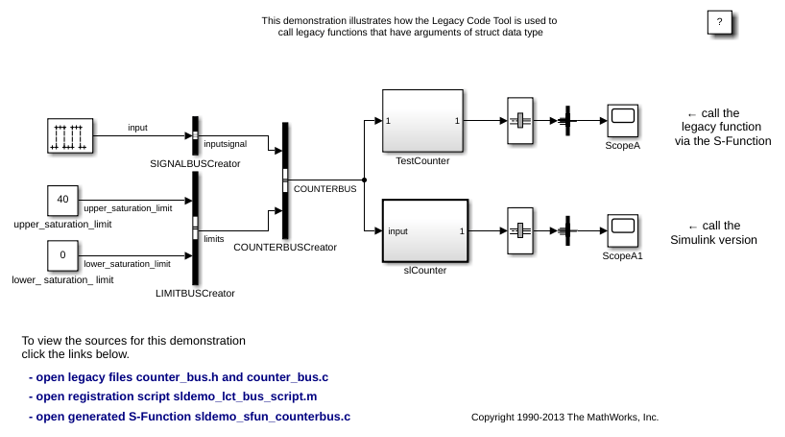

Open the model. Specify coverage settings and turn on coverage recording.

modelName = 'sldemo_lct_bus';
open_system(modelName);
set_param(modelName,'CovMetricStructuralLevel','MCDC','RecordCoverage','on');

Create two BlockSelector objects, bl and bl1.

bl = slcoverage.BlockSelector(slcoverage.BlockSelectorType.BlockType,'RelationalOperator');
id = Simulink.ID.getSID('sldemo_lct_bus/slCounter/And');
bl1 = slcoverage.BlockSelector(slcoverage.BlockSelectorType.BlockInstance,id);

Create a filter object, create two rule objects, and add each rule to the filter object.

filt = slcoverage.Filter;
rule = slcoverage.FilterRule(bl,'Tested elsewhere',slcoverage.FilterMode.Exclude);
rule1 = slcoverage.FilterRule(bl1,'Value is never greater than 0');
filt.addRule(rule);
filt.addRule(rule1);

Review the rules. Look the first rule in the array.

fi = filt.rules
fi(1)

fi =

  1×2 FilterRule array with properties:

    Selector
    Mode
    Rationale

ans =

  FilterRule with properties:

     Selector: [1×1 slcoverage.BlockSelector]
         Mode: Exclude
    Rationale: 'Tested elsewhere'

Remove the first rule that you added. Then review the rules to see that the first rule that you added is removed.

filt.removeRule(rule);
fi = filt.rules

fi =

  FilterRule with properties:

     Selector: [1×1 slcoverage.BlockSelector]
         Mode: Justify
    Rationale: 'Value is never greater than 0'
