Optical Flow

Estimate object velocities

  • Optical Flow block

Libraries:
Computer Vision Toolbox / Analysis & Enhancement

Description

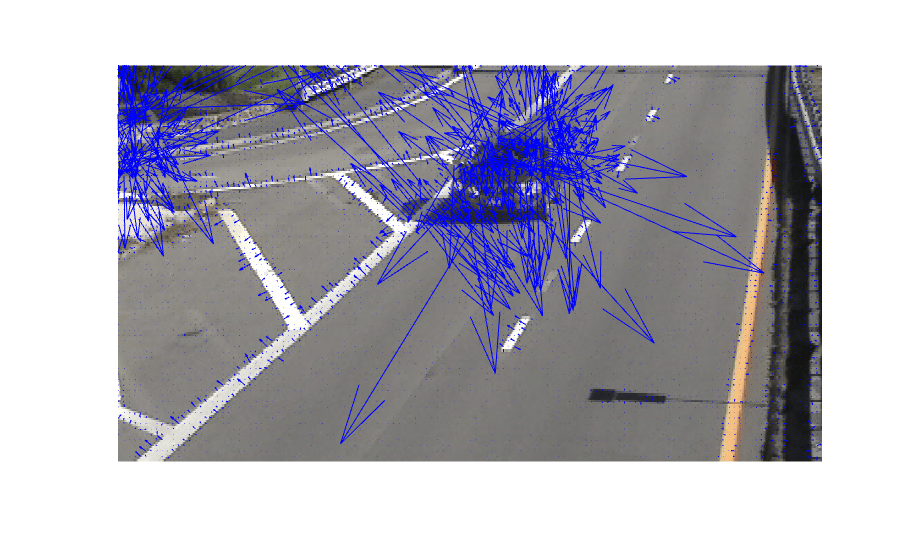

The Optical Flow block estimates the direction and speed of object motion between two images or between one video frame to another frame using either the Horn-Schunck or the Lucas-Kanade method.

Ports

Input

expand all

Image or video frame, specified as a scalar, vector, or matrix. If the Compute optical flow between parameter is set to Two images, the name of this port changes to I1.

Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64 | fixed point

Image or video frame, specified as a scalar, vector, or matrix.

Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64 | fixed point

Output

expand all

Velocity magnitudes, returned as a scalar, vector, or matrix.

Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64 | fixed point

Velocity components in complex form, specified as a scalar, vector, or matrix.

Dependencies

To enable this port, set the Velocity output parameter to Horizontal and vertical components in complex form.

Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64 | fixed point

Parameters

expand all

Main Tab

Select the method to use to calculate the optical flow. Options include Horn-Schunck or Lucas-Kanade.

Select how to compute the optical flow. Select Two images to compute the optical flow between two images. Select Current frame and N-th frame back to compute the optical flow between two video frames that are N frames apart.

Dependencies

To enable this parameter, set the:

  • Method parameter to Horn-Schunck

  • Method parameter to Lucas-Kanade and the Temporal gradient filter to Difference filter [-1 1]

Enter a scalar value that represents the number of frames between the reference frame and the current frame.

Dependencies

To enable this parameter, set the Compute optical flow between parameter to Current frame and N-th frame back.

Specify the smoothness factor. Enter a large positive scalar value for high relative motion between the two images or video frames. Enter a small positive scalar value for low relative motion.

Dependencies

To enable this parameter, set the Method parameter to Horn-Schunck.

Specify the method to control when the block's iterative solution process stops. If you want the process to stop when the velocity difference is below a certain threshold value, select When velocity difference falls below threshold. If you want the process to stop after a certain number of iterations, choose When maximum number of iterations is reached. You can also select Whichever comes first.

Dependencies

To enable this parameter, set the Method parameter to Horn-Schunck.

Specify the maximum number of iterations for the block to perform.

Dependencies

To enable this parameter, set the Method parameter to Horn-Schunck and the Stop iterative solution parameter to When maximum number of iterations is reached or Whichever comes first.

Specify how to output an optical flow. If you select Magnitude-squared, the block outputs an optical flow matrix where each element is in the form u2+v2. If you select Horizontal and vertical components in complex form, the block outputs the optical flow matrix where each element is in the form u+jv.

Specify whether the block solves for u and v using a difference filter or a derivative of a Gaussian filter.

Dependencies

To enable this parameter, set the Method parameter to Lucas-Kanade.

Specify the number of input frames to buffer for smoothing. Use this parameter for temporal filter characteristics such as the standard deviation and number of filter coefficients.

Dependencies

To enable this parameter, set the Temporal gradient filter parameter to Derivative of Gaussian.

Specify the standard deviation for the image smoothing filter.

Dependencies

To enable this parameter, set the Temporal gradient filter parameter to Derivative of Gaussian.

Specify the standard deviation for the gradient smoothing filter.

Dependencies

To enable this parameter, set the Temporal gradient filter parameter to Derivative of Gaussian.

Select this parameter to set the motion vector to zero when the optical flow constraint equation is ill-conditioned.

Dependencies

To enable this parameter, set the Temporal gradient filter parameter to Derivative of Gaussian.

Select this parameter to output the image that corresponds to the motion vector outputted by the block.

Dependencies

To enable this parameter, set the Temporal gradient filter parameter to Derivative of Gaussian.

Specify a scalar value that determines the motion threshold between each image or video frame. The higher the number, the less small movements impact the optical flow calculation.

Dependencies

To enable this parameter, set the Method parameter to Lucas-Kanade.

Data Types Tab

For details on the fixed-point block parameters, see Specify Fixed-Point Attributes for Blocks (DSP System Toolbox).

Block Characteristics

Data Types

double | single

Multidimensional Signals

no

Variable-Size Signals

no

Algorithms

expand all

Extended Capabilities

C/C++ Code Generation
Generate C and C++ code using Simulink® Coder™.

Fixed-Point Conversion
Design and simulate fixed-point systems using Fixed-Point Designer™.

Version History

Introduced before R2006a
