generatePatches

Class: Aero.Body
Namespace: Aero

Generate patches for body with loaded face, vertex, and color data

Syntax

generatePatches(h,ax)


Description

generatePatches(h,ax) generates patches for the animation body object h using the loaded face, vertex, and color data in axes object, ax.

Input Arguments

h — Aerospace body object

Aero.Body object

Aerospace body object, specified as an Aero.Body object.

ax — Axes object

Axes object

Axes object.

Examples

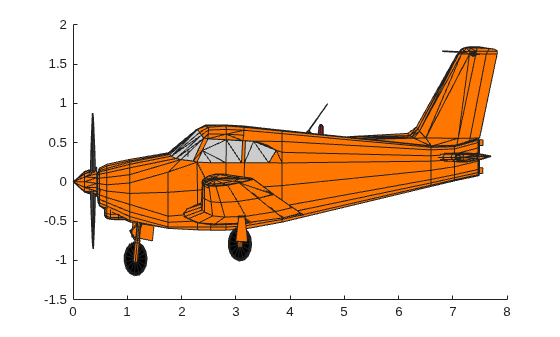

Generate Patches

Generate patches for the body object b using the axes, ax.

b=Aero.Body;
b.load('pa24-250_orange.ac','Ac3d');
f = figure;
ax = axes;
b.generatePatches(ax);

Version History

Introduced in R2007a
