This example shows how to design a compensator for a plant with time delays using Control System Designer.
When working with time delay systems it is advantageous to work with analysis and design tools that directly support time delays so that performance and stability can be evaluated exactly. However, many control design techniques and algorithms cannot directly handle time delays. A common workaround consists of replacing delays by their Pade approximations (all-pass filters). Because this approximation is only valid at low frequencies, it is important to choose the right approximation order and check the approximation validity.
Control System Designer provides a variety of design and analysis tools. Some of these tools support time delays exactly while others support time delays indirectly through approximations. Use these tools to design compensators for your control system and visualize the compromises made when using approximations.
For this example, which uses a unity feedback configuration, the plant model has a time delay:
Create the plant model.
G = tf(1,[1,1],'InputDelay',0.5);
In the app, the following tools support time delays directly:
Bode and Nichols Editors
Time Response Plots
Frequency Response Plots

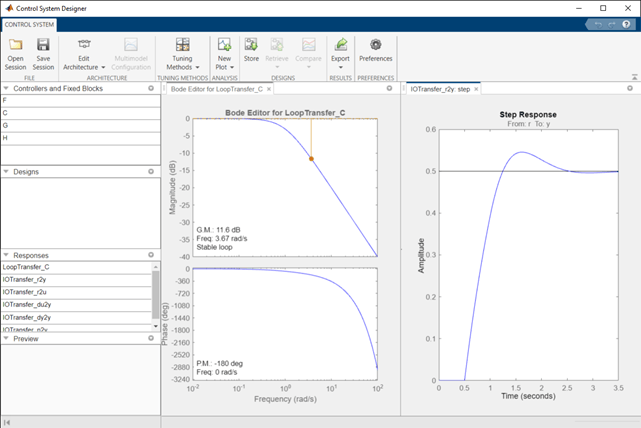

Open Control System Designer, importing the plant model and using a Bode editor configuration.
The phase response of the Bode plot shows the roll-off effect from the exact representation of the delay. The beginning of the step response shows an exact representation of the 0.5 second delay.

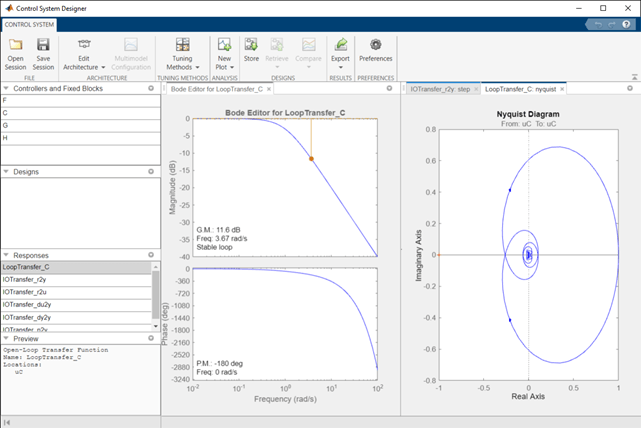

Open a Nyquist plot of the open-loop response. In the Data Browser, right-click
LoopTransfer_C, and select Plot > nyquist.
The Nyquist response wrapping around the origin in a spiral fashion is the result of the exact representation of the time delay.
In the app, the following tools approximate time delays:
Root Locus Editor
Many of the automated tuning methods
When using approximations, the results are not exact and depend on the validity of the approximation. Each tool in Control System Designer provides a warning pane to indicate when time-delays are approximated.

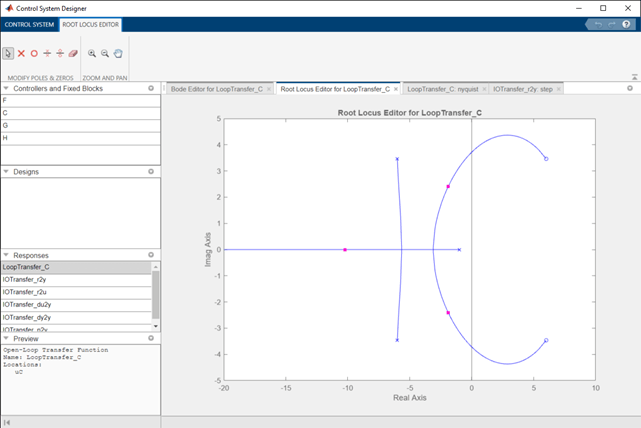

Open a root locus editor plot for the open-loop response. Click Tuning Methods, and select Root Locus Editor. In the Select Response to Edit dialog box, click Plot.
The Root Locus Editor shows a notification that the plot is using a time delay approximation. This notification can be minimized by clicking on the arrow icon to the left.
To change the approximation settings, click the hyperlink in the notification. In the Control System Designer Preferences dialog box, on the Time Delays tab, specify a Pade order of
4. Alternatively, you can set the bandwidth over which you want the approximation to be accurate.

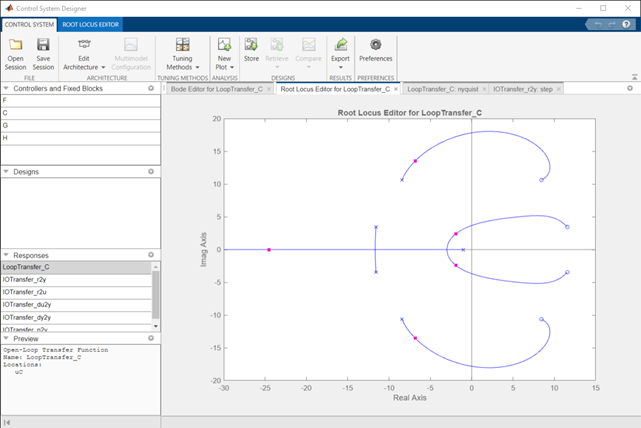

The higher-order Pade approximation adds poles and zeros to the root locus plot.
