Linearize Simulink Model to a Sparse Second-Order Model Object

This example shows how to linearize a Simulink Model to obtain a sparse second-order model object (mechss). The Simulink model sparseSOSimulinkModel.slx contains a plant modeled using a Sparse Second Order block connected in a feedback loop with a PID controller and an actuator and sensor. The sensor and actuator are modeled using transfer functions. You need a Simulink Control Design license to perform linearization.

For more information on sparse models, see Sparse Model Basics.

Load the model data contained in linData.mat and open the Simulink model.

mdl = 'sparseSOSimulinkModel';

Next, construct the linearization I/O settings using linio (Simulink Control Design) and linearize the Simulink model.

sys_io(1) = linio('sparseSOSimulinkModel/Controller',1,'input');
sys_io(2) = linio('sparseSOSimulinkModel/Actuator',1,'output');
sys = linearize(mdl,sys_io)
Sparse continuous-time second-order model with 1 outputs, 1 inputs, and 3415 nodes.

Use "spy" and "showStateInfo" to inspect model structure.
Type "properties('mechss')" for a list of model properties.
Type "help mechssOptions" for available solver options for this model.

The resultant linearized model sys is a mechss model object with 3415 nodes, 1 input and 1 output.

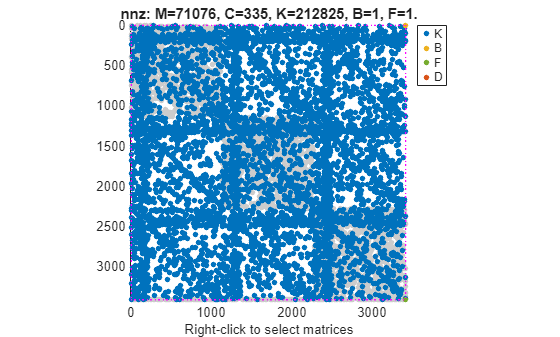

You can use spy to visualize the sparsity of the sparse model. Right-click on the plot to switch to select the matrices to be displayed.


Use showStateInfo to view the partition information of the sparse second-order model sys.

The state groups are:

    Type                  Name                Size
  Component                                      5
  Component    sparseSOSimulinkModel/Plant    3408
  Signal                                         2

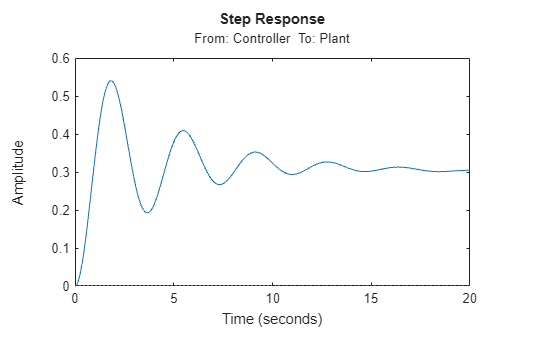

Examine the step response of the sparse second-order model. You must specify the final time or the time vector for sparse models.

t = 0:0.01:20;
