## Fit Sigmoidal Models

*Sigmoidal models* are S-shaped curves that are commonly used
to model dose-response curves and population dynamics. These models are also used
in many artificial neural networks as activation functions. Curve Fitting Toolbox™ supports logistic, 4-parameter logistic, and Gompertz sigmoidal
models with the following equations.

Sigmoidal Model | Equation |
---|---|

Logistic | $$f(x)=\frac{a}{1+{e}^{-b(x-c)}}$$ |

4-parameter logistic | $$f(x)=d+\frac{a-d}{1+{\left(\frac{x}{c}\right)}^{b}}$$ |

Gompertz | $$f(x)=d+(a-d){e}^{-{e}^{-b(x-c)}}$$ |

In these equations, *a* and *d*
are parameters for the horizontal asymptotes, and *b* is a growth
rate parameter. For a 4-parameter logistic model, the input data
*x* must contain all positive or all negative elements, and
*c* is the midpoint between the horizontal asymptotes. For
a Gompertz model, *c* is the inflection point for the curve. For
a logistic model, *c* is both the midpoint and the inflection
point.

### Fit Sigmoidal Model Using Curve Fitter App

Generate data with added noise by using the `linspace`

, `exp`

, and `randn`

functions, and the standard logistic function $$p(x)=\frac{1}{1+{e}^{-x}}$$. *p*, which is bounded between 0 and 1, represents the probability of an event occurring given the input *x*.

rng(0,"twister") % For reproducibility x = linspace(-5,5,100)'; p = 1./(1+exp(-x)) + 0.02*randn(100,1); p(p>1) = 1; p(p<0) = 0;

Open the Curve Fitter app from the command line.

curveFitter

Alternatively, on the **Apps** tab, in the **Math, Statistics, and Optimization** group of the apps gallery, click **Curve Fitter**.

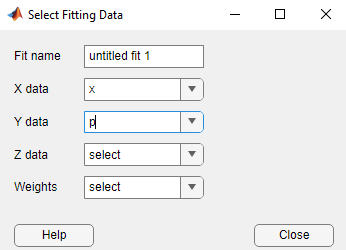

In the app, select the data variables for the fit. On the **Curve Fitter** tab, in the **Data** section, click **Select Data**. In the Select Fitting Data dialog box, select `x`

as the **X data** value and `p`

as the **Y data** value.

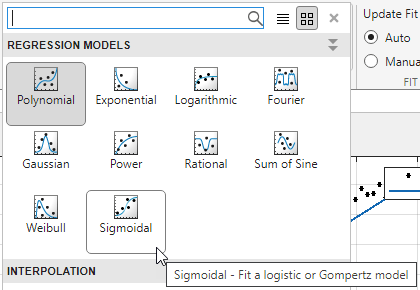

The app plots the data points as you select variables. By default, the app fits a linear polynomial to the data. To fit a sigmoidal model, click `Sigmoidal`

in the **Fit Type** gallery of the Curve Fitter tab.

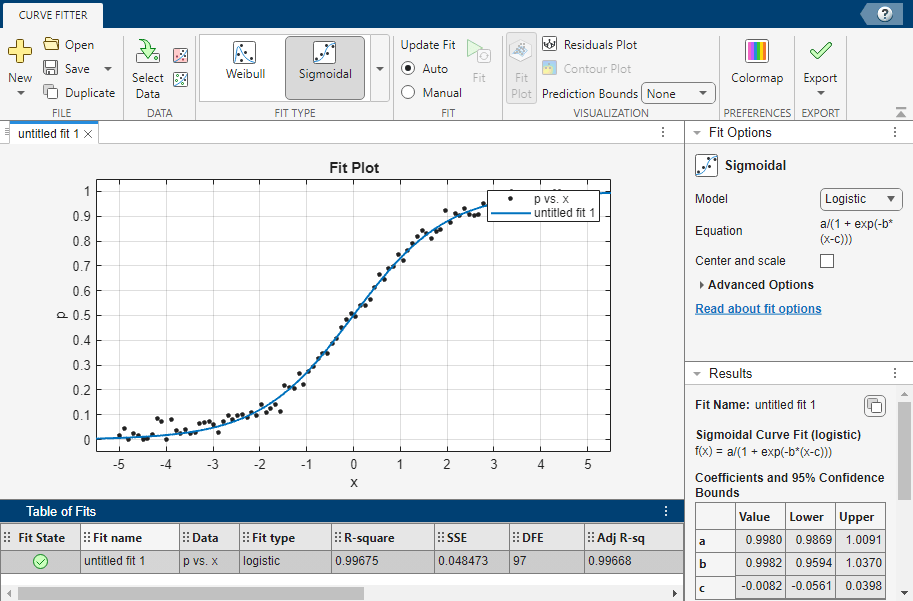

By default, the app plots a logistic model.

The plot shows that the logistic fit follows the bulk of the data. The probability is small for negative values of `x`

, then increases, and then plateaus around 1. The **Table of Fits** shows the goodness-of-fit statistics for the logistic model, including the sum of squares error (SSE) of approximately 0.048, and the R-square value of approximately 1. The **Results** pane also displays the model equation and the fitted coefficients with 95% confidence bounds.

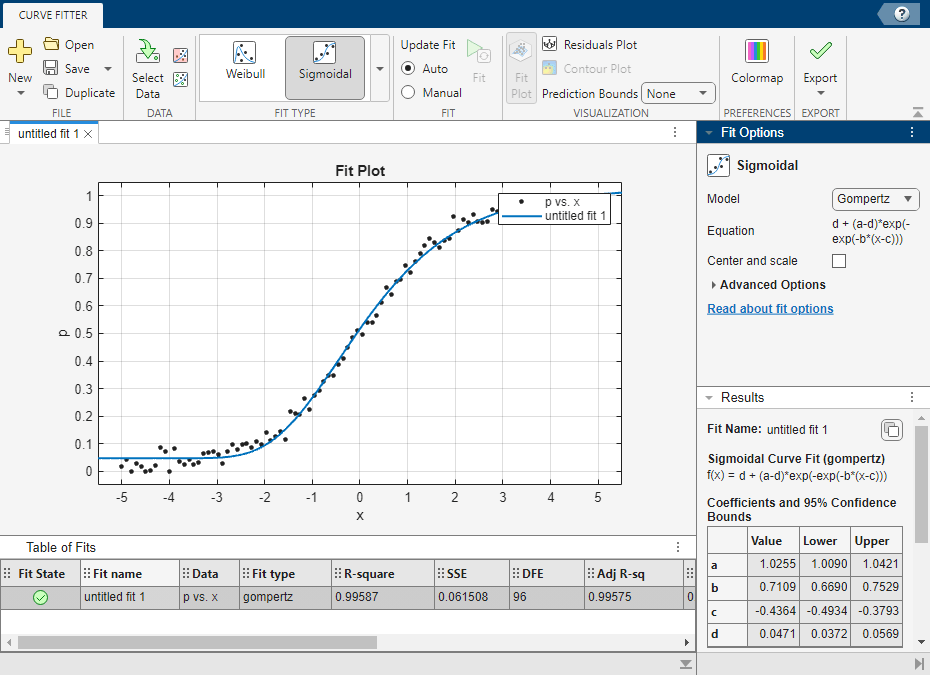

To use a different model equation, select a different model name from the **Model** menu in the **Fit Options** pane. For example, you can select a Gompertz model.

The plot shows that the lower asymptote for the Gompertz curve is greater than zero. The **Table of Fits** shows that this fit has a larger SSE value and a slightly smaller R-square value compared to the logistic fit. This result is due to the data being generated from a Gompertz function rather than a logistic function.

### Fit Sigmoidal Model at Command Line

Generate data with added noise by using the `linspace`

, `tanh`

, and `randn`

functions.

rng(0,"twister") % For reproducibility pts = linspace(-5,5,100)'; x = linspace(1,11,100)'; y = tanh(pts)+0.1*randn(100,1);

The vector `x`

contains data for the independent variable, and the vector `y`

contains data for the dependent variable.

Use the `scatter`

function to create a scatter plot of the data in `x`

and `y`

.

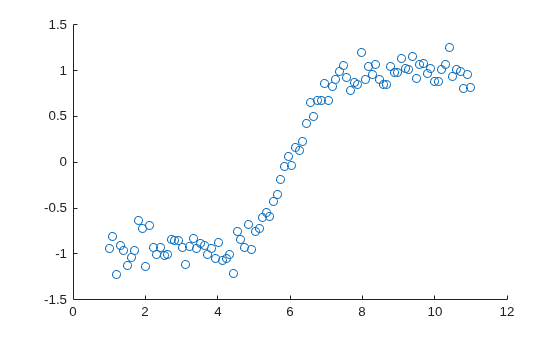

scatter(x,y)

The scatter plot shows that `y`

contains positive and negative values, `x`

contains all positive values, and the data follows an S-shape.

Fit a 4-parameter logistic model to `x`

and `y`

.

`f = fit(x,y,'logistic4')`

f = General model Logistic4: f(x) = d + (a-d)/(1 + (x/c)^b) Coefficients (with 95% confidence bounds): a = -0.9507 (-0.989, -0.9125) b = 12.93 (11.14, 14.72) c = 6.013 (5.94, 6.086) d = 1.003 (0.9608, 1.046)

`f`

is a `cfit`

object that contains the results of fitting a 4-parameter logistic model to the data.

Plot `f`

together with `x`

and `y`

.

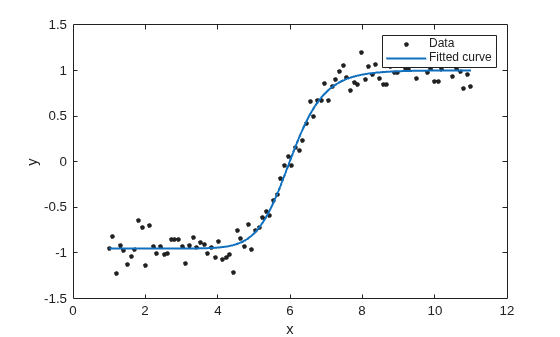

plot(f,x,y)

The plot shows that the fitted curve `f`

follows the bulk of the data.

## References

[1] Tjørve, Kathleen M.
C., and Even Tjørve. “The Use of Gompertz Models in Growth Analyses, and New
Gompertz-Model Approach: An Addition to the Unified-Richards Family.”
*PLOS ONE*, edited by Roeland M.H.
Merks, vol. 12, no. 6, June 2017, p. e0178691. *DOI.org (Crossref)*,
https://doi.org/10.1371/journal.pone.0178691.
