Flatten layer

Since R2024b

•

Flatten Layer block

To add a block to a model, double-click the canvas and start typing the block name. Then, select the block from the list.

Libraries:
Deep Learning Toolbox / Deep Learning Layers / Sequence Layers

Description

The Flatten Layer block collapses the spatial dimensions of layer input into the channel dimension.

For example, if the input to the layer is an H-by-W-by-C-by-N-by-S array (sequences of images), then the flattened output is an (H*W*C)-by-N-by-S array.

The exportNetworkToSimulink function generates this block to represent a flattenLayer object.

Examples

Export Neural Network to Simulink as Layer Blocks

Export a trained neural network to Simulink^® as layer blocks.

For most workflows, you do not need to create neural networks in Simulink. Instead, import or train a neural network in MATLAB^® and export it to Simulink.

Suppose that you have a trained neural network net specified as a dlnetwork object. Export the network to Simulink using the exportNetworkToSimulink function.

mdlInfo = exportNetworkToSimulink(net)

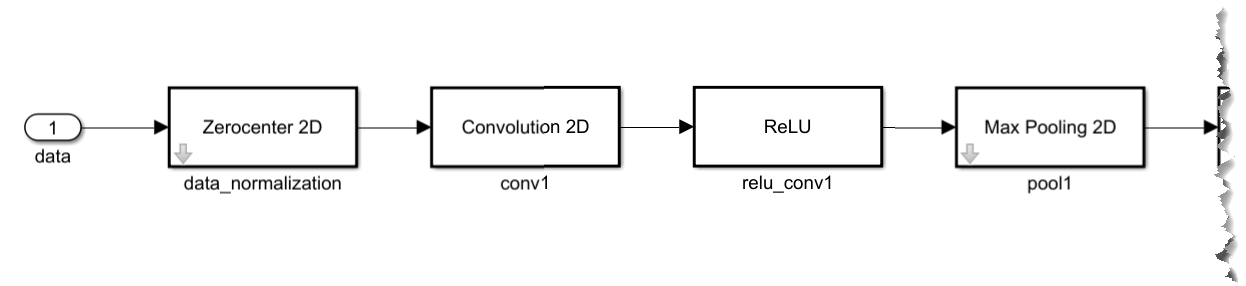

The exported Simulink model represents the neural network as a subsystem. To view the layer blocks, open the subsystem. This example shows the first few blocks of a neural network.

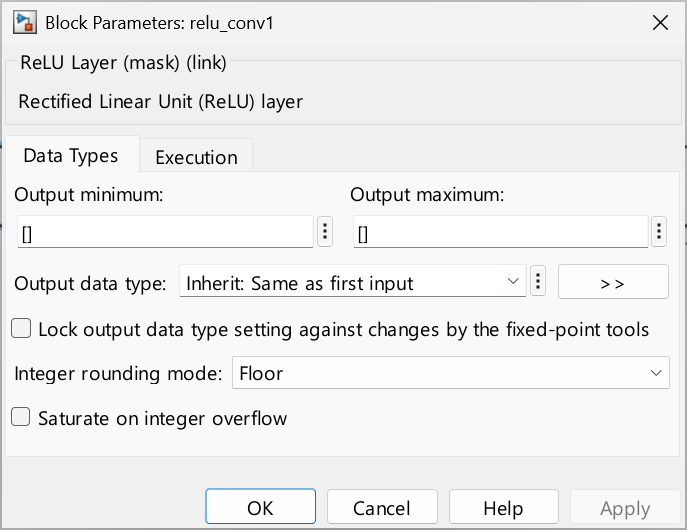

To view and edit the layer block parameters, open the corresponding layer block mask. This example shows the parameters for the ReLU block.

Using the layer block parameters, you can configure aspects like data types and execution options like sample times.

Ports

Input

Port_1 — Input data

array

Input data to flatten.

Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64 | fixed point

Output

Port_1 — Flattened output data

array

Flattened output data. The output data collapses the spatial dimensions of the input data into the channel dimension.

Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64 | fixed point

Parameters

To edit block parameters interactively, use the Property Inspector. From the Simulink Toolstrip, on the Simulation tab, in the Prepare gallery, select Property Inspector.

Main

Flattened output size — Size of flattened output matrix

[1 1 1] (default) | array of positive scalars

Size of the flattened output matrix, specified as an array of positive scalars. To determine the activation output of a flattenLayer object, you can use the analyzeNetwork function and ignore the batch (B) dimension.

Programmatic Use

Block Parameter: FlattenedOutputSize

Type: array

Values: [1 1 1] | '<array>'

Default: '[1 1 1]'

Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64

Execution

Sample time — Option to specify sample time

-1 (default) | scalar

Specify the discrete interval between sample time hits or specify another type of sample time, such as continuous (0) or inherited (-1). For more options, see Types of Sample Time (Simulink).

By default, the block inherits its sample time based on the context of the block within the model.

Programmatic Use

To set the block parameter value programmatically, use the set_param (Simulink) function.

Parameter: SampleTime

Data Types: char

Values: '-1' | scalar

Default: '-1'

Extended Capabilities

C/C++ Code Generation
Generate C and C++ code using Simulink® Coder™.

Version History

Introduced in R2024b
