importONNXFunction

Import pretrained ONNX network as a function

Since R2020b

    Description

    example

    params = importONNXFunction(modelfile,NetworkFunctionName) imports an Open Neural Network Exchange ONNX™ network from the file modelfile and returns an ONNXParameters object (params) that contains the network parameters. The function also creates a model function with the name specified by NetworkFunctionName that contains the network architecture. For more information about the network function, see Imported ONNX Model Function.

    Use the ONNXParameters object and the NetworkFunctionName model function to perform common deep learning tasks, such as image and sequence data classification, transfer learning, object detection, and image segmentation. importONNXFunction is useful when you cannot import the network using the importNetworkFromONNX function (for example, importONNXFunction can import YOLOv3) or if you want to define your own custom training loop (for more details, see Train Network Using Custom Training Loop).

    This function requires the Deep Learning Toolbox™ Converter for ONNX Model Format support package. If this support package is not installed, then the function provides a download link.

    Examples

    collapse all

    Import an ONNX network as a function. You can use the imported model function for deep learning tasks, such as prediction and transfer learning.

    Download and install the Deep Learning Toolbox Converter for ONNX Model Format support package. You can enter importONNXFunction at the command line to check if the support package is installed. If it is not installed, then the function provides a link to the required support package in the Add-On Explorer. To install the support package, click the link, and then click Install.

    Specify the file to import as shufflenet with operator set 9 from the ONNX Model Zoo. shufflenet is a convolutional neural network that is trained on images from the ImageNet database.

    modelfile = "shufflenet-9.onnx";

    Import the network as a function to generate a model function that you can readily use for deep learning tasks.

    params = importONNXFunction(modelfile,"shufflenetFcn")
    Function containing the imported ONNX network architecture was saved to the file shufflenetFcn.m.
    To learn how to use this function, type: help shufflenetFcn.

    params =
      ONNXParameters with properties:

                 Learnables: [1x1 struct]
              Nonlearnables: [1x1 struct]
                      State: [1x1 struct]
              NumDimensions: [1x1 struct]
        NetworkFunctionName: 'shufflenetFcn'



    importONNXFunction returns the ONNXParameters object params, which contains the network parameters, and the model function shufflnetFcn, which contains the network architecture. importONNXFunction saves shufflenetFcn in the current folder. You can open the model function to view or edit the network architecture by using open shufflenetFcn.

    Deep Learning Toolbox Converter for ONNX Model Format also provides the importNetworkFromONNX function, which you can use to import a pretrained ONNX network.

    Import an ONNX network as a function, and use the pretrained network to predict the class label of an input image.

    Specify the file to import as shufflenet with operator set 9 from the ONNX Model Zoo. shufflenet is a convolutional neural network that is trained on more than a million images from the ImageNet database. As a result, the network has learned rich feature representations for a wide range of images. The network can classify images into 1000 object categories, such as keyboard, mouse, pencil, and many animals.

    modelfile = 'shufflenet-9.onnx';

    Import the pretrained ONNX network as a function by using importONNXFunction, which returns the ONNXParameters object params. This object contains the network parameters. The function also creates a new model function in the current folder that contains the network architecture. Specify the name of the model function as shufflenetFcn.

    params = importONNXFunction(modelfile,'shufflenetFcn');
    A function containing the imported ONNX network has been saved to the file shufflenetFcn.m.
    To learn how to use this function, type: help shufflenetFcn.


    Read the image you want to classify and display the size of the image. The image is 792-by-1056 pixels and has three color channels (RGB).

    I = imread('peacock.jpg');
    size(I)
    ans = 1×3

             792        1056           3

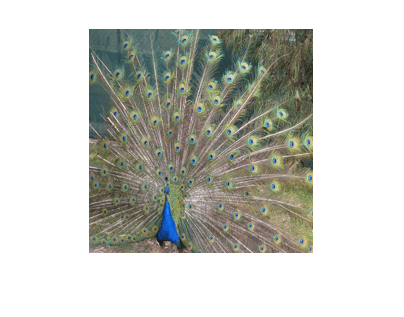

    Resize the image to the input size of the network. Show the image.

    I = imresize(I,[224 224]);
    imshow(I)

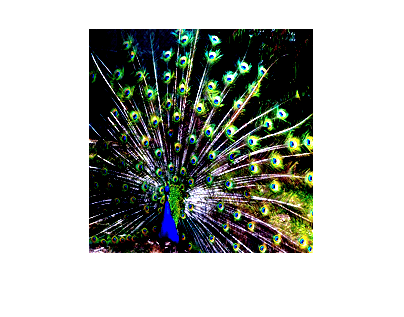

    The inputs to shufflenet require further preprocessing (for more details, see ShuffleNet in ONNX Model Zoo). Rescale the image. Normalize the image by subtracting the training images mean and dividing by the training images standard deviation.

    I = rescale(I,0,1);

    meanIm = [0.485 0.456 0.406];
    stdIm = [0.229 0.224 0.225];
    I = (I - reshape(meanIm,[1 1 3]))./reshape(stdIm,[1 1 3]);

    imshow(I)

    Import the class names from squeezenet, which is also trained with images from the ImageNet database.

    net = squeezenet;
    ClassNames = net.Layers(end).ClassNames;

    Calculate the class probabilities by specifying the image to classify I and the ONNXParameters object params as input arguments to the model function shufflenetFcn.

    scores = shufflenetFcn(I,params);

    Find the class index with the highest probability. Display the predicted class for the input image and the corresponding classification score.

    indMax = find(scores==max(scores));
    ClassNames(indMax)
    ans = 1×1 cell array
        {'peacock'}


    scoreMax = scores(indMax)
    scoreMax = 0.7517


    Import the SqueezeNet convolution neural network as a function and fine-tune the pretrained network with transfer learning to perform classification on a new collection of images.

    This example uses several helper functions. To view the code for these functions, see Helper Functions.

    Unzip and load the new images as an image datastore. imageDatastore automatically labels the images based on folder names and stores the data as an ImageDatastore object. An image datastore enables you to store large image data, including data that does not fit in memory, and efficiently read batches of images during training of a convolutional neural network. Specify the mini-batch size.

    unzip("MerchData.zip");
    miniBatchSize = 8;
    imds = imageDatastore("MerchData", ...
        IncludeSubfolders=true, ...
        LabelSource="foldernames", ...
        ReadSize=miniBatchSize);

    This data set is small, containing 75 training images. Display some sample images.

    numImages = numel(imds.Labels);
    idx = randperm(numImages,16);
    figure
    for i = 1:16
        subplot(4,4,i)
        I = readimage(imds,idx(i));
        imshow(I)
    end

    Extract the training set and one-hot encode the categorical classification labels.

    XTrain = readall(imds);
    XTrain = single(cat(4,XTrain{:}));
    YTrain_categ = categorical(imds.Labels);
    YTrain = onehotencode(YTrain_categ,2)';

    Determine the number of classes in the data.

    classes = categories(YTrain_categ);
    numClasses = numel(classes)
    numClasses = 5


    SqueezeNet is a convolutional neural network that is trained on more than a million images from the ImageNet database. As a result, the network has learned rich feature representations for a wide range of images. The network can classify images into 1000 object categories, such as keyboard, mouse, pencil, and many animals.

    Import the pretrained SqueezeNet network as a function.

    squeezenetONNX()
    params = importONNXFunction("squeezenet.onnx","squeezenetFcn")
    Function containing the imported ONNX network architecture was saved to the file squeezenetFcn.m.
    To learn how to use this function, type: help squeezenetFcn.

    params =
      ONNXParameters with properties:

                 Learnables: [1×1 struct]
              Nonlearnables: [1×1 struct]
                      State: [1×1 struct]
              NumDimensions: [1×1 struct]
        NetworkFunctionName: 'squeezenetFcn'



    params is an ONNXParameters object that contains the network parameters. squeezenetFcn is a model function that contains the network architecture. importONNXFunction saves squeezenetFcn in the current folder.

    Calculate the classification accuracy of the pretrained network on the new training set.

    accuracyBeforeTraining = getNetworkAccuracy(XTrain,YTrain,params);
    fprintf("%.2f accuracy before transfer learning\n",accuracyBeforeTraining);
    0.01 accuracy before transfer learning


    The accuracy is very low.

    Display the learnable parameters of the network by typing params.Learnables. These parameters, such as the weights (W) and bias (B) of convolution and fully connected layers, are updated by the network during training. Nonlearnable parameters remain constant during training.

    The last two learnable parameters of the pretrained network are configured for 1000 classes.

    conv10_W: [1×1×512×1000 dlarray]

    conv10_B: [1000×1 dlarray]

    The parameters conv10_W and conv10_B must be fine-tuned for the new classification problem. Transfer the parameters to classify five classes by initializing the parameters.

    params.Learnables.conv10_W = rand(1,1,512,5);
    params.Learnables.conv10_B = rand(5,1);

    Freeze all the parameters of the network to convert them to nonlearnable parameters. Because you do not need to compute the gradients of the frozen layers, freezing the weights of many initial layers can significantly speed up network training.

    params = freezeParameters(params,"all");

    Unfreeze the last two parameters of the network to convert them to learnable parameters.

    params = unfreezeParameters(params,"conv10_W");
    params = unfreezeParameters(params,"conv10_B");

    The network is ready for training. Specify the training options.

    velocity = [];
    numEpochs = 5;
    miniBatchSize = 16;
    initialLearnRate = 0.01;
    momentum = 0.9;
    decay = 0.01;

    Calculate the total number of iterations for the training progress monitor.

    numObservations = size(YTrain,2);
    numIterationsPerEpoch = floor(numObservations./miniBatchSize);
    numIterations = numEpochs*numIterationsPerEpoch;

    Initialize the TrainingProgressMonitor object. Because the timer starts when you create the monitor object, make sure that you create the object immediately after the training loop.

    monitor = trainingProgressMonitor(Metrics="Loss",Info="Epoch",XLabel="Iteration");

    Train the network.

    epoch = 0;
    iteration = 0;
    executionEnvironment = "cpu"; % Change to "gpu" to train on a GPU.

    % Loop over epochs.
    while epoch < numEpochs && ~monitor.Stop

        epoch = epoch + 1;

        % Shuffle data.
        idx = randperm(numObservations);
        XTrain = XTrain(:,:,:,idx);
        YTrain = YTrain(:,idx);

        % Loop over mini-batches.
        i = 0;
        while i < numIterationsPerEpoch && ~monitor.Stop
            i = i + 1;
            iteration = iteration + 1;

            % Read mini-batch of data.
            idx = (i-1)*miniBatchSize+1:i*miniBatchSize;
            X = XTrain(:,:,:,idx);
            Y = YTrain(:,idx);

            % If training on a GPU, then convert data to gpuArray.
            if (executionEnvironment == "auto" && canUseGPU) || executionEnvironment == "gpu"
                X = gpuArray(X);
            end

            % Evaluate the model gradients and loss using dlfeval and the
            % modelGradients function.
            [gradients,loss,state] = dlfeval(@modelGradients,X,Y,params);
            params.State = state;

            % Determine the learning rate for the time-based decay learning rate schedule.
            learnRate = initialLearnRate/(1 + decay*iteration);

            % Update the network parameters using the SGDM optimizer.
            [params.Learnables,velocity] = sgdmupdate(params.Learnables,gradients,velocity);

            % Update the training progress monitor.
            recordMetrics(monitor,iteration,Loss=loss);
            updateInfo(monitor,Epoch=epoch);
            monitor.Progress = 100 * iteration/numIterations;
        end
    end

    Calculate the classification accuracy of the network after fine-tuning.

    accuracyAfterTraining = getNetworkAccuracy(XTrain,YTrain,params);
    fprintf("%.2f accuracy after transfer learning\n",accuracyAfterTraining);
    1.00 accuracy after transfer learning


    Helper Functions

    This section provides the code of the helper functions used in this example.

    The getNetworkAccuracy function evaluates the network performance by calculating the classification accuracy.

    function accuracy = getNetworkAccuracy(X,Y,onnxParams)

    N = size(X,4);
    Ypred = squeezenetFcn(X,onnxParams,Training=false);

    [~,YIdx] = max(Y,[],1);
    [~,YpredIdx] = max(Ypred,[],1);
    numIncorrect = sum(abs(YIdx-YpredIdx) > 0);
    accuracy = 1 - numIncorrect/N;

    end

    The modelGradients function calculates the loss and gradients.

    function [grad, loss, state] = modelGradients(X,Y,onnxParams)

    [y,state] = squeezenetFcn(X,onnxParams,Training=true);
    loss = crossentropy(y,Y,DataFormat="CB");
    grad = dlgradient(loss,onnxParams.Learnables);

    end

    The squeezenetONNX function generates an ONNX model of the SqueezeNet network.

    function squeezenetONNX()

    exportONNXNetwork(squeezenet,"squeezenet.onnx");

    end

    Import an ONNX long short-term memory (LSTM) network as a function, and use the pretrained network to classify sequence data. An LSTM network enables you to input sequence data into a network, and make predictions based on the individual time steps of the sequence data.

    This example uses the helper function preparePermutationVector. To view the code for this function, see Helper Function.

    lstmNet has a similar architecture to the LSTM network created in Sequence Classification Using Deep Learning. lstmNet is trained to recognize the speaker given time series data representing two Japanese vowels spoken in succession. The training data contains time series data for nine speakers. Each sequence has 12 features and varies in length.

    Specify lstmNet as the model file.

    modelfile = 'lstmNet.onnx';

    Import the pretrained ONNX network as a function by using importONNXFunction, which returns the ONNXParameters object params containing the network parameters. The function also creates a new model function in the current folder that contains the network architecture. Specify the name of the model function as lstmnetFcn.

    params = importONNXFunction(modelfile,'lstmnetFcn');
    Function containing the imported ONNX network architecture was saved to the file lstmnetFcn.m.
    To learn how to use this function, type: help lstmnetFcn.


    Load the Japanese Vowels test data. XTest is a cell array containing 370 sequences of dimension 12 and varying length. TTest is a categorical vector of labels "1","2",..."9", which correspond to the nine speakers.

    load JapaneseVowelsTestData;

    lstmNet was trained using mini-batches with sequences of similar length. To organize the test data in the same way, sort the test data by sequence length.

    numObservationsTest = numel(XTest);
    for i=1:numObservationsTest
        sequence = XTest{i};
        sequenceLengthsTest(i) = size(sequence,2);
    end
    [sequenceLengthsTest,idx] = sort(sequenceLengthsTest);
    XTest = XTest(idx);
    TTest = TTest(idx);

    Use preparePermutationVector to compute the permutation vector inputPerm, which permutes the dimension ordering of the input sequence data to the dimension ordering of the imported LSTM network input. You can type help lstmnetFcn to view the dimension ordering of the network input SEQUENCEINPUT.

    inputPerm = preparePermutationVector(["FeaturesLength","SequenceLength","BatchSize"],...
        ["SequenceLength","BatchSize","FeaturesLength"]);

    Calculate the class probabilities by specifying the sequence data to classify XTest and the ONNXParameters object params as input arguments to the model function lstmnetFcn. Customize the input dimension ordering by assigning the numeric vector inputPerm to the name-value argument 'InputDataPermutation'. Return scores in the dimension ordering of the network output by assigning 'none' to the name-value argument 'OutputDataPermutation'.

    for i = 1:length(XTest)
        scores = lstmnetFcn(XTest{i},params,'InputDataPermutation',inputPerm,'OutputDataPermutation','none');
        YPred(i) = find(scores==max(scores));
    end
    YPred = categorical(YPred');

    Calculate the classification accuracy of the predictions.

    acc = sum(YPred == TTest)./numel(TTest)
    acc = 0.9514


    Helper Function

    This section provides the code of the helper function preparePermutationVector used in this example.

    The preparePermutationVector function returns a permutation vector perm, which permutes the dimension ordering in fromDimOrder to the dimension ordering in toDimOrder. You can specify the input arguments fromDimOrder and toDimOrder as character vectors, string scalars, string arrays, cell arrays of character vectors, or numeric vectors. Both arguments must have the same type and the same unique elements. For example, if fromDimOrder is the character vector 'hwcn', toDimOrder can be the character vector 'nchw' (where h, w, and c correspond to the height, width, and number of channels of the image, respectively, and n is the number of observations).

    function perm = preparePermutationVector(fromDimOrder, toDimOrder)

    % Check if both fromDimOrder and toDimOrder are vectors.
    if ~isvector(fromDimOrder) || ~isvector(toDimOrder)
        error(message('nnet_cnn_onnx:onnx:FPVtypes'));
    end

    % Convert fromDimOrder and toDimOrder to the appropriate type.
    if isstring(fromDimOrder) && isscalar(fromDimOrder)
        fromDimOrder = char(fromDimOrder);
    end
    if isstring(toDimOrder) && isscalar(toDimOrder)
        toDimOrder = char(toDimOrder);
    end

    % Check if fromDimOrder and toDimOrder have unique elements.
    [fromSorted, ifrom] = unique(fromDimOrder);
    [toSorted, ~, iToInv] = unique(toDimOrder);

    if numel(fromSorted) ~= numel(fromDimOrder)
        error(message('nnet_cnn_onnx:onnx:FPVfromunique'));
    end
    if numel(toSorted) ~= numel(toDimOrder)
        error(message('nnet_cnn_onnx:onnx:FPVtounique'));
    end

    % Check if fromDimOrder and toDimOrder have the same number of elements.
    if ~isequal(fromSorted, toSorted)
        error(message('nnet_cnn_onnx:onnx:FPVsame'));
    end

    % Compute the permutation vector.
    perm = ifrom(iToInv);
    perm = perm(:)';

    end

    Input Arguments

    collapse all

    Name of the ONNX model file containing the network, specified as a character vector or string scalar. The file must be in the current folder or a folder on the MATLAB® path, or you must include a full or relative path to the file.

    Example: 'shufflenet.onnx'

    Name of the model function, specified as a character vector or string scalar. The function NetworkFunctionName contains the architecture of the imported ONNX network. The file is saved in an M-file in the current folder, or you must include a full or relative path to the file. The NetworkFunctionName file is required for using the network. For more information, see Imported ONNX Model Function.

    Example: 'shufflenetFcn'

    Output Arguments

    collapse all

    Network parameters, returned as an ONNXParameters object. params contains the network parameters of the imported ONNX model. Use dot notation to reference properties of params. For example, params.Learnables displays the network learnable parameters, such as the weights of the convolution layers.

    Limitations

    • importONNXFunction supports these ONNX versions:

      • ONNX intermediate representation version 6

      • ONNX operator sets 7 to 13

    More About

    collapse all

    Imported ONNX Model Function

    importONNXFunction creates a model function that contains the network architecture of the imported ONNX model. Specify the name NetworkFunctionName as an input argument to importONNXFunction.

    Syntax

    Use the following syntaxes to interface with the imported ONNX model function (NetworkFunctionName):

    • [Y,state] = NetworkFunctionName(X,params) returns the output data Y and the updated network state for the input data X.

    • [Y,state] = NetworkFunctionName(X,params,Name,Value) uses additional options specified by one or more name-value pair arguments.

    • [Y1,Y2,...,Yn,state] = NetworkFunctionName(X1,X2,...,Xn,params) returns multiple output data (Y1,Y2,...,Yn) and the updated network state for the multiple input data (X1,X2,...,Xn).

    • [Y1,Y2,...,Yn,state] = NetworkFunctionName(X1,X2,...,Xn,params,Name,Value) uses additional options specified by one or more name-value pair arguments for multiple inputs and outputs.

    Input Arguments
    ArgumentDescription
    XInput data, specified as an array or dlarray.
    paramsNetwork parameters, specified as an ONNXParameters object.
    Name-Value Arguments
    Argument nameDescription
    'Training'

    Training option, specified as 'false' (default) or 'true'.

    'InputDataPermutation'

    Permutation applied to the dimension ordering of input X, specified as 'auto' (default), 'none', a numeric vector, or a cell array.

    Assign a value to the name-value pair argument 'InputDataPermutation' to permute the input data into the dimension ordering required by the imported ONNX model.

    • Assign the value 'auto' to apply an automatic permutation based on assumptions about common input data X. For more details, see Automatic Input Data Permutation.

    • Assign the value 'none' to pass X in the original ordering.

    • Assign a numeric vector value to customize the input dimension ordering; for example, [4 3 1 2]. For an example, see Sequence Classification Using Imported ONNX Function.

    • Assign a cell array value for multiple inputs; for example, {[3 2 1],'none'}.

    'OutputDataPermutation'

    Permutation applied to the dimension ordering of output Y, specified as 'auto' (default), 'none', a numeric vector, or a cell array.

    Assign a value to the name-value pair argument 'OutputDataPermutation' to match the dimension ordering of the imported ONNX model.

    • Assign the value 'auto' to return Y in Deep Learning Toolbox ordering. For more details, see Automatic Output Data Permutation.

    • Assign the value 'none' to return Y in ONNX ordering. For an example, see Sequence Classification Using Imported ONNX Function.

    • Assign a numeric vector value to customize the output dimension ordering; for example, [3 4 2 1].

    • Assign a cell array value for multiple outputs; for example, {[3 2 1],'none'}.

    Output Arguments
    ArgumentDescription
    Y

    Output data, returned as an array or dlarray.

    • If X is an array or you use ONNXFunction to predict, Y is a array.

    • If X is a dlarray or you use ONNXFunction for training, Y is a dlarray.

    state

    Updated network state, specified as a structure.

    The network state contains information remembered by the network between iterations and updated across multiple training batches.

    The interpretation of input argument X and output argument Y can differ between models. For more information about the model input and output arguments, refer to help for the imported model function NetworkFunctionName, or refer to the ONNX documentation [1].

    Automatic Permutation for Imported Model Function

    By default, NetworkFunctionName automatically permutes input and output data to facilitate image classification tasks. Automatic permutation might be unsuitable for other tasks, such as object detection and time series classification.

    Automatic Input Data Permutation

    To automatically permute the input, NetworkFunctionName assumes the following based on the input dimensions specified by the imported ONNX network.

    Number of ONNX Model Input DimensionsInterpretation of Input DataONNX Standard Dimension OrderingDeep Learning Toolbox Standard Dimension OrderingAutomatic Permutation of Input
    42-D image

    NCHW

    H, W, and C correspond to the height, width, and number of channels of the image, respectively, and N is the number of observations.

    HWCN

    H, W, and C correspond to the height, width, and number of channels of the image, respectively, and N is the number of observations.

    [ 4 3 1 2 ]

    If the size of the input dimensions is a number other than 4, NetworkFunctionName specifies the input argument 'InputDataPermutation' as 'none'.

    Automatic Output Data Permutation

    To automatically permute the output, NetworkFunctionName assumes the following based on the output dimensions specified by the imported ONNX network.

    Number of ONNX Model Output DimensionsInterpretation of Output DataONNX Standard Dimension OrderingDeep Learning Toolbox Standard Dimension OrderingAutomatic Permutation of Output
    22-D image classification scores

    NK

    K is the number of classes and N is the number of observations.

    KN

    K is the number of classes and N is the number of observations.

    [ 2 1 ]
    42-D image pixel classification scores

    NKHW

    H and W correspond to the height and width of the image, respectively, K is the number of classes, and N is the number of observations.

    HWKN

    H and W correspond to the height and width of the image, respectively, K is the number of classes, and N is the number of observations.

    [3 4 2 1]

    If the size of the output dimensions is a number other than 2 or 4, NetworkFunctionName specifies the input argument 'OutputDataPermutation' as 'none'.

    ONNX Operators Supported for Conversion into Built-In MATLAB Layers

    importONNXFunction supports the following ONNX operators for conversion into built-in MATLAB layers, with some limitations. Compare these operators with the operators supported by importNetworkFromONNX for conversion into equivalent built-in MATLAB layers.

    ONNX OperatorimportNetworkFromONNX Support
    AbsNo

    Add

    Yes
    AndNo
    ArgMaxNo

    AveragePool

    Yes

    BatchNormalization

    Yes
    CastNo
    CeilNo

    Clip

    No
    CompressNo

    Concat

    Yes

    Constant

    Yes
    ConstantOfShapeYes

    Conv

    Yes

    ConvTranspose

    Yes
    DepthToSpaceYes

    Div

    Yes

    Dropout

    Yes
    EqualNo
    ExpNo
    ExpandNo

    Flatten

    Yes
    FloorNo
    GatherNo

    Gemm

    Yes

    GlobalAveragePool

    Yes

    Greater

    Yes
    GRUYes
    HardmaxNo

    Identity

    Yes
    IfNo
    InstanceNormalizationYes

    LeakyRelu

    Yes
    LessNo
    LessOrEqualNo
    LogNo
    LoopNo

    LRN

    Yes

    LSTM

    Yes

    MatMul

    Yes

    MaxPool

    Yes

    Mul

    Yes
    NegNo
    NonMaxSuppressionNo
    NonZeroNo
    NotNo
    OneHotNo
    OrNo
    PadNo
    PowNo

    PRelu

    Yes
    RandomUniformNo
    RangeNo
    ReciprocalNo
    ReduceMaxNo
    ReduceMeanNo
    ReduceMinNo
    ReduceProdNo
    ReduceSumNo

    Relu

    Yes

    Reshape

    Yes
    ResizeYes
    RoiAlignNo
    RoundNo
    ScanNo
    ScatterNo
    ScatterElementsNo
    SequenceAtNo
    ShapeNo

    Sigmoid

    Yes
    SliceNo

    Softmax

    Yes
    SpaceToDepthYes
    SplitNo
    SplitToSequenceNo
    SqrtNo
    SqueezeNo

    Sub

    Yes

    Sum

    Yes

    Tanh

    Yes
    TileNo
    TopKNo
    TransposeNo
    UnsqueezeNo
    UpsampleNo
    WhereNo

    Tips

    • Refer to the ONNX documentation for each model to see the required preprocessing of the network inputs. For example, you need to resize (using imresize), rescale, and normalize the input images to networks trained with the ImageNet dataset (such as AlexNet, GoogleNet, ShuffleNet, and SqueezeNet).

    Alternative Functionality

    importONNXFunction is useful when you cannot import a pretrained ONNX network by using importNetworkFromONNX.

    References

    [1] GitHub. “Open Neural Network Exchange.” Accessed July 3, 2023. https://github.com/onnx/.

    [2] "ONNX | Home.” Accessed July 3, 2023. https://onnx.ai/.

    Version History

    Introduced in R2020b
