Design Lidar SLAM Algorithm Using Unreal Engine Simulation Environment
This example shows how to record synthetic lidar sensor data from a 3-D simulation environment, and develop a simultaneous localization and mapping (SLAM) algorithm using the recorded data. The simulation environment uses the Unreal Engine® by Epic Games®.
Automated Driving Toolbox™ integrates an Unreal Engine simulation environment in Simulink®. Simulink blocks related to this simulation environment can be found in the
drivingsim3d library. These blocks provide the ability to:
Select different scenes in the 3D simulation environment
Place and move vehicles in the scene
Attach and configure sensors on the vehicles
Simulate sensor data based on the environment around the vehicle
This powerful simulation tool can be used to supplement real data when developing, testing, and verifying the performance of automated driving algorithms, making it possible to test scenarios that are difficult to reproduce in the real world.
In this example, you evaluate a lidar perception algorithm using synthetic lidar data generated from the simulation environment. The example walks you through the following steps:
Record and visualize synthetic lidar sensor data from the simulation environment.
Develop a perception algorithm to build a map using SLAM in MATLAB®.
Set Up Scenario in Simulation Environment
First, set up a scenario in the simulation environment that can be used to test the perception algorithm. Use a scene depicting a typical city block with a single vehicle that is the vehicle under test. You can use this scene to test the performance of the algorithm in an urban road setting.

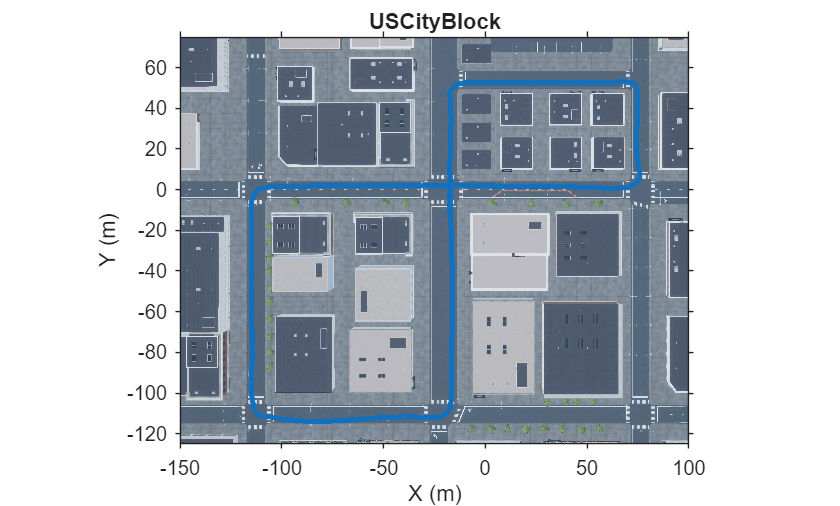

Next, select a trajectory for the vehicle to follow in the scene. The Select Waypoints for Unreal Engine Simulation example describes how to interactively select a sequence of waypoints from a scene and generate a vehicle trajectory. This example uses a recorded drive segment obtained using the
helperSelectSceneWaypoints function, as described in the waypoint selection example.
% Load reference path for recorded drive segment xData = load('refPosesX.mat'); yData = load('refPosesY.mat'); yawData = load('refPosesT.mat'); % Set up workspace variables used by model refPosesX = xData.refPosesX; refPosesY = yData.refPosesY; refPosesT = yawData.refPosesT; % Display path on scene image sceneName = 'USCityBlock'; hScene = figure; helperShowSceneImage(sceneName); hold on scatter(refPosesX(:,2),refPosesY(:,2),7,'filled') % Adjust axes limits xlim([-150 100]) ylim([-125 75])
LidarSLAMIn3DSimulation Simulink model is configured with the US City Block scene using the Simulation 3D Scene Configuration block. The model places a vehicle on the scene using the Simulation 3D Vehicle with Ground Following block. A lidar sensor is attached to the vehicle using the Simulation 3D Lidar block. In the block dialog box, use the Mounting tab to adjust the placement of the sensor. Use the Parameters tab to configure properties of the sensor to simulate different lidar sensors. In this example, the lidar is mounted on the center of the roof. The lidar sensor is configured to model a typical Velodyne® HDL-32E sensor.
close(hScene) if ~ispc error(['3D Simulation is only supported on Microsoft',char(174),' Windows',char(174),'.']); end % Open the model modelName = 'LidarSLAMIn3DSimulation'; open_system(modelName); snapnow;
The model records and visualizes the synthetic lidar data. The recorded data is available through the simulation output, and can be used for prototyping your algorithm in MATLAB. Additionally, the model uses a From Workspace (Simulink) block to load simulated measurements from an Inertial Navigation Sensor (INS). The INS data was obtained by using an
insSensor object, and saved in a MAT file.
The rest of the example follows these steps:
Simulate the model to record synthetic lidar data generated by the sensor and save it to the workspace.
Use the sensor data saved to the workspace to develop a perception algorithm in MATLAB. The perception algorithm builds a map of the surroundings using SLAM.
Visualize the results of the built map.
Record and Visualize Synthetic Lidar Sensor Data
The Record and Visualize subsystem records the synthetic lidar data to the workspace using a To Workspace (Simulink) block. The Visualize Point Cloud MATLAB Function block uses a
pcplayer object to visualize the streaming point clouds. The Visualize INS Path MATLAB Function block visualizes the streaming INS data.
Simulate the model. The streaming point cloud display shows the synthetic lidar sensor data. The scene display shows the synthetic INS sensor data. Once the model has completed simulation, the
simOut variable holds a structure with variables written to the workspace. The
helperGetPointCloud function extracts the sensor data into an array of
pointCloud objects. The
pointCloud object is the fundamental data structure used to hold lidar data and perform point cloud processing in MATLAB. Additionally, INS data is loaded from a MAT file, which will later be used to develop the perception algorithm. The INS data was obtained using the
insSensor object. The INS data has been processed to contain [x, y, theta] poses in world coordinates.
% Update simulation stop time to end when reference path is completed simStopTime = refPosesX(end,1); set_param(gcs,'StopTime',num2str(simStopTime)); % Load INS data from MAT file data = load('insMeasurement.mat'); insData = data.insMeasurement.signals.values; % Run the simulation simOut = sim(modelName); % Create a pointCloud array from the recorded data ptCloudArr = helperGetPointCloud(simOut);
Use Recorded Data to Develop Perception Algorithm
The synthetic lidar sensor data can be used to develop, experiment with, and verify a perception algorithm in different scenarios. This example uses an algorithm to build a 3-D map of the environment from streaming lidar data. Such an algorithm is a building block for applications like localization. It can also be used to create high-definition (HD) maps for geographic regions that can then be used for online localization. The map building algorithm is encapsulated in the
helperLidarMapBuilder class. This class uses point cloud and lidar processing capabilities in MATLAB. For more details, see Point Cloud Processing.
helperLidarMapBuilder class takes incoming point clouds from a lidar sensor and progressively builds a map using the following steps:
Preprocess point cloud: Preprocess each incoming point cloud to remove the ground plane and ego vehicle.
Register point clouds: Register the incoming point cloud with the last point cloud using a normal distribution transform (NDT) registration algorithm. The
pcregisterndtfunction performs the registration. To improve accuracy and efficiency of registration,
pcdownsampleis used to downsample the point cloud prior to registration. An initial transformation estimate can substantially improve registration performance. In this example, INS measurements are used to accomplish this.
Register point clouds: Use the estimated transformation obtained from registration to transform the incoming point cloud to the frame of reference of the map.
Update view set: Add the incoming point cloud and the estimated absolute pose as a view in a
pcviewsetobject. Add a connection between the current and previous view with the relative transformation between them.
updateMap method of the
helperLidarMapBuilder class accomplishes these steps. The
helperEstimateRelativeTransformationFromINS function computes an initial estimate for registration from simulated INS sensor readings.
Such an algorithm is susceptible to drift while accumulating a map over long sequences. To reduce the drift, it is typical to detect loop closures and use graph SLAM to correct the drift. See Build a Map from Lidar Data Using SLAM example for a detailed treatment. The
configureLoopDetector method of the
helperLidarMapBuilder class configures loop closure detection. Once it is configured, loop closure detection takes place each time
updateMap is invoked, using the following functions and classes:
pcviewset: Manages data associated with point cloud odometry like point clouds, poses and connections.
scanContextDescriptor: Extracts scan context descriptors from each incoming point cloud. Scan context is a 2-D global feature descriptor that is used for loop closure detection.
scanContextLoopDetector: Manages scan context descriptors and detects loop closures. It uses
scanContextDistanceto compute the distance between scan context descriptors and select the closest feature matches.
Then, the example uses point cloud registration to accept or reject loop closure candidates and to find the loop closure transformation.
% Set the random seed for example reproducibility rng(0); % Create a lidar map builder mapBuilder = helperLidarMapBuilder('DownsamplePercent',0.25, ... 'RegistrationGridStep',3.5,'Verbose',true); % Configure the map builder to detect loop closures configureLoopDetector(mapBuilder,'LoopConfirmationRMSE',1.5, ... 'SearchRadius',0.15,'DistanceThreshold',0.2); % Loop through the point cloud array and progressively build a map skipFrames = 5; numFrames = numel(ptCloudArr); exitLoop = false; prevInsMeas = insData(1,:); for n = 1:skipFrames:numFrames insMeas = insData(n,:); % Estimate initial transformation using INS initTform = helperEstimateRelativeTransformationFromINS(insMeas,prevInsMeas); % Update map with new lidar frame updateMap(mapBuilder,ptCloudArr(n),initTform); % Update top-view display isDisplayOpen = updateDisplay(mapBuilder,exitLoop); % Check and exit if needed exitLoop = ~isDisplayOpen; prevInsMeas = insMeas; end snapnow; % Close display closeDisplay = true; updateDisplay(mapBuilder,closeDisplay);
Loop closure candidate found between view Id 208 and 1 with RMSE 0.996855... Accepted Loop closure candidate found between view Id 212 and 6 with RMSE 1.153788... Accepted
The accumulated drift progressively increases over time resulting in an unusable map.
Once sufficient loop closures are detected, the accumulated drift can be corrected using pose graph optimization. This is accomplished by the
optimizeMapPoses method of the
helperLidarMapBuilder class, which uses
createPoseGraph to create a pose graph and
optimizePoseGraph (Navigation Toolbox) to optimize the pose graph.
After the pose graph has been optimized, rebuild the map using the updated poses. This is accomplished by the
rebuildMap method of
rebuildMap to correct for the drift and rebuild the map. Visualize the view set before and after pose graph optimization.
% Visualize viewset before pose graph optimization hFigViewset = figure; hG = plot(mapBuilder.ViewSet); view(hG.Parent,2); title('Viewset Display') % Optimize pose graph and rebuild map optimizeMapPoses(mapBuilder); rebuildMap(mapBuilder); % Overlay viewset after pose graph optimization hold(hG.Parent,'on'); plot(mapBuilder.ViewSet); hold(hG.Parent,'off'); legend(hG.Parent,'before','after')
Optimizing pose graph...done Rebuilding map...done
Visualize the accumulated point cloud map computed using the recorded data.
close(hFigViewset) hFigMap = figure; pcshow(mapBuilder.Map) % Customize axes labels and title xlabel('X (m)') ylabel('Y (m)') zlabel('Z (m)') title('Point Cloud Map') helperMakeFigurePublishFriendly(hFigMap);
By changing the scene, placing more vehicles in the scene, or updating the sensor mounting and parameters, the perception algorithm can be stress-tested under different scenarios. This approach can be used to increase coverage for scenarios that are difficult to reproduce in the real world.
% Close windows close(hFigMap) close_system(modelName)
helperGetPointCloud Extract an array of
function ptCloudArr = helperGetPointCloud(simOut) % Extract signal ptCloudData = simOut.ptCloudData.signals.values; % Create a pointCloud array ptCloudArr = pointCloud(ptCloudData(:,:,:,1)); for n = 2 : size(ptCloudData,4) ptCloudArr(end+1) = pointCloud(ptCloudData(:,:,:,n)); %#ok<AGROW> end end
helperMakeFigurePublishFriendly Adjust figure so that screenshot captured by publish is correct.
function helperMakeFigurePublishFriendly(hFig) if ~isempty(hFig) && isvalid(hFig) hFig.HandleVisibility = 'callback'; end end
Additional supporting functions or classes used in the example are included below.
helperLidarMapBuilder progressively builds a lidar map using point cloud scans. Each point cloud is processed to remove the ground plane and the ego vehicle, and registered against the previous point cloud. A point cloud map is then progressively built by aligning and merging the point clouds.
helperEstimateRelativeTransformationFromINS estimates a relative transformation from INS data.
helperShowSceneImage displays top-view image of the Unreal scene.
helperUpdatePolyline updates a polyline position used in conjunction with helperShowSceneImage.
