Downsample

Resample input at lower rate by deleting samples

  • Library:
  • DSP System Toolbox / Signal Operations

    DSP System Toolbox HDL Support / Signal Operations

  • Downsample block

Description

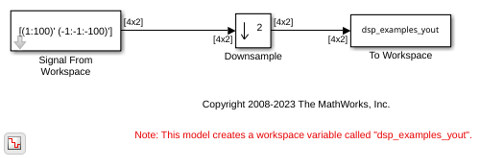

The Downsample block decreases the sampling rate of the input by deleting samples. When the block performs frame-based processing, it resamples the data in each column of the Pi-by-Q input matrix independently. When the block performs sample-based processing, it treats each element of the input as a separate channel and resamples each channel of the input array across time. The resample rate is K times lower than the input sample rate, where K is the value of the Downsample factor parameter. The Downsample block resamples the input by discarding K–1 consecutive samples following each sample that is output.

This block supports triggered subsystems when you set the Rate options parameter to Enforce single-rate processing.

Ports

Input

expand all

Data input whose sampling rate you want to decrease by using the block, specified as a column vector or a matrix.

When you set the Input processing parameter to Elements as channels (sample based), the input can be an N-D array.

The block supports variable-size input signals when you set Input processing to Columns as channels (frame based) and Rate options to Enforce single-rate processing. That is, the frame length (number of rows) and the number of channels (columns) can change during simulation. When the block accepts variable-size input signals, they can be of arbitrary frame length. That is, the input frame length does not have to be a multiple of the downsampling factor. When you specify fixed-size signals, the frame length can be arbitrary under certain conditions. For more details, see Frame-Based Processing and Sample-Based Processing.

Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64 | Boolean | fixed point
Complex Number Support: Yes

Output

expand all

Downsampled output with a sampling rate that is 1/K times the input sampling rate, returned as a column vector or a matrix.

When you set Rate options to:

  • Enforce single-rate processing –– The block maintains the input sample rate and downsamples the signal by decreasing the output frame size by a factor of K.

    The output has an upper bound size of ceil(P/K)-by-Q for an input of size P-by-Q.

  • Allow multirate processing –– The block downsamples the signal such that the output sample rate is K times slower than the input sample rate.

    The output frame size is the same as the input frame size.

For more details, see Frame-Based Processing and Sample-Based Processing.

Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64 | Boolean | fixed point
Complex Number Support: Yes

Parameters

expand all

The integer factor, K, by which to decrease the input sample rate.

The Sample offset parameter delays the output samples by an integer number of sample periods, D, where 0 ≤ D ≤ (K–1), so that any of the K possible output phases can be selected. For example, when you downsample the sequence 1, 2, 3, ... by a factor of 4, you can select from four phases.

Input SequenceSample Offset, DOutput Sequence (K = 4)

1,2,3,...

0

1,5,9,13,17,21,25,29,...

1,2,3,...

1

0,2,6,10,14,18,22,26,...

1,2,3,...

2

0,3,7,11,15,19,23,27,...

1,2,3,...

3

0,4,8,12,16,20,24,28,...

The initial zero in each of the latter three output sequences in the table is a result of the default zero Initial conditions parameter setting for this example. See Latency for more information on the Initial conditions parameter.

Specify the method for input processing:

  • Columns as channels (frame based) –– When you set the Input processing parameter to Columns as channels (frame based), the block treats each of the Q input columns as an individual channel containing Pi sequential time samples. The block downsamples each channel independently by discarding K–1 rows of the input matrix following each row that it outputs.

    For more information, see What Is Frame-Based Processing?.

  • Elements as channels (sample based) –– When you set the Input processing parameter to Elements as channels (sample based), the input can be an Q-D array. The Downsample block treats each element of the input as a separate channel, and resamples each channel of the input over time. The block downsamples the input array by discarding K–1 samples following each sample that it passes through to the output. The input and output sizes of the Downsample block are identical.

    For more information, see What Is Sample-Based Processing?.

Specify the method by which the block adjusts the rate at the output to accommodate the reduced number of samples. You can select one of the following options. The behavior of these options depends on whether the Input processing parameter is set to Elements as channels (sample based) (sample-based processing mode) or Columns as channels (frame based) (frame-based processing mode).

  • Elements as channels (sample based)

    • Enforce single-rate processing

      The block forces the output sample rate to match the input sample rate (Tso = Tsi) by repeating every Kth input sample K times at the output. In this mode, the behavior of the block is similar to the operation of a Sample and Hold block with a repeating trigger event of period KTsi.

    • Allow multirate processing

      The sample period of the output is K times longer than the input sample period (Tso = KTsi).

    For more details, see Sample-Based Processing

  • Columns as channels (frame based)

    • Enforce single rate processing

      The block generates the output at the slower (downsampled) rate using a proportionally smaller frame size than the input. The output has an upper bound size of ceil(P/K), where P is the input frame length and K is the downsample factor specified in the Downsample factor, K parameter. The input and output frame rates are equal. For more details, see Frame-Based Processing.

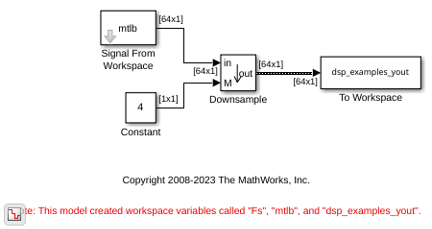

      The ex_downsample_ref2 model shows a single-channel input with a frame size of 64 being downsampled by a factor of 4 to a frame size of 16. The input and output frame rates are identical.

    • Allow multirate processing

      The block generates the output at the slower (downsampled) rate by using a proportionally longer frame period at the output port than at the input port. For downsampling by a factor of K, the output frame period is K times longer than the input frame period (Tfo = KTfi), but the input and output frame sizes are equal. For more details, see Frame-Based Processing.

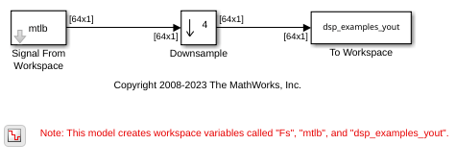

      The ex_downsample_ref1 model shows a single-channel input with a frame period of 1 second being downsampled by a factor of 4 to a frame period of 4 seconds. The input and output frame sizes are identical.

Specify whether fixed-size input signals (whose size does not change during simulation) can have an arbitrary frame length, where the frame length does not have to be a multiple of the downsampling factor. The block uses this parameter setting only for fixed-size input signals and ignores this parameter if the input has a variable-size.

When the input signal is a variable-size signal, the signal can have arbitrary frame length, that is, the frame length does not have to be a multiple of the decimation factor.

For fixed-size input signals, if you:

  • Select the Allow arbitrary frame length for fixed-size input signals parameter, the frame length of the signal does not have to be a multiple of the downsampling factor. If the input is not a multiple of the downsampling factor, then the output is generally a variable-size signal. Therefore, to support arbitrary input size, the block must also support variable-size operations, which you can enable by selecting the Allow arbitrary frame length for fixed-size input signals parameter.

  • Clear the Allow arbitrary frame length for fixed-size input signals parameter, the input frame length must be a multiple of the downsampling factor.

Dependency

To enable this parameter, set Input processing to Columns as channels (frame based) and Rate options to Enforce single-rate processing.

The initial block value for cases of nonzero latency. You can specify a scalar or an array of the same size as the input.

Dependencies

This parameter does not appear when Input processing is set to Columns as channels (frame based) and Rate options is set to Enforce single-rate processing.

Block Characteristics

Data Types

Boolean | double | fixed point | integer | single

Direct Feedthrough

no

Multidimensional Signals

no

Variable-Size Signals

no

Zero-Crossing Detection

no

More About

expand all

Extended Capabilities

Fixed-Point Conversion
Design and simulate fixed-point systems using Fixed-Point Designer™.

Version History

Introduced before R2006a
