Multiphase Clock

Generate multiple binary clock signals

•

Libraries:
DSP System Toolbox / Signal Management / Switches and Counters
DSP System Toolbox / Sources

Description

The Multiphase Clock block generates a 1-by-N vector of clock signals, where you specify the integer N in the Number of phases parameter. Each of the N phases has the same frequency, f, specified in hertz by the Clock frequency parameter.

The clock signal indexed by the Starting phase parameter is the first to become active, at t=0. The other signals in the output vector become active in turn, each one lagging the preceding signal's activation by 1/(Nf) seconds, the phase interval. The period of the output is therefore 1/(Nf) seconds.

The active level can be either high (1) or low (0), as specified by the Active level (polarity) parameter. You specify the duration of the active level, D, as an integer between 1 and N-1 using the Number of phase intervals over which the clock is active parameter. This value specifies the number of phase intervals that each signal remains in the active state after becoming active. The active duty cycle of the signal is D/N.

Examples

Generate Five-Phase Output from the Multiphase Clock Block

This example shows how to use the Multiphase Clock block to generate a 100 Hz five-phase output in which the third signal is first to become active. The block uses a high active level with a duration of one interval.

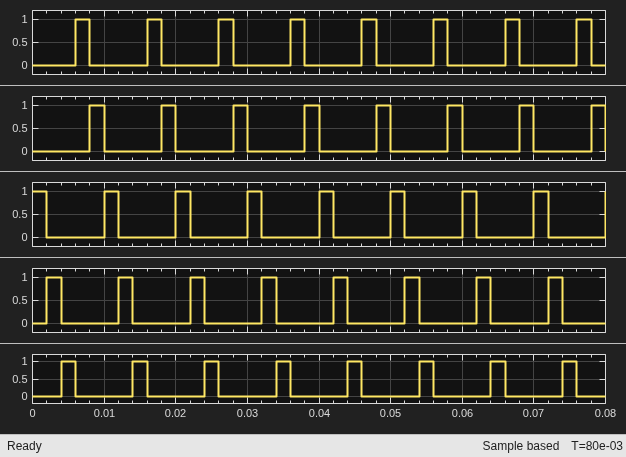

The Scope window below shows the output of the Multiphase Clock block. Note that the first active level appears at t=0 on y(3), the second active level appears at t=0.002 on y(4), the third active level appears at t=0.004 on y(5), the fourth active level appears at t=0.006 on y(1), and the fifth active level appears at t=0.008 on y(2). Each signal becomes active 1/(5*100) seconds after the previous signal.

Ports

Output

Port_1 — Vector of clock signals

vector

1-by-N vector of clock signals, where you specify N using the Number of phases parameter. For more information, see Description.

Data Types: single | double | Boolean

Parameters

Clock frequency (Hz) — Frequency of all clock signals

1 (default) | positive scalar

The frequency of all output clock signals, specified as a positive scalar.

Number of phases, N — Number of phases in output vector

4 (default) | positive integer

The number of different phases, N, in the output vector, specified as a positive integer scalar.

Starting phase (1 to N) — Vector index for starting phase

1 (default) | integer from 1 to N

The vector index of the output signal to first become active, specified as a scalar integer from 1 to N.

Number of phase intervals over which clock is active (1 to N-1) — Duration of active level for each output

3 (default) | integer from 1 to N-1

The duration of the active level, D, for every output signal specified as a scalar integer from 1 to N-1. The value you specify determines the number of phase intervals that each signal remains in the active state after becoming active. The active duty cycle of the signal is D/N.

Active level (polarity) — Active level

High (1) (default) | Low (0)

The active level of the output, specified as High (1) or Low (0).

Output data type — Output data type

Logical (default) | Boolean

The output data type, specified as Logical or Boolean.

Block Characteristics

Data Types	double | single | Boolean
Multidimensional Signals	No
Variable-Size Signals	No

Extended Capabilities

C/C++ Code Generation
Generate C and C++ code using Simulink® Coder™.

Version History

Introduced before R2006a
