SpectralMaskConfiguration

Display upper and lower spectral mask lines in the spectrum analyzer

Since R2022a

Description

Use the SpectralMaskConfiguration object to overlay a spectral mask on a spectrum in the spectrum analyzer. If the mask is green, the signal is within the mask limits. If the mask is red, the signal fails the mask limits.

You can check the status of the spectral mask from the scope toolbar, the command line, or event listeners.

• To modify a spectral mask and see its status, in the scope toolbar, click the spectral mask button . You can modify the masks in the Spectral Mask tab on the spectrum analyzer toolstrip. Use the getSpectralMaskStatus function to obtain mask details, such as number of times a mask succeeded, number of times a mask failed, channels causing mask failure, and so on.

• Use the MaskTestFailed event to perform an action every time the mask fails. To trigger a function when the mask fails, create a listener to the MaskTestFailed event and define a callback function to trigger. For more details about using events, see Events.

Both the spectrumAnalyzer object and the SpectrumAnalyzerBlockConfiguration object support the SpectralMaskConfiguration object in the command line.

Creation

Syntax

mask = SpectralMaskConfiguration()

Description

mask = SpectralMaskConfiguration() creates a spectral mask object.

Properties

All properties are tunable.

EnabledMasks — Spectral mask to enable

"none" (default) | "lower" | "upper" | "upper-and-lower"

Spectral mask to enable, specified as "none", "lower", "upper", or "upper-and-lower".

Scope Window Use

Click the Spectral Mask tab on the spectrum analyzer toolstrip. In the Views section, select Upper Mask, Lower Mask, or both.

The Spectral Mask tab appears when you:

• Select Spectrum in the Scope tab.

• In the drop-down list under Spectrum, choose either Power or Power Density.

Data Types: char | string

UpperMask — Limit for upper spectral mask

Inf (default) | scalar | two-column matrix

Limit for the upper spectral mask, specified as a scalar or two-column matrix.

If UpperMask is a scalar, the upper limit mask uses the same power value for all frequencies specified in the spectrum analyzer.

If UpperMask is a matrix, the first column contains the frequency values (Hz), which correspond to the x-axis values. The second column contains the power values, which correspond to the associated y-axis values.

To apply offsets to the power and frequency values, use the ReferenceLevel and MaskFrequencyOffset properties.

Scope Window Use

Click the Spectral Mask tab on the spectrum analyzer toolstrip. In the Configuration section, specify Upper Limits.

The Spectral Mask tab appears when you:

• Select Spectrum in the Scope tab.

• In the drop-down list under Spectrum, choose Power or Power Density.

Data Types: double

LowerMask — Limit for lower spectral mask

-Inf (default) | scalar | two-column matrix

Limit for the lower spectral mask, specified as a scalar or two-column matrix.

If LowerMask is a scalar, the lower limit mask uses the same power value for all frequencies specified in the spectrum analyzer.

If LowerMask is a matrix, the first column contains the frequency values (Hz), which correspond to the x-axis values. The second column contains the power values, which correspond to the associated y-axis values.

To apply offsets to the power and frequency values, use the ReferenceLevel and MaskFrequencyOffset property values.

Scope Window Use

Click the Spectral Mask tab on the spectrum analyzer toolstrip. In the Configuration section, specify Lower Limits.

The Spectral Mask tab appears when you:

• Select Spectrum in the Scope tab.

• In the drop-down list under Spectrum, choose Power or Power Density.

Data Types: double

ReferenceLevel — Reference level for mask power values

"custom" (default) | "spectrum-peak"

Reference level for mask power values, specified as either "custom" or "spectrum-peak".

When you specify ReferenceLevel as "custom", the object uses the value you specify in the CustomReferenceLevel property as the reference to the power values (in dBr) in the UpperMask and LowerMask properties.

When you specify ReferenceLevel as "spectrum-peak", the object uses the peak value of the current spectrum of the SelectedChannel as the reference power value.

Scope Window Use

Click the Spectral Mask tab on the spectrum analyzer toolstrip. In the Configuration section, set Reference Level (dBr) to either Spectrum peak or enter a real scalar.

The Spectral Mask tab appears when you:

• Select Spectrum in the Scope tab.

• In the drop-down list under Spectrum, choose Power or Power Density.

Data Types: char | string

CustomReferenceLevel — Custom reference level

0 (default) | real numeric scalar

Custom reference level to the power values, specified as a real numeric scalar. The reference level should have the same units as the SpectrumUnits property of the spectrum analyzer. The reference level is the value to which the object references the power values in the UpperMask and LowerMask properties.

Dependency

To enable this property, set ReferenceLevel to "custom". This property uses the same units as the SpectrumUnits property of the spectrum analyzer.

Scope Window Use

Click the Spectral Mask tab on the spectrum analyzer toolstrip. In the Configuration section, set Reference Level (dBr) to either Spectrum peak or enter a real scalar.

The Spectral Mask tab appears when you:

• Select Spectrum in the Scope tab.

• In the drop-down list under Spectrum, choose Power or Power Density.

Data Types: double

SelectedChannel — Input channel with peak spectrum

1 (default) | integer

Input channel with peak spectrum to use as the mask reference level, specified as an integer.

Dependency

To enable this property, set ReferenceLevel to "spectrum-peak".

Scope Window Use

Click the Spectral Mask tab on the spectrum analyzer toolstrip. In the Configuration section, specify Channel as an integer.

To enable Channel, set Reference Level (dBr) in the Configuration section to Spectrum peak and display some data on the scope.

The Spectral Mask tab appears when you:

• Select Spectrum in the Scope tab.

• In the drop-down list under Spectrum, choose Power or Power Density.

MaskFrequencyOffset — Frequency offset

0 (default) | finite numeric scalar

Frequency offset, specified as a finite numeric scalar. The object offsets the frequency values in the UpperMask and LowerMask properties by this value.

Scope Window Use

Click the Spectral Mask tab on the spectrum analyzer toolstrip. In the Configuration section, set Frequency Offset (Hz) to a real scalar.

The Spectral Mask tab appears when you:

• Select Spectrum in the Scope tab.

• In the drop-down list under Spectrum, choose Power or Power Density.

Data Types: double

Object Functions

getSpectralMaskStatus

Get test results of current spectral mask

Examples

Spectral Mask with spectrumAnalyzer

Create an upper spectral mask, set the reference level matrix, and add it to a Spectrum Analyzer object.

mask = SpectralMaskConfiguration();
mask.EnabledMasks = "upper";
mask.UpperMask = [...
      0 -17; ...
     90 -17; ...
     90  30; ...
    110  30; ...
    110 -17; ...
    500 -17];

scope = spectrumAnalyzer(PlotAsTwoSidedSpectrum=false,...
    ShowLegend=true);
scope.SpectralMask = mask;
scope.SpectralMask

ans =
  SpectralMaskConfiguration with properties:

            EnabledMasks: 'upper'
               UpperMask: [6x2 double]
               LowerMask: -Inf
          ReferenceLevel: 'custom'
    CustomReferenceLevel: 0
     MaskFrequencyOffset: 0

  Events for class SpectralMaskConfiguration: MaskTestFailed

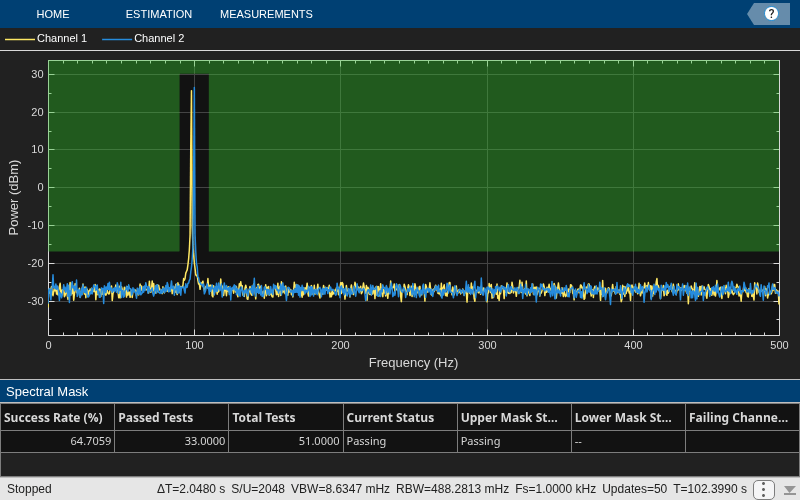

Run the spectrum analyzer using a sine wave spectrum. In the Spectral Mask panel at the bottom of the Spectrum Analyzer window, see how the spectrum succeeded or failed to stay within the spectral mask.

sine = dsp.SineWave(Frequency=[98 100],SampleRate=1000);
sine.SamplesPerFrame = 1024;
scope.SampleRate = sine.SampleRate;

for i=1:100
    scope(sine() + 0.05*randn(1024,2));
end
release(scope)

Get Spectral Mask Status

Add a spectral mask to an existing spectrumAnalyzer object. Use the getSpectralMaskStatus function to get the spectral mask status.

sine = dsp.SineWave(Frequency=[98 100],SampleRate=1000);
sine.SamplesPerFrame = 1024;
scope = spectrumAnalyzer(SampleRate=sine.SampleRate,...
       PlotAsTwoSidedSpectrum=false,ShowLegend=true,YLimits=[-60 40]);
hide(scope);

scope.SpectralMask.EnabledMasks = "upper-and-lower";
upperMask = [0 -10; 90 -10; 90 30; 110 30; 110 -10; 500 -10];
set(scope.SpectralMask,UpperMask=upperMask,LowerMask=-55);

for i=1:100
    scope(sine() + 0.05*randn(1024,2));
end

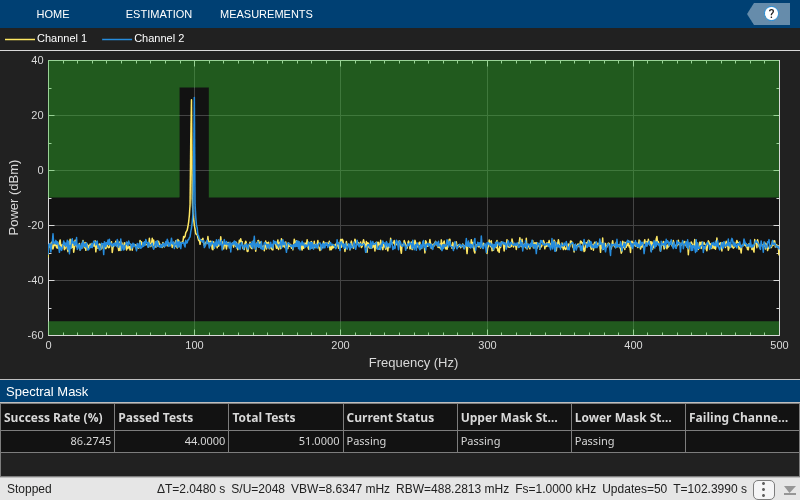

res = getSpectralMaskStatus(scope)

res = struct with fields:
    IsCurrentlyPassing: 1
        NumPassedTests: 44
         NumTotalTests: 51
           SuccessRate: 86.2745
          FailingMasks: ''
       FailingChannels: [1x0 double]
        SimulationTime: 102.3990

You can also view the status in the Spectral Mask tab on the Spectrum Analyzer toolstrip.

show(scope);
release(scope);

Version History

Introduced in R2022a
