Generate FPGA Bitstream for Two-Phase DC-DC Converter with Tunable Run-Time Parameters

This example shows how to generate FPGA bitstream for a Simscape™ model and tune the Simscape run-time parameters without rerunning the synthesis.

Simscape Model with Tunable Run-Time Parameters

In this example, you learn how you can generate FPGA bitstream for Simscape two-phase interleaved bidirectional DC-DC converter model with tunable run-time parameters. First, you generate an HDL implementation model from a Simscape two-phase DC-DC converter model by using the Simscape HDL Workflow Advisor. Then, for this implementation model, you generate the HDL code and synthesize the results by using the guided steps in the HDL Workflow Advisor. For more information, see HDL Workflow Advisor Tasks. You can tune the run-time parameter values for the Simscape model without rerunning the synthesis.

The parameter tuning supports:

  • Linear time-invariant models with local solver set to Backward Euler

  • Simscape models containing only single Simscape network

  • Single data type precision

Set Up Synthesis Tool Path

To synthesize the generated HDL code, before you use HDL Coder™ to generate code, set up your synthesis tool path. For example, if your synthesis tool is Xilinx® Vivado®, install the latest version of Xilinx Vivado as listed in HDL Language Support and Supported Third-Party Tools and Hardware.

Then, set the tool path to the installed Xilinx Vivado executable by using the hdlsetuptoolpath function:

hdlsetuptoolpath('ToolName','Xilinx Vivado','ToolPath','C:\Xilinx\Vivado\2022.1\bin\vivado.bat')

Two-Phase DC-DC Converter Current Control Model

The two-phase converter comprises two Bidirectional DC-DC Converters with ideal IGBTs. These configurations are a part of Simscape network inside the FPGA subsystem. To adjust the duty cycle, the Control Logic subsystem uses a PI-based control algorithm. To reduce the ripple at the output port of the converter, the two phases are switched with the same duty ratio but with a relative phase shift of 180 degrees. The SSC Currents & Voltages subsystem contains scopes that allow you to see the simulation results.

Open the model in the MATLAB® Command Window.

ModelName = 'sschdlexTwoPhaseDCDCConverterExample';

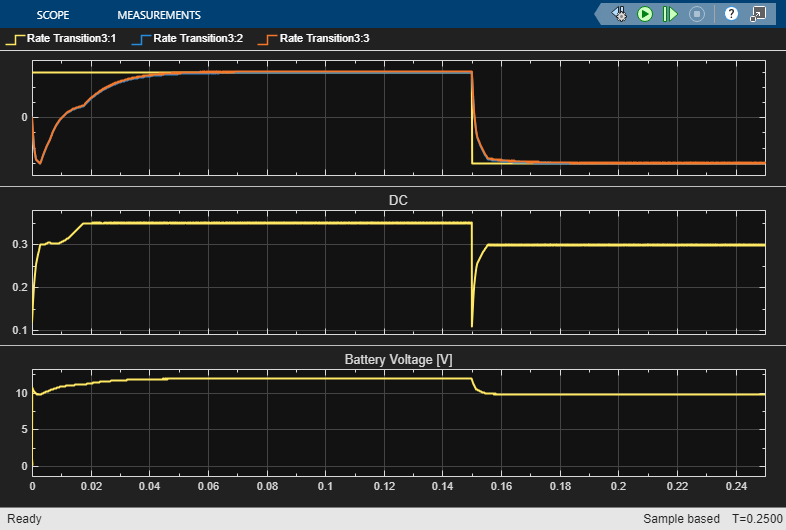

To see the waveforms, simulate the model.

open_system([ModelName '/SSC Currents & Voltages'])

Set Up Tunable Parameters

You can set up a model for parameter tuning in two different ways.

  • Make Simscape run-time parameters run-time configurable — To specify a Simscape block parameter as run-time configurable, change the Configurability setting in the block property inspector underneath the parameter name, from Compile-time to Run-time.

  • Use the Dynamic Switch Library blocks — For the blocks in Dynamic Switch Library, the run-time configurability is not a mask parameter. You can set any mask parameter to be a Simulink.Parameter object by setting obj.CoderInfo.StorageClass equal to "ExportedGlobal". This setup enables parameter tuning for the corresponding parameter. In the model, navigate to FPGA > Simscape Network > Bidirectional DC-DC Converter subsystem and double-click the Switch block. Here, Gs and s are Simulink.Parameter objects.

Once you set up the tunable parameter settings in the model, save the model for generating HDL implementation model from it.

Generate HDL Implementation Model

The Simscape HDL Workflow Advisor converts the Simscape plant model to an HDL-compatible implementation model from which you generate HDL code. To generate the HDL implementation model:

1. Open the Simscape HDL Workflow Advisor.


2. For each task, right-click and select Run This Task. In the Extract discrete equations, the right pane displays a table for all tunable parameters.

3. In the Implementation model generation task folder, click Generate implementation model task and set Map state space parameter to RAM to On in the Generate implementation model task window to get better resource utilization. Then, right-click the Generate implementation model task and select Run to Selected Task.

After the task passes, you see a link to the HDL implementation model gmStateSpaceHDL_sschdlexTwoPhaseDCDCConvert.

Generate HDL Code from Implementation Model

To modify the configuration parameter values for HDL code generation, run this command:


Open HDL Workflow Advisor

The HDL Workflow Advisor guides you through the tasks required for generating HDL code and an FPGA design process. It provides you with feedback on the results of each task. When you complete the tasks, you have a synthesis result report from one of the supported synthesis tools.

To open the subsystem HDL Subsystem1 in the HDL implementation model into the HDL Workflow Advisor, run this command:


You can also open the HDL Workflow Advisor from your model window. Right-click the subsystem HDL Subsystem1 and select HDL Workflow Advisor.

Set Target Device and Synthesis Tool

Before you generate HDL code, if you want to deploy the code onto a target platform, specify the synthesis tool.

  1. Open the HDL Workflow Advisor.

  2. Under the Set Target task folder, in the Set Target Device and Synthesis Tool task, specify Target workflow as Generic ASIC/FPGA and Synthesis tool as Xilinx Vivado. The rest of the fields are auto-populated. Specify the Family as Kintex7, Device as xc7k325t, Package as fbg676, and Speed as -1.

  3. In the Set Target Frequency task, specify Target Frequency as 140.

  4. Select the task that you want to run and click Run This Task.

Generate HDL Code

  1. In the HDL Code Generation task folder, select Set HDL Options and then click the HDL Code Generation Settings button to open the Configuration Parameters dialog box. Select Adaptive pipelining under HDL Code Generation > Optimizations > Pipelining. Click Apply.

  2. To modify the configuration parameter values for HDL code generation, navigate to gmStateSpaceHDL_sschdlexTwoPhaseDCDCConvert/FPGA/Subsystem3/HDL Subsystem1/HDL Algorithm/State Update. Right-click the Multiply Input block and select HDL Code > HDL Block Properties from the list. In the HDL Properties dialog box, set the value of SharingFactor to 20. Click Apply and then click OK. For the Multiply State block, also set the value of SharingFactor to 20. Similarly, in the HDL Algorithm subsystem, set the value of SharingFactor to 10 for the Multiply State and Multiply Input blocks of the Output subsystem.

  3. To generate HDL code, run the tasks under the HDL Code Generation task folder.

Synthesize Generated HDL Code

HDL Coder synthesizes the HDL code on the target platform and generates area and timing reports for your design based on the target device that you specify. You can run logic synthesis for a specified FPGA device and get the synthesis reports.

In the FPGA Synthesis and Analysis task folder:

  1. Create an FPGA synthesis project for your supported FPGA synthesis tool.

  2. Start supported FPGA synthesis tools to perform synthesis, mapping, and place/route tasks. To run FPGA synthesis, right-click the Run Synthesis task under the Perform Synthesis and P/R subtask folder. This starts Xilinx Vivado and executes the Vivado Synthesis step. You can annotate your original model with critical path information obtained from the synthesis tools.

Tune Run-Time Parameters

You can update the run-time parameter values of the generated HDL implementation model and fine-tune it. To generate and update tunable parameter data file for the implementation model:

1. Reopen the original Simscape model and update the parameter values to the desired configuration.

2. In MATLAB Command Window, run the sschdl.updateRuntimeParameters function:


This generates a new data file with the specified name as myTunableParams.mat in the generated sschdl folder. Use this file in place of tunableParameters.mat file to update your Simulink or SLRT model parameter values. To update the desired file in the Simulink® or SLRT model, open the Simulink or SLRT model. On the Modeling tab, select Model Settings > Model Properties. On the Callbacks tab, in the Model callback pane, select InitFcn and load the tunableParameter.mat file with the newly generated myTunableParams.mat file.

Deploy Two-Phase DC-DC Converter to Speedgoat FPGA I/O Modules

Generate FPGA Bitstream for Speedgoat Target Computer

1. Open the HDL implementation model, and then open the HDL Workflow Advisor for the implementation model.


To open the HDL Workflow Advisor for a subsystem inside the model, use the hdladvisor function.


2. In the Set Target Device and Synthesis Tool task, specify Target workflow as Simulink Real-Time FPGA I/O and Target platform as Speedgoat IO334-325K.

3. In the Set Target Reference Design task, select a value of X4 for the parameter PCIe lanes, and click the Run This Task button.

4. In Set Target Interface task, map the input and output single data type ports to PCIe Interface and click the Run This Task button.

5. In the Set Target Frequency task, the default value of Target Frequency (MHz) is set to 100. For this example model, this value is 140.

6. Right-click the Generate Simulink Real-Time Interface task, and select Run to Selected Task to generate the HDL IP core and FPGA bitstream.

Deploy Bitstream to Speedgoat IO334-325k Target

The FPGA subsystem is automatically replaced in the real-time interface model with Speedgoat® driver blocks to initialize the hardware and to interface with the FPGA during run time.

Connect to Target Machine and Run Real-Time Simulation

The model can now be deployed onto the Speedgoat real-time target machine. Make sure that the Speedgoat real-time target machine is connected to the host computer and powered on.

You download the bitstream by using the Simulink Real-Time Explorer. To open the Simulink Real-Time Explorer, enter the command slrtExplorer. Alternatively, you can open the Explorer from the Real-Time tab of the Simulink Toolstrip.

The Simulink Editor displays the Real-Time tab for models that are configured for the speedgoat.tlc code generation target. Click the Connect to Target Computer button in the Simulink Real-Time tab to connect to the machine. Once connected, click the Run on Target button to deploy the model.

Simulink Real-Time™ automatically generates C code from your model by using Simulink Coder™. The generated code and the bitstream for the FPGA are loaded onto the target machine, and model execution starts automatically.
