Convert grayscale or binary image to indexed image



[X,cmap] = gray2ind(I,c) converts the grayscale image I to an indexed image X with colormap cmap with c colors.

[X,cmap] = gray2ind(BW,c) converts the binary image BW to an indexed image.


collapse all

Read grayscale image into the workspace.

I = imread('cameraman.tif');

Convert the image to an indexed image using gray2ind. This example creates an indexed image with 16 indices.

[X, map] = gray2ind(I, 16);

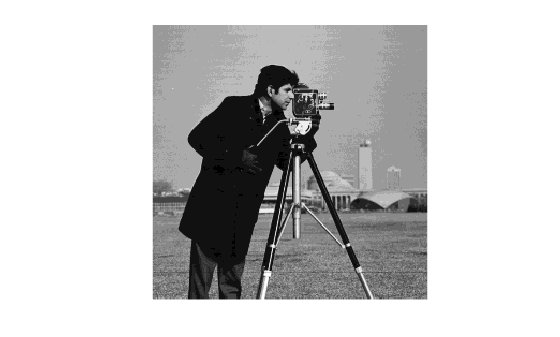

Display the indexed image.

imshow(X, map);

Figure contains an axes object. The axes object contains an object of type image.

Input Arguments

collapse all

Grayscale image, specified as a numeric array of any dimension.

Data Types: single | double | int16 | uint8 | uint16

Binary image, specified as a numeric array of any dimension.

Data Types: logical

Number of colormap colors, specified as a positive integer between 1 and 65536.

  • If the input image is grayscale, then the default value of c is 64.

  • If the input image is binary, then the default value of c is 2.

Output Arguments

collapse all

Indexed image, returned as a numeric array of the same dimensionality as the input grayscale or binary image. If the colormap length is less than or equal to 256, then the class of the output image is uint8 ; otherwise it is uint16.

Data Types: uint8 | uint16

Colormap associated with indexed image X, returned as a c-by-3 numeric matrix with values in the range [0, 1]. Each row is a three-element RGB triplet that specifies the red, green, and blue components of a single color of the colormap. The colormap is equivalent to gray(c).

Data Types: double

Extended Capabilities

Version History

Introduced before R2006a
