Phase Noise Analysis in VCO
This example shows how to measure and analyze the effect of phase noise in a voltage controlled oscillator (VCO). Using a VCO block and VCO testbench, this example defines the typical phase noise levels from datasheet specifications and validates the VCO.
Set Up VCO Testbench Model
Open the model
vcoPhaseNoiseAnalysis . The model consists of a VCO block and a VCO Testbench.
VCO Specifications and Phase Noise Impairments
Double click the VCO block to open the Block Parameters dialog box. In the Configuration tab, the Voltage Sensitivity (Hz/V) is set to

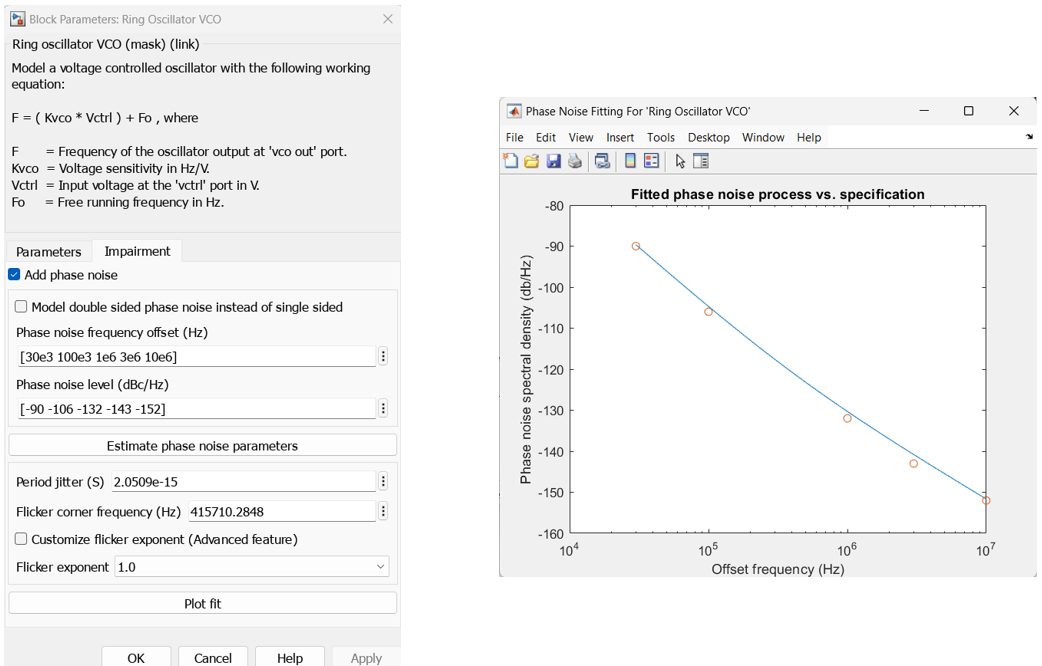

125e6. In the Impairment tab, check that the Add phase noise option is enabled. Phase noise frequency offset (Hz) and Phase noise level (dBc/Hz) parameters represent a typical phase noise profile in a VCO.
Modify VCO Testbench According to VCO Specifications
Double click the VCO Testbench block to open the Block Parameters dialog box. In the Stimulus tab, Control voltage (V) is set to
Use Autofill setup parameters button to confugure the testbench for phase noise measurement. Also, check that in the Target Metric tab, the Phase noise frequency offset (Hz) and Phase noise level (dBc/Hz) parameters match the values set in the VCO block.
Plot Phase Noise Profile
Run the simulation for
0.8 ms, according to the Recommmended min. simulation stop time (s) in the Block Parameters dialog box of VCO Testbench.

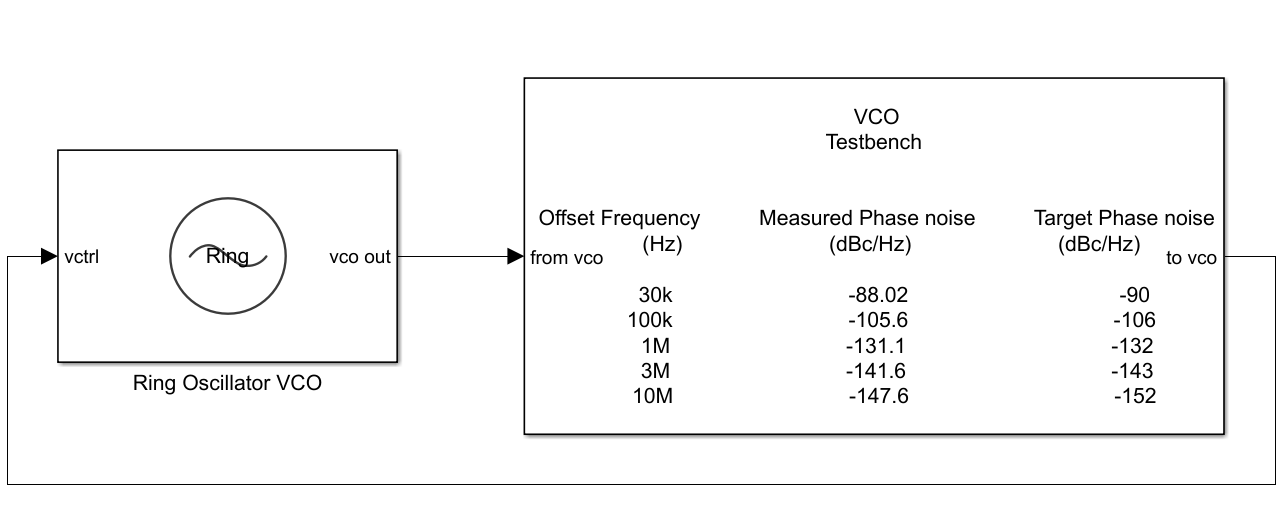

Once the simulation is complete, the phase noise profile is displayed on the icon of the VCO Testbench. The measured phase noise is comparable to target phase noise.

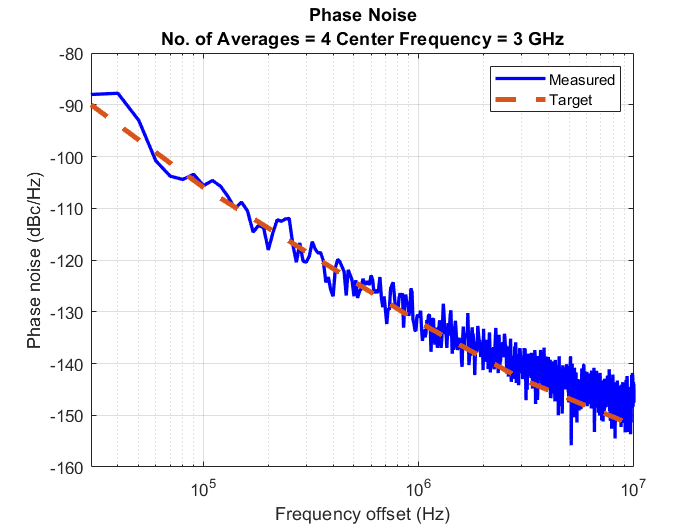

In the Block Parameters dialog box of VCO, click the Plot measurement button to plot the phase noise profile of the VCO. Notice that the VCO operating frequency is
3 GHz, and that the measured and targeted phase noise profiles match.
