MagnetostaticResults

Magnetostatic solution and derived quantities

Description

A MagnetostaticResults object contains the magnetic potential, magnetic field, magnetic flux density, and mesh values in a form convenient for plotting and postprocessing.

The magnetic potential, magnetic field, and magnetic flux density are calculated at the nodes of the triangular or tetrahedral mesh generated by generateMesh. Magnetic potential values at the nodes appear in the MagneticPotential property. Magnetic field values at the nodes appear in the MagneticField property. Magnetic flux density values at the nodes appear in the MagneticFluxDensity property.

To interpolate the magnetic potential, magnetic field, and magnetic flux density to a custom grid, such as the one specified by meshgrid, use the interpolateMagneticPotential, interpolateMagneticField, and interpolateMagneticFlux functions.

Creation

Solve a magnetostatic problem using the solve function. This function returns a solution as a MagnetostaticResults object.

Properties

expand all

Magnetic potential values at nodes, returned as a vector for a 2-D problem or an FEStruct object for a 3-D problem. The properties of this object contain the components of the magnetic potential at nodes.

Magnetic field values at nodes, returned as an FEStruct object. The properties of this object contain the components of the magnetic field at nodes.

Magnetic flux density values at nodes, returned as an FEStruct object. The properties of this object contain the components of the magnetic flux density at nodes.

Finite element mesh, returned as an FEMesh object. For details, see FEMesh Properties. For a 3-D model, the mesh must be linear.

Object Functions

 interpolateMagneticPotential Interpolate magnetic potential in magnetostatic result at arbitrary spatial locations interpolateMagneticField Interpolate magnetic field in magnetostatic result at arbitrary spatial locations interpolateMagneticFlux Interpolate magnetic flux density in magnetostatic result at arbitrary spatial locations

Examples

collapse all

Solve a 2-D electromagnetic problem on a geometry representing a plate with a hole in its center. Plot the resulting magnetic potential and field distribution.

Create an electromagnetic model for magnetostatic analysis.

emagmodel = createpde("electromagnetic","magnetostatic");

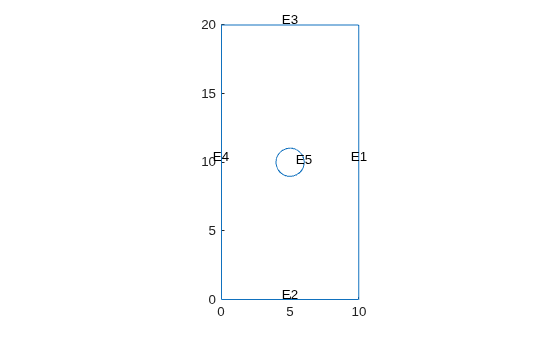

Import and plot the geometry representing a plate with a hole.

importGeometry(emagmodel,"PlateHolePlanar.stl");
pdegplot(emagmodel,"EdgeLabels","on")

Specify the vacuum permeability value in the SI system of units.

emagmodel.VacuumPermeability = 1.2566370614e-6;

Specify the relative permeability of the material.

electromagneticProperties(emagmodel,"RelativePermeability",5000);

Apply the magnetic potential boundary conditions on the edges framing the rectangle and the circle.

electromagneticBC(emagmodel,"MagneticPotential",0,"Edge",1:4);
electromagneticBC(emagmodel,"MagneticPotential",0.01,"Edge",5);

Specify the current density for the entire geometry.

electromagneticSource(emagmodel,"CurrentDensity",0.5);

Generate the mesh.

generateMesh(emagmodel);

Solve the model.

R = solve(emagmodel)
R =
MagnetostaticResults with properties:

MagneticPotential: [1218x1 double]
MagneticField: [1x1 FEStruct]
MagneticFluxDensity: [1x1 FEStruct]
Mesh: [1x1 FEMesh]

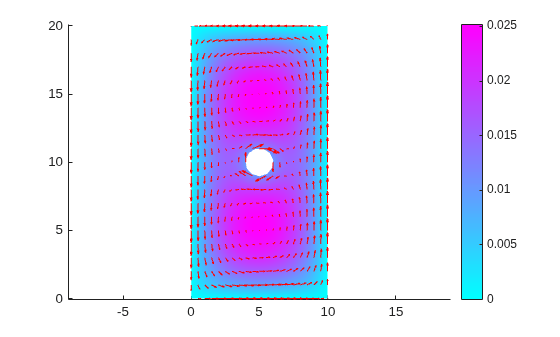

Plot the magnetic potential and field.

pdeplot(emagmodel,"XYData",R.MagneticPotential, ...
"FlowData",[R.MagneticField.Hx ...
R.MagneticField.Hy])
axis equal

Solve a 3-D electromagnetic problem on a geometry representing a plate with a hole in its center. Plot the resulting magnetic potential and field distribution.

Create an electromagnetic model for magnetostatic analysis.

emagmodel = createpde("electromagnetic","magnetostatic");

Import and plot the geometry representing a plate with a hole.

importGeometry(emagmodel,"PlateHoleSolid.stl");
pdegplot(emagmodel,"FaceLabels","on","FaceAlpha",0.3)

Specify the vacuum permeability value in the SI system of units.

emagmodel.VacuumPermeability = 1.2566370614e-6;

Specify the relative permeability of the material.

electromagneticProperties(emagmodel,"RelativePermeability",5000);

Apply the magnetic potential boundary conditions on the side faces and the face bordering the hole.

electromagneticBC(emagmodel,"MagneticPotential",[0;0;0],"Face",3:6);
electromagneticBC(emagmodel,"MagneticPotential",[0;0;0.01],"Face",7);

Specify the current density for the entire geometry.

electromagneticSource(emagmodel,"CurrentDensity",[0;0;0.5]);

Generate the mesh.

generateMesh(emagmodel);

Solve the model.

R = solve(emagmodel)
R =
MagnetostaticResults with properties:

MagneticPotential: [1x1 FEStruct]
MagneticField: [1x1 FEStruct]
MagneticFluxDensity: [1x1 FEStruct]
Mesh: [1x1 FEMesh]

Plot the z-component of the magnetic potential.

pdeplot3D(emagmodel,"ColormapData",R.MagneticPotential.Az)

Plot the magnetic field.

pdeplot3D(emagmodel,"FlowData",[R.MagneticField.Hx ...
R.MagneticField.Hy ...
R.MagneticField.Hz])

Use a solution obtained by performing a DC conduction analysis to specify current density for a magnetostatic model.

Create an electromagnetic model for DC conduction analysis.

emagmodel = createpde("electromagnetic","conduction");

Import and plot a geometry representing a plate with a hole.

gm = importGeometry(emagmodel,"PlateHoleSolid.stl");
pdegplot(gm,"FaceLabels","on","FaceAlpha",0.3)

Specify the conductivity of the material.

electromagneticProperties(emagmodel,"Conductivity",6e4);

Apply the voltage boundary conditions on the left, right, top, and bottom faces of the plate.

electromagneticBC(emagmodel,"Voltage",0,"Face",3:6);

Specify the surface current density on the face bordering the hole.

electromagneticBC(emagmodel,"SurfaceCurrentDensity",100,"Face",7);

Generate the mesh.

generateMesh(emagmodel);

Solve the model.

R = solve(emagmodel);

Change the analysis type of the model to magnetostatic.

emagmodel.AnalysisType = "magnetostatic";

This model already has a quadratic mesh that you generated for the DC conduction analysis. For a 3-D magnetostatic model, the mesh must be linear. Generate a new linear mesh. The generateMesh function creates a linear mesh by default if the model is 3-D and magnetostatic.

generateMesh(emagmodel);

Specify the vacuum permeability value in the SI system of units.

emagmodel.VacuumPermeability = 1.2566370614e-6;

Specify the relative permeability of the material.

electromagneticProperties(emagmodel,"RelativePermeability",5000);

Apply the magnetic potential boundary conditions on the side faces and the face bordering the hole.

electromagneticBC(emagmodel,"MagneticPotential",[0;0;0],"Face",3:6);
electromagneticBC(emagmodel,"MagneticPotential",[0;0;0.01],"Face",7);

Specify the current density for the entire geometry using the DC conduction solution.

electromagneticSource(emagmodel,"CurrentDensity",R);

Solve the model.

Rmagnetostatic = solve(emagmodel);

Plot the x- and z-components of the magnetic potential.

pdeplot3D(emagmodel,"ColormapData",Rmagnetostatic.MagneticPotential.Ax)

pdeplot3D(emagmodel,"ColormapData",Rmagnetostatic.MagneticPotential.Az)

Solve a magnetostatic model of a copper square with a permanent neodymium magnet in its center.

Create the unit square geometry with a circle in its center.

L = 0.8;
r = 0.25;
sq = [3 4 -L L L -L -L -L L L]';
circ = [1 0 0 r 0 0 0 0 0 0]';
gd = [sq,circ];
sf = "sq + circ";
ns = char('sq','circ');
ns = ns';
g = decsg(gd,sf,ns);

Plot the geometry with the face and edge labels.

pdegplot(g,"FaceLabels","on","EdgeLabels","on")

Create a magnetostatic model and include the geometry in the model.

emagmodel = createpde("electromagnetic","magnetostatic");
geometryFromEdges(emagmodel,g);

Specify the vacuum permeability value in the SI system of units.

emagmodel.VacuumPermeability = 1.2566370614e-6;

Specify the relative permeability of the copper for the square.

electromagneticProperties(emagmodel,"Face",1, ...
"RelativePermeability",1);

Specify the relative permeability of the neodymium for the circle.

electromagneticProperties(emagmodel,"Face",2, ...
"RelativePermeability",1.05);

Specify the magnetization magnitude for the neodymium magnet.

M = 1e6;

Specify magnetization on the circular face in the positive x-direction. Magnetization for a 2-D model is a column vector of two elements.

dir = [1;0];
electromagneticSource(emagmodel,"Face",2,"Magnetization",M*dir);

Apply the magnetic potential boundary conditions on the edges framing the square.

electromagneticBC(emagmodel,"Edge",1:4,"MagneticPotential",0);

Generate the mesh with finer meshing near the edges of the circle.

generateMesh(emagmodel,"Hedge",{5:8,0.007});
figure
pdemesh(emagmodel)

Solve the model, and find the resulting magnetic fields B and H. Here, $\mathit{B}=\mu \mathit{H}+{\mu }_{0}\mathit{M}$, where $\mu$ is the absolute magnetic permeability of the material, ${\mu }_{0}$ is the vacuum permeability, and $\mathit{M}$ is the magnetization.

R = solve(emagmodel);
Bmag = sqrt(R.MagneticFluxDensity.Bx.^2 + R.MagneticFluxDensity.By.^2);
Hmag = sqrt(R.MagneticField.Hx.^2 + R.MagneticField.Hy.^2);

Plot the magnetic field B.

figure
pdeplot(emagmodel,"XYData",Bmag, ...
"FlowData",[R.MagneticFluxDensity.Bx ...
R.MagneticFluxDensity.By])

Plot the magnetic field H.

figure
pdeplot(emagmodel,"XYData",Hmag, ...
"FlowData",[R.MagneticField.Hx R.MagneticField.Hy])

Version History

Introduced in R2021a
