# beamwidth

Compute and display beamwidth of a subarray

## Syntax

``beamwidth(subarray,freq)``
``beamwidth(subarray,freq,Name,Value)``
``[bw,angles] = beamwidth(___)``

## Description

example

````beamwidth(subarray,freq)` plots the 2-D power pattern (in dB) of the `subarray` for all azimuth angles at a fixed elevation angle of zero degrees. The plot displays the half-power beamwidth (in degrees) at the frequency specified in `freq` (in Hz) and the angles (in degrees) in azimuth at which the magnitude of the power pattern decreases by 3 dB from the peak of the main beam.```
````beamwidth(subarray,freq,Name,Value)` computes and plots the beamwidth with the specified parameter `Name` set to the specified `Value`. You can specify additional name-value pair arguments in any order as (`Name1,Value1,...,NameN,ValueN`).Example: `beamwidth(subarray,5e8,'Cut','Elevation')````

example

````[bw,angles] = beamwidth(___)` returns the angular beamwidth `bw` (in degrees). The function also returns the corresponding angle values (in degrees) of the beamwidth.```

## Examples

collapse all

Plot the beamwidth of a rectangular lattice array composed of two uniform rectangular arrays. Consider the antenna elements of the array to be cosine antenna elements.

First, construct a `phased.CosineAntennaElement` object.

`myAnt = phased.CosineAntennaElement`
```myAnt = phased.CosineAntennaElement with properties: FrequencyRange: [0 1.0000e+20] CosinePower: [1.5000 1.5000] ```

Next, construct a 5-by-5 uniform rectangular array by creating a `phased.URA` object.

```myArray = phased.URA([5 5],[0.5 0.5],'Element',myAnt,... 'ElementSpacing',[0.15 0.15])```
```myArray = phased.URA with properties: Element: [1x1 phased.CosineAntennaElement] Size: [5 5] ElementSpacing: [0.1500 0.1500] Lattice: 'Rectangular' ArrayNormal: 'x' Taper: 1 ```

Use two of these 5-by-5 uniform rectangular arrays to construct a 5-by-10 rectangular lattice. Construct the lattice using the `phased.ReplicatedSubarray` object.

```myRSA = phased.ReplicatedSubarray('Subarray',myArray,... 'Layout','Rectangular','GridSize',[1 2],... 'GridSpacing','Auto','SubarraySteering','Phase')```
```myRSA = phased.ReplicatedSubarray with properties: Subarray: [1x1 phased.URA] Layout: 'Rectangular' GridSize: [1 2] GridSpacing: 'Auto' SubarraySteering: 'Phase' PhaseShifterFrequency: 300000000 NumPhaseShifterBits: 0 ```

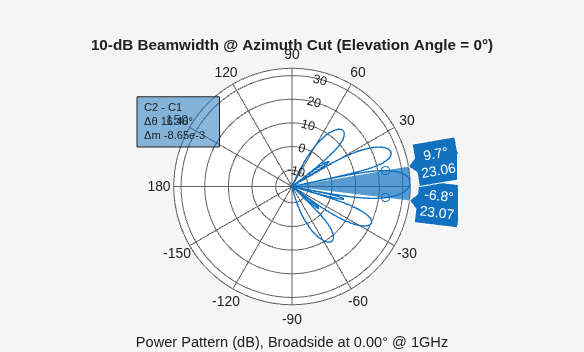

Now visualize the 10dB beamwidth of the obtained lattice across the azimuth plane (0 degrees elevation). The subarray is phase steered toward 24 degrees azimuth. Assume the operating frequency of the array to be 1 GHz.

```stv = phased.SteeringVector('SensorArray',myRSA); beamwidth(myRSA,1e9,'dBDown',10,'SteerAngle',24,'Weights',stv(1e9,24))``` ```ans = 16.4600 ```

Calculate the 3 dB beamwidth of a 10-element uniform linear array (ULA) composed of two 5-element ULAs across the azimuth plane and at 0 degrees elevation. By default, the antenna elements are isotropic. Assume the operating frequency of the array to be 500MHz.

`myArray = phased.ULA('NumElements',5)`
```myArray = phased.ULA with properties: Element: [1x1 phased.IsotropicAntennaElement] NumElements: 5 ElementSpacing: 0.5000 ArrayAxis: 'y' Taper: 1 ```
```myRSA = phased.ReplicatedSubarray('Subarray',myArray,... 'GridSize',[1 2])```
```myRSA = phased.ReplicatedSubarray with properties: Subarray: [1x1 phased.ULA] Layout: 'Rectangular' GridSize: [1 2] GridSpacing: 'Auto' SubarraySteering: 'None' ```
`[BW,Ang] = beamwidth(myRSA,5e8)`
```BW = 6.1200 ```
```Ang = 1×2 -3.0600 3.0600 ```

## Input Arguments

collapse all

Subarray of sensor elements, specified as one of the following System objects:

Frequency used to calculate the beamwidth, specified as a scalar in Hz.

Example: `5e8`

Data Types: `double`

### Name-Value Arguments

Specify optional comma-separated pairs of `Name,Value` arguments. `Name` is the argument name and `Value` is the corresponding value. `Name` must appear inside quotes. You can specify several name and value pair arguments in any order as `Name1,Value1,...,NameN,ValueN`.

Example: `beamwidth(subarray,5e8,'Cut','Azimuth','CutAngle',45)` plots the beamwidth of the subarray that is operating at a frequency of 0.5 GHz, with the slice direction set to `'Azimuth'`, and the cut angle set to 45 degrees.

The slice direction in azimuth-elevation space along which the beamwidth is computed, specified as the comma-separated pair consisting of `'Cut'` and `'Azimuth'` for the azimuth plane, and `'Cut'` and `'Elevation'` for the elevation plane.

Corresponding angle (in degrees) for the plane to get the required 2-D cut, specified as the comma-separated pair consisting of `'CutAngle'` and a scalar. If `'Cut'` is specified as `'Azimuth'`, then `'CutAngle'` (Elevation) should lie between [−90, 90] degrees. If `'Cut'` is specified as `'Elevation'`, then `'CutAngle'` (Azimuth) should lie between [−180, 180] degrees.

Data Types: `double`

Power value (in dB) from the peak of the main lobe, specified as the comma-separated pair consisting of `'dBDown'` and a positive scalar. The default value is 3 dB, which translates to half-power beamwidth. To calculate the first-null beamwidth, specify the `'dBDown'` value as `Inf`.

Data Types: `single` | `double` | `int8` | `int16` | `int32` | `int64` | `uint8` | `uint16` | `uint32` | `uint64`

Propagation speed, specified as the comma-separated pair consisting of `'PropagationSpeed'` and a positive scalar (in m/s).

Data Types: `double`

Weights applied to the array of sensor elements, specified as the comma-separated pair consisting of `'Weights'` and a length-N column vector, where N is the number of elements in the array.

Data Types: `double`

Subarray steering angle (in degrees), specified as the comma-separated pair consisting of `'SteerAngle'` and a scalar or a length-2 column vector. If the steering angle is a scalar, the value represents the azimuth angle and the elevation angle is assumed to be 0. If the steering angle is a vector, the angle is specified in the form of [AzimuthAngle; ElevationAngle].

#### Dependencies

This parameter is applicable when you set the `SubarraySteering` property of `subarray` object to either `'Phase'` or `'Time'`.

Data Types: `double`

Weights applied to each element in the subarray, specified as the comma-separated pair consisting of `'ElementWeights'` and a matrix or a cell array.

For a `ReplicatedSubarray` object, `ElementWeights` must be a NSE-by-N matrix, where NSE is the number of elements in each individual subarray and N is the number of subarrays. Each column in `ElementWeights` specifies the weights for the elements in the corresponding subarray.

For a `PartitionedArray` object, if the individual subarrays have the same number of elements, `ElementWeights` must be an NSE-by-N matrix, where NSE is the number of elements in each individual subarray and N is the number of subarrays.

Each column in the `WS` property of the `subarray` object specifies the weights for the elements in the corresponding subarray. If subarrays in the `PartitionedArray` object have different number of elements, `ElementWeights` can be one of the following:

• NSE-by-N matrix –– NSE indicates the number of elements in the largest subarray and N is the number of subarrays.

• 1-by-N cell array –– N is the number of subarrays and each cell contains a column vector whose length is the same as the number of elements of the corresponding subarray.

If `WS` is a matrix, the first K entries in each column specify the weights for the elements in the corresponding subarray. K is the number of elements in the corresponding subarray. If `WS` is a cell array, each cell in the array is a column vector specifying the weights for the elements in the corresponding subarray.

#### Dependencies

This parameter is applicable when you set the `SubarraySteering` property of `subarray` object to `'Custom'`.

Data Types: `double`

## Output Arguments

collapse all

Angular beamwidth of the subarray, returned as a scalar in degrees.

Data Types: `double`

Angle values of the beamwidth, returned as a 1-by-2 vector. The two elements in the vector [amin, amax] define the beamwidth `bw` as amaxamin.
