rfdivider

Create three-port Wilkinson power divider element for circuit object

Since R2023a

Description

Use the new rfdivider object to create a three-port Wilkinson power divider element. You can add this object to your circuit object to create an RF circuit.

Creation

Syntax

rfpd = rfdivider

rfpd = rfdivider(Name=Value)

Description

rfpd = rfdivider creates a three-port Wilkinson power divider element with default property values.

rfpd = rfdivider(Name=Value) sets Properties of the power divider element using one or more name-value arguments. For example, rfpd = rfdivider(Impedance=75) sets the impedance of the Wilkinson power divider element to 75 ohms. Properties not specified retain their default values.

Properties

Name — Name of Wilkinson power divider element

'Divider' (default) | string scalar | character vector

Name of the Wilkinson power divider element, specified as a string scalar or character vector.

Example: 'Divider_Wilk'

Data Types: char | string

Impedance — Reference impedance of Wilkinson power divider element

50 (default) | positive scalar

Reference impedance of the Wilkinson power divider element, specified as a positive scalar.

Example: 75

Data Types: double

NumPorts — Number of input and output ports

3 (default) | positive scalar

This property is read-only.

Number of input and output ports, returned as a positive scalar.

Data Types: double

Terminals — Terminals of Wilkinson power divider element

{'p1+' 'p2+' 'p3+' 'p1-' 'p2-' 'p3-'} (default) | cell array of strings

This property is read-only.

Terminals of the three-port Wilkinson power divider element, returned as a cell array of strings.

Data Types: string

Object Functions

sparameters	Calculate S-parameters for RF data, network, circuit, and matching network objects
circuit	Circuit object
clone	Create copy of existing circuit element or circuit object

Examples

Add Wilkinson Power Divider Element to Circuit Object

Create a default three-port Wilkinson power divider element.

pd = rfdivider(Name='rfdivider1');

Clone the three-port Wilkinson power divider element.

pd2 = clone(pd);
pd2.Name='rfdivider2';

Create an amplifier element of gain 12 dB.

amp = amplifier(Name='amplifier1',Gain=12);

Clone the amplifier element.

amp2 = clone(amp);
amp2.Name = 'amplifier2';

Create a circuit object.

ckt = circuit;

Add the divider named rfdivider1 to the circuit object.

add(ckt,[1 2 3],pd);

Add the amplifier named amplifer1 to the circuit object.

add(ckt,[2 4],amp);

Add the amplifier named amplifer2 to the circuit object.

add(ckt,[3 5],amp2);

Add the divider named rfdivider2 to the circuit object.

add(ckt,[6 4 5],pd2);

Use the setports function to set ports of the circuit object.

setports(ckt,[1 0],[6 0],{'in','out'});

Display the circuit object.

disp(ckt)

  circuit: Circuit element

    ElementNames: {'rfdivider1'  'amplifier1'  'amplifier2'  'rfdivider2'}
        Elements: [1x4 rf.internal.circuit.Element]
           Nodes: [0 1 2 3 4 5 6]
            Name: 'unnamed'

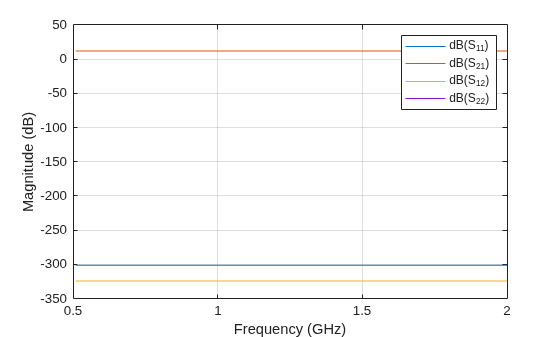

Plot the S-parameters of the circuit for frequencies between 0.51–11 GHz.

freq = linspace(0.51e9,2e9,11);
sparam = sparameters(ckt,freq);
rfplot(sparam)

Version History

Introduced in R2023a
