Resonators

Ring resonator, square resonator

Microwave resonators are used in a variety of applications, including filters, oscillators, frequency meters, and tuned amplifiers. Resonant structures such as rectangular, circular, and ring resonators are widely used in oscillators and filters.

Resonators Catalog

Ring Resontor

resonatorRing

Resonator Square

resonatorSplitRingSquare

Resonator Custom

resonatorSplitRingCustom

Objects

`resonatorRing`	Create gap-coupled ring resonator in microstrip form (Since R2022b)

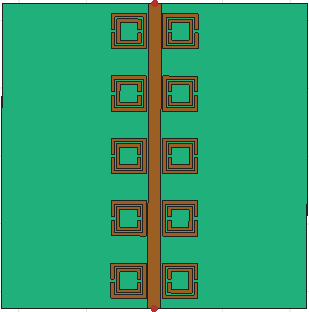

`resonatorSplitRingSquare`	Create microstrip line loaded with square split-ring resonator (Since R2022b)

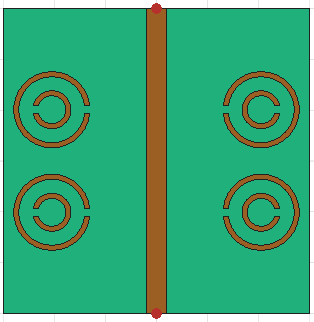

`resonatorSplitRingCustom`	Create custom split-ring resonator in microstrip form (Since R2023a)

Functions

`show`	Display PCB component structure or PCB shape (Since R2021b)
`info`	Display information about PCB component structure (Since R2021b)
`designCoupledLine`	Calculate dimensions of coupled-line section for specified frequency (Since R2022a)
`designUncoupledLine`	Calculate dimensions of uncoupled-line section for specified frequency (Since R2022a)
`designOutputLine`	Calculate dimensions of output line section for specified frequency (Since R2022a)
`shapes`	Extract all metal layer shapes of PCB component (Since R2021b)
