UCIe 2.0 Compliance Kit

This example shows you how to implement a Universal Chiplet Interconnect Express (UCIe) Revision 2.0 (Specification Version 1.0) interface for pre-layout analysis or post-layout verification using Parallel Link Designer.

This UCIe signal integrity compliance kit includes transfer nets, mask compliance checks, waveform processing levels and generic IBIS-AMI models for a UCIe interface. This includes generic buffer models for the UCIe transmitter and receiver. You can modify the kit to match your specific design implementation and perform complete pre-layout solution space analysis and/or full post-layout verification for waveform quality and compliance margins.

Open Compliance Kit

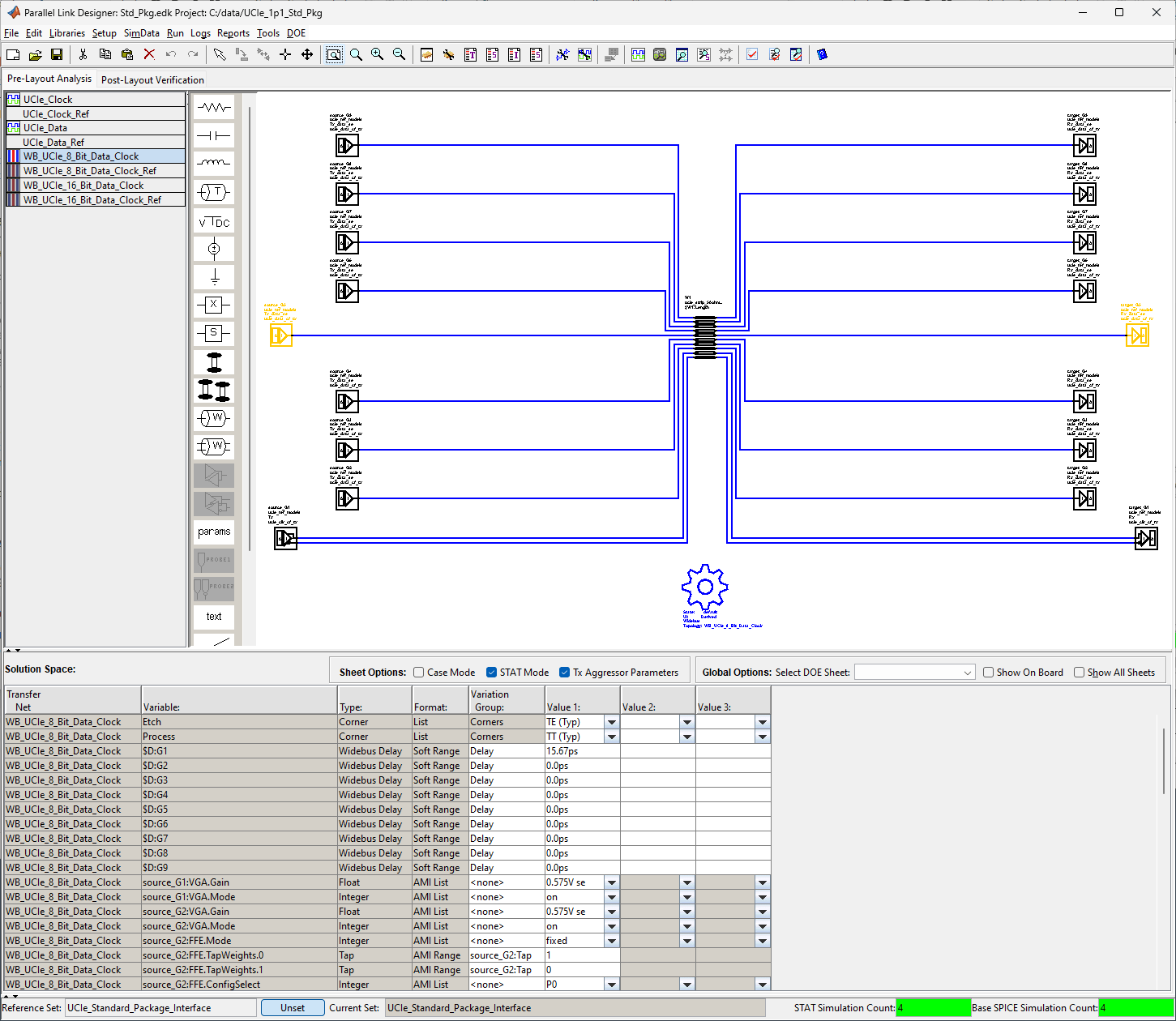

You can open the compliance kit in the Parallel Link Designer app using the openSignalIntegrityKit function.

>> openSignalIntegrityKit("UCIe_Std_Pkg");

Kit Overview

For more information about this UCIe signal integrity compliance kit, including block diagrams, system configurations, transfer nets and libraries, refer to the document UCIe_r2p0_v1p0.pdf that is attached to this example as a supporting file. This kit also includes a MATLAB function that calculates the Voltage Transfer Function (VTF) of any coupled UCIe simulation. See the kit document for details.

References

[1] UCIe Revision 2.0 (Specification Version 1.0): https://www.uciexpress.org
