winwrite

Class: sigwin.tukeywin
Namespace: sigwin

Save Tukey window in ASCII file

Syntax

winwrite(H)
winwrite(H,'filename')


Description

winwrite(H) opens a dialog box to export the values of the Tukey window object to an ASCII file. The file extension .wf is automatically appended.

winwrite(H,'filename') saves the values of the Tukey window object H in the current folder as a column vector in the ASCII file 'filename'. The file extension .wf is automatically appended to filename.

Examples

Tukey Windows

Generate two Tukey windows of length N = 64:

• The first window has α = 1/4. α is the ratio of tapered window section length to constant section length.

• The second window has α = 3/4.

Display the two windows.

H14 = sigwin.tukeywin(64,1/4);
H34 = sigwin.tukeywin(64,3/4);

wvt = wvtool(H14,H34);
legend(wvt.CurrentAxes,'\alpha = 1/4','\alpha = 3/4')

Generate a Tukey window with length N = 16 and the default α = 1/2. Return its values as a column vector. Show information about the window object. Display the window.

H = sigwin.tukeywin(16);

win = generate(H)

win = 16×1

         0
    0.1654
    0.5523
    0.9045
    1.0000
    1.0000
    1.0000
    1.0000
    1.0000
    1.0000
    1.0000
    1.0000
    0.9045
    0.5523
    0.1654
      ⋮

wininfo = info(H)

wininfo = 4×13 char array
    'Tukey Window '
    '------------ '
    'Length  : 16 '
    'Alpha   : 0.5'

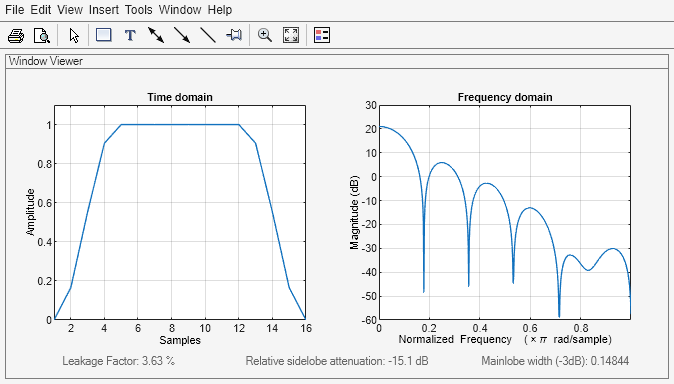

wvtool(H)
