This example shows a queuing system in which feedback influences the arrival rate. The goal of the feedback loop is to stabilize the entity queue by slowing the entity generation rate of the Entity Generator block as more entities accumulate in the Entity Queue block and the Entity Server block.

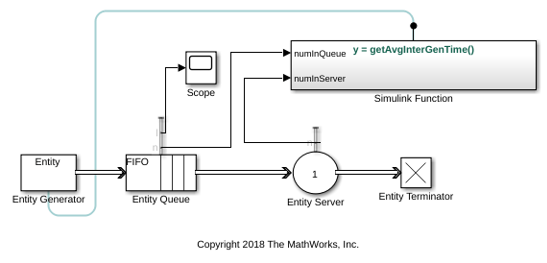

The diagram shows a simple queuing system with an Entity Generator, an Entity Queue, an Entity Server, and an Entity Terminator block. For more information about building this simple queuing system, see Create a Discrete-Event Model.
The capacity of the Entity Server block is
causes an increase in the queue length without feedback. The goal is to regulate entity
intergeneration time based on the size of the queue and the number of entities waiting to
To open the example, see
Example Model for Discouraged Arrival.
In the Entity Generator block, select
action as the Time source. Add this code to the
Intergeneration time action field.
persistent rngInit; if isempty(rngInit) seed = 12345; rng(seed); rngInit = true; end % Pattern: Exponential distribution mu = getAvgInterGenTime(); dt = -mu*log(1-rand());
The entity intergeneration time
dt is generated from an
exponential distribution with mean
mu, which is determined by the
In the Entity Queue block, in the Statistics tab, select the Number of entities in block, n, and Average queue length, l as output statistics.
In the Entity Server block, select
action as the Service time source. Add this
code to the Service time action field.
persistent rngInit; if isempty(rngInit) seed = 67868; rng(seed); rngInit = true; end % Pattern: Exponential distribution mu = 3; dt = -mu*log(1-rand());
The service time
dt is drawn from an exponential distribution
In the Entity Server block, in the Statistics tab, select the Number of entities in block, n, as output statistics.
Add a Simulink Function block from the
SimEvents® library. On the Simulink Function block, double-click
the function signature and enter
y = getAvgInterGenTime().

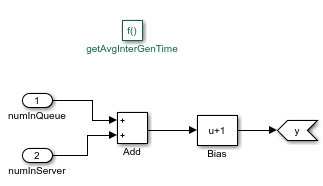

In the Simulink Function block:
Add two In1 blocks and rename them as
numInQueue represents the current number of entities
accumulated in the queue and
numInServer represents the
current number of entities accumulated in the server.
Add a Simulink® Add block to add these two inputs.
Add a Simulink
Bias block and set the Bias parameter as
The constant bias
1 is to guarantee a nonzero
Optionally, select Display > Function Connections from the main menu to display the feedback loop from the Simulink Function block to the Entity Generation block.
In the parent model, connect the Number of entities in block, n statistics from the Entity Queue and Entity Server blocks to the Simulink Function block.
Connect a Simulink Scope block to the Average queue length, l statistic from the Entity Queue block.
The goal is to investigate the average queue length.
Increase the simulation time to
10000 and simulate the

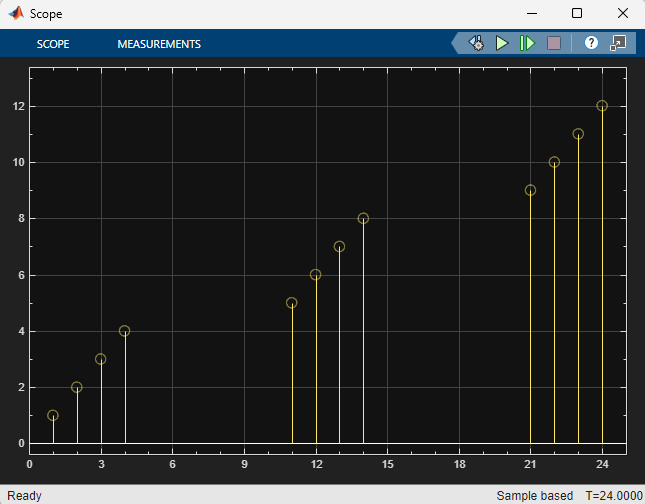

Observe that the Average queue length, l in the scope is nonincreasing due to the effect of feedback for the discouraged entity generation rate.
