Transducer Gain TestBench

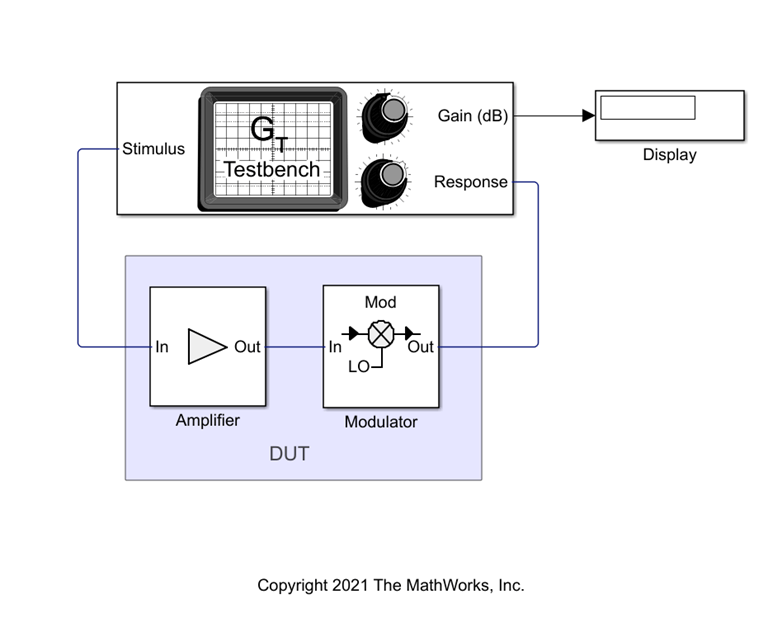

Use the Transducer Gain Testbench block to verify the gain of an Amplifier block.

Open the model and change the gain of the amplifier block to 20 dB.


Run the model. You will see that the output display shows a gain of 20 dB.

The scope response shows a gain of 20 dBm at 2.1 GHz, which is the specified frequency in the testbench dialogue box.
