Sistemas mecánicos de traslación basados en la posición
Explore ejemplos que utilizan la biblioteca y el dominio mecánico de traslación basado en la posición. Para obtener más información sobre el marco de modelado basado en la posición, sus conceptos y convenciones, consulte Modeling Position-Based Mechanical Translational Systems. Luego, revise los ejemplos en el orden en que se enumeran.
Temas
- Modeling Position-Based Mechanical Translational Systems
Steps and guidelines for position-based mechanical translational modeling.
Ejemplos destacados
Force Flow in the Position-Based Translational Domain
Describes how to interpret forces in a Simscape™ position-based mechanical translational network. The example summarizes rules for interpreting the signs of logged forces and then considers forces in three types of systems: springs being pulled or pushed from different ends, simple systems with external forces applied at a mid-point, and a more complex system with an external force applied at the mid-point.
Gravity and Friction in the Position-Based Translational Domain
Configure gravity and gravity-induced friction effects in a position-based mechanical translational network.

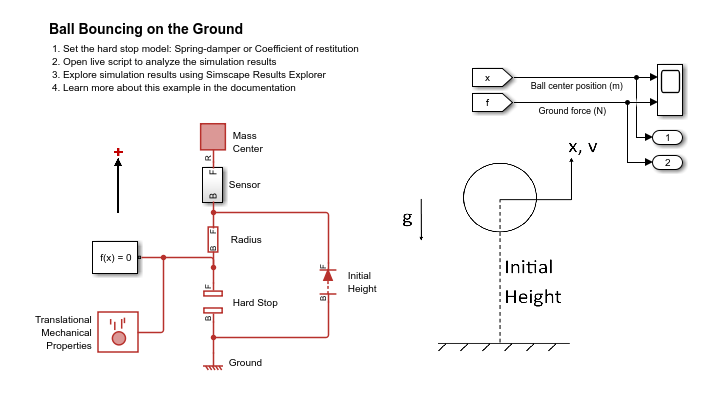

Hard Stops in the Position-Based Translational Domain
Configure Translational Hard Stop (PB) blocks in several simple position-based mechanical translational models and interpret the model behavior. This example describes how to model systems with upper and lower bounds, choose a hard stop model parameterization, set initial targets for variables, and interpret the logged forces.

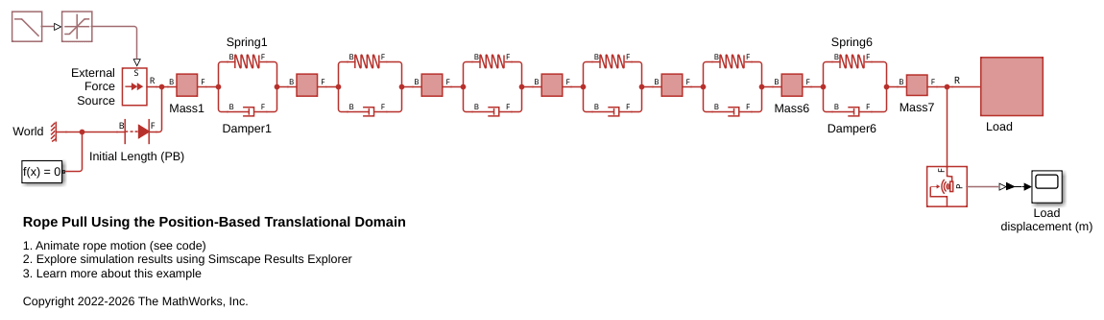

Rope Pull In the Position-Based Translational Domain
A force pulling on the end of a cable or rope that has a large load on its other end. The rope is modeled with distributed mass and elasticity using Mass With Length (PB), Translational Spring (PB), and Translational Damper (PB) blocks. When the force increases from 0 N to 1,000 N, it excites longitudinal vibrations in the rope.
