Check Discrete Gradient

Check that absolute value of difference between successive samples of discrete signal is less than specified value

•

Libraries:
Simulink / Model Verification
HDL Coder / Model Verification

Description

The Check Discrete Gradient block checks each signal element and determines whether the absolute value of the difference between successive values of the element is less than an specified value. The block then executes an assertion after comparison. You can specify the value of gradient (1 by default) by adjusting the Maximum gradient parameter. If the input signal difference is less than the absolute value of the Maximum gradient, the assertion is true (1) and the block does nothing. If not, the block halts the simulation and returns an error message by default.

Note

To run simulations, the Check Discrete Gradient block requires a fixed-step discrete solver. If another solver is selected, an error prompts.

Examples

Check Signal Slope with Check Discrete Gradient Block

Using the Check Discrete Gradient block, you can check if the absolute value of the difference between successive samples of a signal is less than a defined value.

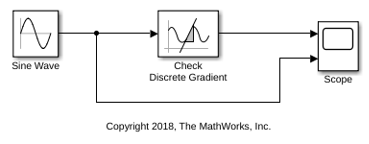

In this example, the Check Discrete Gradient block compares the value of an input signal from a Sine Wave block to the Maximum gradient parameter value, which is 0.1. If the absolute value of the difference between successive samples of the signal is less than 0.1, the block asserts true (1). Because the Output assertion signal parameter of the block is selected, the block outputs the assertion value. The block requires a fixed-step discrete solver, which has been selected in the model. Run the simulation to observe the model output.

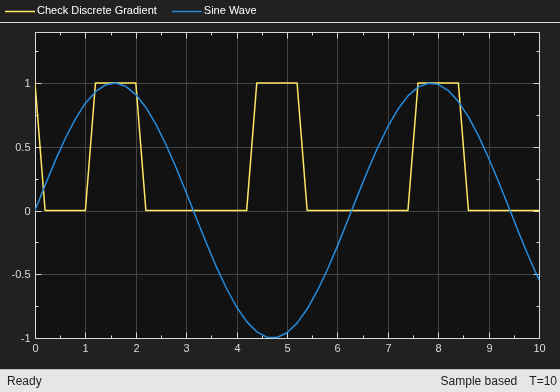

The block asserts true when the sine wave is near a maximum or minimum. In these sections of the signal, the absolute value of the gradient is less than the Maximum gradient value 0.1. This pattern repeats until the simulation end time.

Ports

Input

Port_1 — Input signal checked against gradient

scalar | vector | matrix

Input signal the block checks to determine if the difference of each element between successive samples is less than the absolute value of the Maximum gradient parameter.

Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64 | fixed point

Output

Port_1 — Assertion output signal

scalar

Output signal that is true (1) if the assertion succeeds, and false (0) if the assertion fails. If, in the Configuration Parameters window, in the Math and Data Types section, under Advanced parameters, you select Implement logic signals as Boolean data, then the output data type is Boolean. Otherwise, the data type of the signal is double.

Dependencies

To enable this output port, select the Output assertion signal parameter check box.

Data Types: double | Boolean

Parameters

Maximum gradient — Maximum value of allowed differences

1 (default) | scalar

Specify the value on the allowed gradient of the input signal.

Programmatic Use

Parameter: gradient

Type: string scalar or character vector

Values: real scalar

Default: "1"

Enable assertion — Enable or disable check

on (default) | off

Clearing this parameter disables the block and causes the model to behave as if the block does not exist. To enable or disable all verification blocks, regardless of the setting of this option, go to the Configuration Parameters window, click Diagnostics > Data Validity, expand the Advanced parameters section, and set Model Verification block enabling to Enable all or Disable all.

Programmatic Use

Parameter: enabled

Type: string scalar or character vector

Values: "on" | "off"

Default: "on"

Simulation callback when assertion fails (optional) — Expression to evaluate when assertion fails

"" (default) | MATLAB expression

Specify a MATLAB^® expression to evaluate when the assertion fails. Because the expression is evaluated in the MATLAB workspace, define all variables used in the expression in that workspace.

Dependencies

To enable this parameter, select Enable assertion.

Programmatic Use

Parameter: callback

Type: string scalar or character vector

Default: ""

Stop simulation when assertion fails — Whether to stop simulation when check fails

on (default) | off

Select this parameter to stop the simulation when the check fails. Clear this parameter to display a warning and continue the simulation.

Programmatic Use

Parameter: stopWhenAssertionFail

Type: string scalar or character vector

Values: "on" | "off"

Default: "on"

Output assertion signal — Create output signal

off (default) | on

Select this parameter to enable the output port.

Programmatic Use

Parameter: export

Type: string scalar or character vector

Values: "on" | "off"

Default: "off"

Select icon type — Select icon type

graphic (default) | text

Specify the style of the block icon. The graphic option displays a graphical representation of the assertion condition on the icon. The text option displays a mathematical expression that represents the assertion condition.

Programmatic Use

Parameter: icon

Type: string scalar or character vector

Values: "graphic" | "text"

Default: "graphic"

Block Characteristics

Data Types	double | fixed point | integer | single
Direct Feedthrough	no
Multidimensional Signals	yes
Variable-Size Signals	no
Zero-Crossing Detection	no

Extended Capabilities

C/C++ Code Generation

Generate C and C++ code using Simulink® Coder™.

For information about how Simulink^® Coder™ generated code handles Model Verification blocks, see Configure Model for Debugging (Simulink Coder).

Not recommended for production code.

HDL Code Generation

Generate VHDL, Verilog and SystemVerilog code for FPGA and ASIC designs using HDL Coder™.

HDL Coder™ provides additional configuration options that affect HDL implementation and synthesized logic.

HDL Architecture

Architecture	Description
No HDL	Do not generate HDL code for this block.

HDL Block Properties

PreserveUpstreamLogic

Control the removal of unconnected logic. The default is off, which means unconnected logic is not preserved in HDL code. For more details, see PreserveUpstreamLogic (HDL Coder).

PLC Code Generation
Generate Structured Text code using Simulink® PLC Coder™.

Fixed-Point Conversion
Design and simulate fixed-point systems using Fixed-Point Designer™.

Version History

Introduced before R2006a
