# Learn and Apply Constraints for PID Controllers

This example shows how to learn constraints from data and apply these constraints for a PID control application. First, you learn the constraint function using a deep neural network, which requires Deep Learning Toolbox™ software. You then apply the constraints to the PID control actions using the Constraint Enforcement block.

For this example, the plant dynamics are described by the following equations .

`$\begin{array}{l}{\underset{}{\overset{˙}{x}}}_{1}=-{x}_{1}+\left({x}_{1}^{2}+1\right){u}_{1}\\ {\underset{}{\overset{˙}{x}}}_{2}=-{x}_{2}+\left({x}_{2}^{2}+1\right){u}_{2}\end{array}$`

The goal for the plant is to track the following trajectories.

`$\begin{array}{l}\underset{}{\overset{˙}{\theta }}=0.1\pi \\ {\underset{}{\overset{˙}{x}}}_{1d}=-r\mathrm{cos}\left(\theta \right)\\ {\underset{}{\overset{˙}{x}}}_{2d}=r\mathrm{sin}\left(\theta \right)\end{array}$`

For an example that applies a known constraint function to the same PID control application, see Enforce Constraints for PID Controllers.

Set the random seed and configure model parameters and initial conditions.

```rng(0); % Random seed r = 1.5; % Radius for desired trajectory Ts = 0.1; % Sample time Tf = 22; % Duration x0_1 = -r; % Initial condition for x1 x0_2 = 0; % Initial condition for x2 maxSteps = Tf/Ts; % Simulation steps```

### Design PID Controllers

Before learning and applying constraints, design PID controllers for tracking the reference trajectories. The `trackingWithPIDs` model contains two PID controllers with gains tuned using the PID Tuner app. For more information on tuning PID controllers in Simulink models, see Introduction to Model-Based PID Tuning in Simulink.

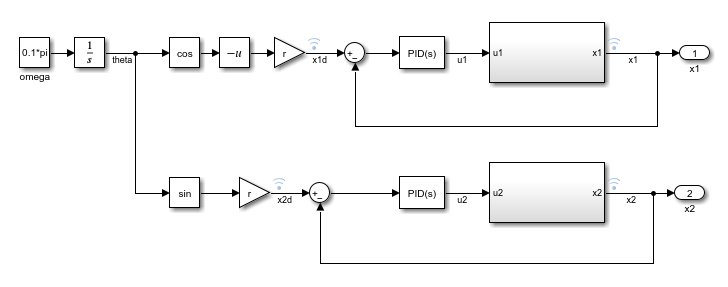

```mdl = 'trackingWithPIDs'; open_system(mdl)``` Simulate the PID controllers and plot their tracking performance.

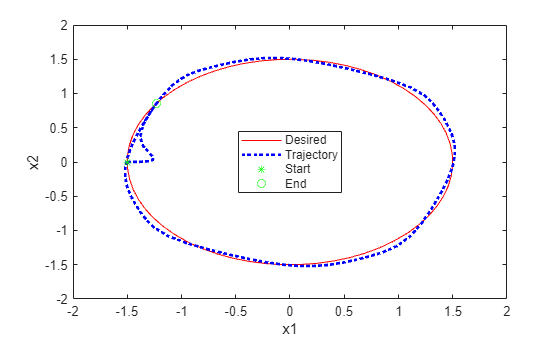

```% Simulate the model. out = sim(mdl); % Extract trajectories. logData = out.logsout; x1_traj = logData{3}.Values.Data; x2_traj = logData{4}.Values.Data; x1_des = logData{1}.Values.Data; x2_des = logData{2}.Values.Data; % Plot trajectories. figure('Name','Tracking') xlim([-2,2]) ylim([-2,2]) plot(x1_des,x2_des,'r') xlabel('x1') ylabel('x2') hold on plot(x1_traj,x2_traj,'b:','LineWidth',2) hold on plot(x1_traj(1),x2_traj(1),'g*') hold on plot(x1_traj(end),x2_traj(end),'go') legend('Desired','Trajectory','Start','End')``` ### Constraint Function

In this example, you learn application constraints and modify the control actions of the PID controllers to satisfy these constraints.

The feasible region for the plant is given by the constraints $\left\{\mathit{x}:{\mathit{x}}_{1}\le 1,{\mathit{x}}_{2}\le 1\right\}$. Therefore, the trajectories ${\mathit{x}}_{\mathit{k}+1}={\left[{\mathit{x}}_{1}\left(\mathit{k}+1\right)\text{\hspace{0.17em}}{\mathit{x}}_{2}\left(\mathit{k}+1\right)\right]}^{\prime }$ must satisfy ${\mathit{x}}_{\mathit{k}+1}\le 1$.

You can approximate the plant dynamics by the following equation.

`${\mathit{x}}_{\mathit{k}+1}\approx \mathit{A}{\mathit{x}}_{\mathit{k}}+\left[\begin{array}{cc}{\mathit{g}}_{1}\left({\mathit{x}}_{\mathit{k}}\right)& 0\\ 0& {\mathit{g}}_{2}\left({\mathit{x}}_{\mathit{k}}\right)\end{array}\right]{\mathit{u}}_{\mathit{k}}$`

Applying the constraints to this equation produces the following constraint function.

`$\mathit{A}{\mathit{x}}_{\mathit{k}}+\left[\begin{array}{cc}{\mathit{g}}_{1}\left({\mathit{x}}_{\mathit{k}}\right)& 0\\ 0& {\mathit{g}}_{2}\left({\mathit{x}}_{\mathit{k}}\right)\end{array}\right]{\mathit{u}}_{\mathit{k}}\le \left[\begin{array}{c}1\\ 1\end{array}\right]$`

The Constraint Enforcement block accepts constraints of the form ${\mathit{f}}_{\mathit{x}}+{\mathit{g}}_{\mathit{x}}\mathit{u}\le \mathit{c}$. For this application, the coefficients of this constraint function are as follows.

`${\mathit{f}}_{\mathit{x}}=\mathit{A}{\mathit{x}}_{\mathit{k}}\text{\hspace{0.17em}},\text{\hspace{0.17em}}{\mathit{g}}_{\mathit{x}}=\left[\begin{array}{cc}{\mathit{g}}_{1}\left({\mathit{x}}_{\mathit{k}}\right)& 0\\ 0& {\mathit{g}}_{2}\left({\mathit{x}}_{\mathit{k}}\right)\end{array}\right],\text{\hspace{0.17em}}\mathit{c}=\left[\begin{array}{c}1\\ 1\end{array}\right]$`

### Learn Constraint Function

For this example, the coefficients of the constraint function are unknown. Therefore, you must derive them from training data. To collect training data, use the `rlCollectDataPID` model. This model allows you to pass either zero or random inputs to the plant model and record the resulting plant outputs.

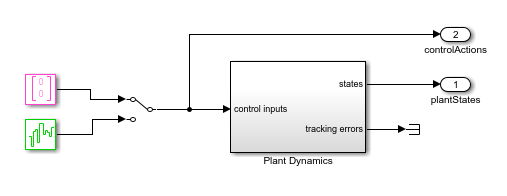

```mdl = 'rlCollectDataPID'; open_system(mdl)``` To learn the unknown matrix $\mathit{A}$, set the plant inputs to zero. When you do so, the plant dynamics become ${\mathit{x}}_{\mathit{k}+1}\approx \mathit{A}{\mathit{x}}_{\mathit{k}}$.

```mdl = 'rlCollectDataPID'; open_system(mdl)```

Collect training data using the `collectDataPID` helper function. This function simulates the model multiple times and extracts the input/output data. The function also formats the training data into an array with six columns: ${\mathit{x}}_{1}\left(\mathit{k}\right)$, ${\mathit{x}}_{2}\left(\mathit{k}\right)$, ${\mathit{u}}_{1}\left(\mathit{k}\right)$, ${\mathit{u}}_{2}\left(\mathit{k}\right)$, ${\mathit{x}}_{1}\left(\mathit{k}+1\right)$, and ${\mathit{x}}_{2}\left(\mathit{k}+1\right)$.

```numSamples = 1000; data = collectDataPID(mdl,numSamples);```

Find a least-squares solution for $\mathit{A}$ using the input/output data.

```inputData = data(:,1:2); outputData = data(:,5:6); A = inputData\outputData;```

Collect the training data. To learn the unknown function ${\mathit{g}}_{\mathit{x}}$, configure the model to use random input values that follow a normal distribution.

```% Configure model to use random input data. blk = [mdl '/Manual Switch']; set_param(blk,'sw','0'); % Collect data. data = collectDataPID(mdl,numSamples);```

Train a deep neural network to approximate the ${\mathit{g}}_{\mathit{x}}$ function using the `trainConstraintPID` helper function. This function formats the data for training then creates and trains a deep neural network. Training a deep neural network requires Deep Learning Toolbox software.

The inputs to the deep neural network are the plant states. Create the input training data by extracting the collected state information.

`inputData = data(:,1:2);`

Since the output of the deep neural network corresponds to ${\mathit{g}}_{\mathit{x}}$, you must derive output training data using the collected input/output data and the computed $\mathit{A}$ matrix.

```u = data(:,3:4); x_next = data(:,5:6); fx = (A*inputData')'; outputData = (x_next - fx)./u;```

For this example, to ensure reproducibility, load a pretrained network. To train the network yourself, set `trainConstraint` to `true`.

```trainConstraint = false; if trainConstraint network = trainConstraintPID(inputData,outputData); else load trainedNetworkPID network end```

The following figure shows an example of the training progress. ### Simulate PID Controllers with Constraint Enforcement

To simulate the PID controllers with constraint enforcement, use the `trackingWithLearnedConstraintPID` model. This model constrains the controller outputs before applying them to the plant.

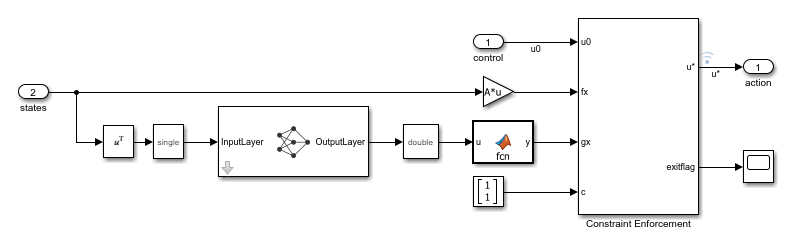

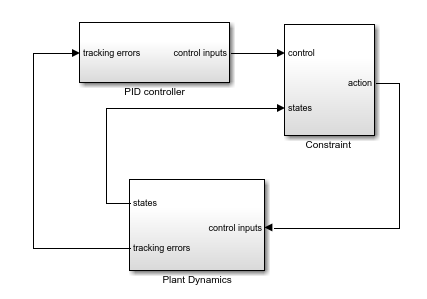

```mdl = 'trackingWithLearnedConstraintPID'; open_system(mdl)``` To view the constraint implementation, open the Constraint subsystem. Here, the trained deep neural network approximates ${\mathit{g}}_{\mathit{x}}$ based on the current plant state, and the Constraint Enforcement block enforces the constraint function. Simulate the model and plot the results.

```% Simulate the model. out = sim(mdl); % Extract trajectories. logData = out.logsout; x1_traj = zeros(size(out.tout)); x2_traj = zeros(size(out.tout)); for ct = 1:size(out.tout,1) x1_traj(ct) = logData{4}.Values.Data(:,:,ct); x2_traj(ct) = logData{5}.Values.Data(:,:,ct); end x1_des = logData{2}.Values.Data; x2_des = logData{3}.Values.Data; % Plot trajectories. figure('Name','Tracking with Constraint'); plot(x1_des,x2_des,'r') xlabel('x1') ylabel('x2') hold on plot(x1_traj,x2_traj,'b:','LineWidth',2) hold on plot(x1_traj(1),x2_traj(1),'g*') hold on plot(x1_traj(end),x2_traj(end),'go') legend('Desired','Trajectory','Start','End','Location','best')``` The Constraint Enforcement block successfully constrains the control actions such that the plant states remain less than one.

```bdclose('rlCollectDataPID') bdclose('trackingWithLearnedConstraintPID')```

### References

 Robey, Alexander, Haimin Hu, Lars Lindemann, Hanwen Zhang, Dimos V. Dimarogonas, Stephen Tu, and Nikolai Matni. "Learning Control Barrier Functions from Expert Demonstrations." Preprint, submitted April 7, 2020. https://arxiv.org/abs/2004.03315
