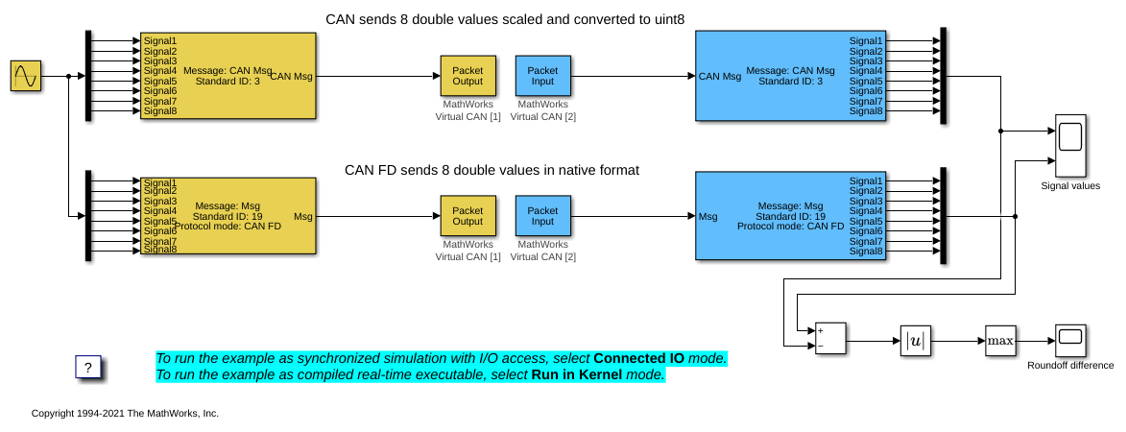

This example shows how to transfer data through CAN bus, utilizing the CAN_MESSAGE data type and the CAN Pack and CAN Unpack blocks available in Vehicle Network Toolbox™ block library. The CAN_MESSAGE data type can be directly processed by Simulink Desktop Real-Time™ blocks. The model sends data within one computer, from one virtual CAN channel to another. The two CAN channels can be either virtual channels or physical channels on a dual-channel CAN device. You can modify the model to communicate between two computers by splitting this model into its send and receive parts and running the models on two computers. The yellow blocks are used to send the data, the blue blocks are used to receive the data.
Note: This model runs on Microsoft Windows only.
To switch to normal mode if needed, double-click the orange button in the model.
To start the real-time execution, on the Simulation tab, click Run.
To switch to external mode if needed, double-click the orange button in the model.
To start the real-time execution, on the Desktop Real-Time tab, click Run in Real Time. The model builds, connects to Simulink in external mode, and starts.
These commands open the model and suppress warning about board not installed.
w = warning('off', 'sldrt:blkgui:boardnotonlist'); open_system(fullfile(matlabroot,'toolbox','sldrt','sldrtexamples','sldrtex_canmessage')); warning(w);
close_system(find_system(gcs ,'BlockType', 'Scope'));
clear close all bdclose all
