Reuse Desktop Test Cases for Real-Time Testing
Convert Desktop Test Cases to Real-Time
In the Test Manager, you can reuse test cases for real-time testing by converting desktop test cases to real-time test cases. For convenience, data can be stored externally so that each test case accesses common inputs and baseline data. The overall workflow is as follows:
Create a baseline, equivalence, or simulation test case with external inputs. For baseline tests, add baseline data from external files.
In the Test Manager, select the test case in the Test Browser.
Copy the test case. Right-click the test case and select Copy.
Paste the new test case into a test suite.
Rename the new test case.
Right-click the new test case, and select Convert to > Real-Time Test. For equivalence tests, select which simulation (simulation 1 or simulation 2) to run in real time.
Select the Target Computer and Load Application From options.
Ensure that the model settings are compatible with real-time test execution. For more information, see Development Computer Requirements (Simulink Real-Time).
Use External Data for Real-Time Tests
You can simplify test input data management by defining the input data in an external MAT or Excel® file. Map the data to root inports in your model or test harness for desktop simulation. When you convert the desktop simulation test case into a real-time test, the test case uses the same inport mapping.
Using external data depends on how your test case loads the real-time application:
Load Real-Time Application from Model
If you are using external data for a real-time test, loading the real-time application from the model gives you the option of using an Excel file, MAT file, or CSV file. The external data is built into the application, and you can rerun the application from the target application or target computer.
In the System Under Test section, set the application to load
Model. In the Inputs section of
the test case, click Add, and select an Excel file, MAT file, or CSV file. Map the data to your model inports. For
more information on input mapping, see Use External File Data in Test Cases.
Load Real-Time Application from Target Application or Target Computer
After running the test from the model, you can run the test from the target application or target computer without recompiling. The application uses the input mapping from when the test ran from the model.
You can map external data to a test case loaded from the target application or
target computer, without first running from the model. The external data must be in
a MAT file, in the same format used if the test is loaded from the model. In the
System Under Test section, select to load the application
Target Application or
Computer. In the Inputs section, click
Add and select a MAT file. The Input string is not
Reuse Desktop Test Case for Real-Time Testing
This example shows a basic desktop test case reuse workflow using external input data defined in an Excel file. You run the baseline test case on the desktop, update the baseline data, convert a copy of the test case to a real-time test, then run the test case on a target computer. The test file, baseline data, and Excel input data file are provided. This example runs only on Windows systems.
Open the Test Manager and Test File

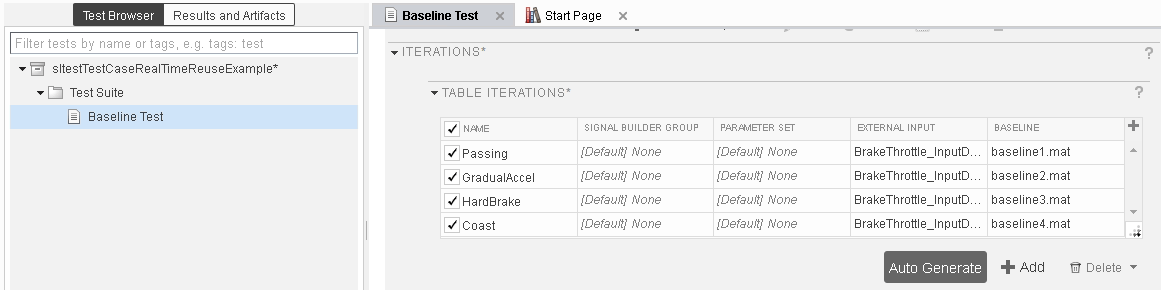

The test file runs a transmission shift controller algorithm through four iterations, each corresponding to a different test scenario: passing, gradual acceleration, hard braking, and coasting. Baseline data associated with each scenario for the signals
vehicle speed and
tf = sltest.testmanager.TestFile('sltestTestCaseRealTimeReuseExample.mldatx'); sltest.testmanager.load(tf.Name); sltest.testmanager.view;
Run the Baseline Test and View Results
Click Run in the toolbar.
When the test finishes running, select output torque under Baseline Criteria Result to view the comparison. The Passing result fails due to transient signals that fall outside the relative tolerance.
Update the Baseline
Assume that the transient signals are not significant, and update the baseline data:
Click Next Failure. The first failure region is bounded by data cursors.
Click Update Baseline > Replace Signal Segment in Baseline File from the toolstrip, and confirm that you want to overwrite the data.
Repeat this process for the other two failure regions.
Convert Baseline Test to Real-Time Test
In the Test Browser, right-click Baseline Test and select Copy.
Paste the new test case under the test suite.
Rename the new test case
RT Baseline Test.
Right-click RT Baseline Test and select Convert to > Real-Time Test.
Run the Real-Time Test Case

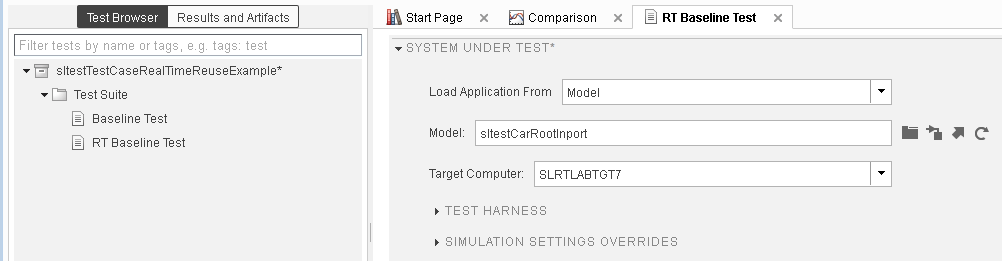

Set the Target Computer.
Set the system under test to load from
RT Baseline Testtest case.
Examine and Resolve Test Failures

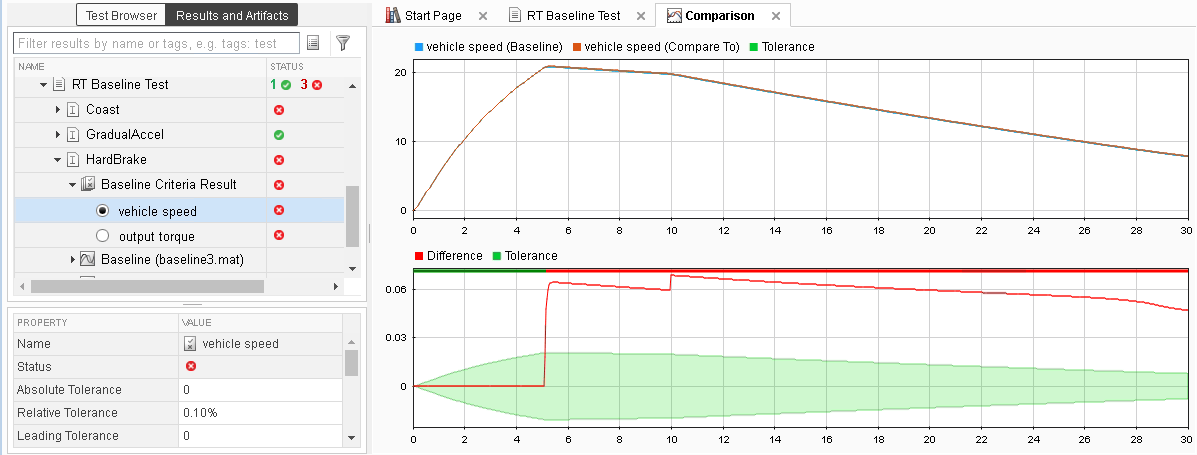

In this example, several of the scenarios fail due to timing impacts on the data output. For example, in the
HardBrake iteration, the
vehicle speed output falls outside the relative tolerance after the brake is applied. To resolve this failure, you could:
Increase the relative tolerance for the real-time test.
Create a separate set of baseline data for the real-time test.
