Floating Neutral (Three-Phase)
Internal floating neutral point for wye-connected network
Libraries:
Simscape /
Electrical /
Connectors & References
Description
The Floating Neutral (Three-Phase) block connects the individual phases of a three-phase system to form a floating neutral point.
Note
If you want to create a neutral point that you can connect to other blocks, use the Neutral Port (Three-Phase) block. If you want to create a neutral point that is connected to ground, use the Grounded Neutral (Three-Phase) block.

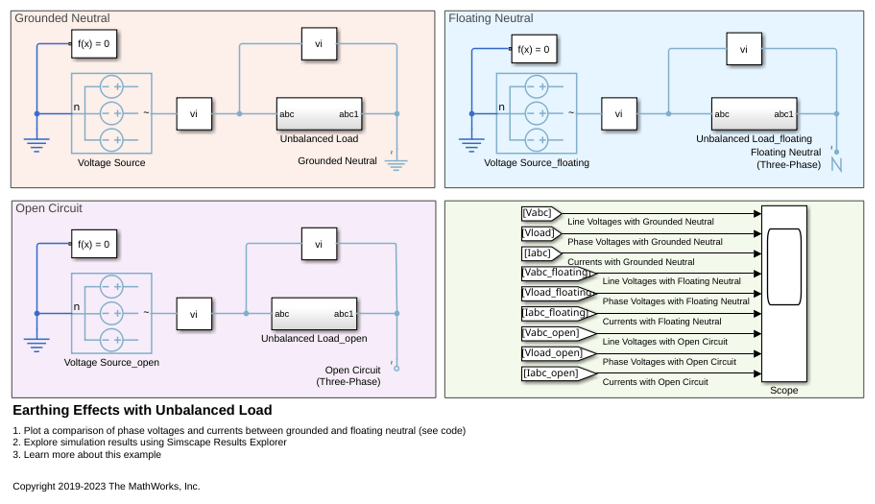

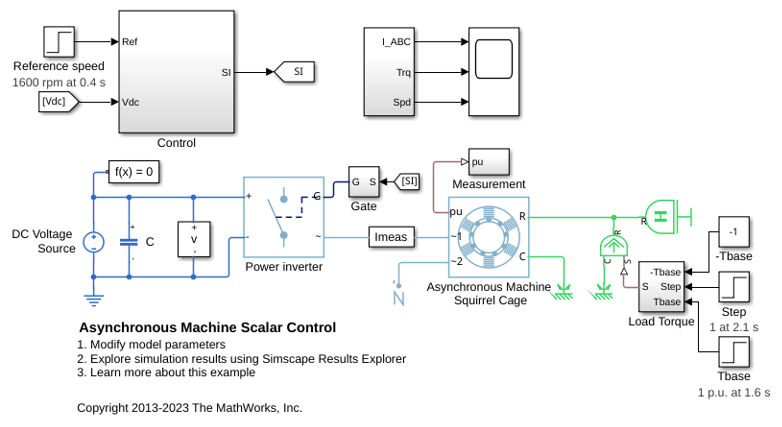

Examples
Ports
Conserving
Parameters
Extended Capabilities
Version History
Introduced in R2013b
