Assess Regression Neural Network Performance

Create a feedforward regression neural network model with fully connected layers using `fitrnet`. Use validation data for early stopping of the training process to prevent overfitting the model. Then, use the object functions of the model to assess its performance on test data.

Load the `carbig` data set, which contains measurements of cars made in the 1970s and early 1980s.

`load carbig`

Convert the `Origin` variable to a categorical variable. Then create a table containing the predictor variables `Acceleration`, `Displacement`, and so on, as well as the response variable `MPG`. Each row contains the measurements for a single car. Delete the rows of the table in which the table has missing values.

```Origin = categorical(cellstr(Origin)); Tbl = table(Acceleration,Displacement,Horsepower, ... Model_Year,Origin,Weight,MPG); Tbl = rmmissing(Tbl);```

Partition Data

Split the data into training, validation, and test sets. First, reserve approximately one third of the observations for the test set. Then, split the remaining data in half to create the training and validation sets.

```rng("default") % For reproducibility of the data partitions cvp1 = cvpartition(size(Tbl,1),"Holdout",1/3); testTbl = Tbl(test(cvp1),:); remainingTbl = Tbl(training(cvp1),:); cvp2 = cvpartition(size(remainingTbl,1),"Holdout",1/2); validationTbl = remainingTbl(test(cvp2),:); trainTbl = remainingTbl(training(cvp2),:);```

Train Neural Network

Train a regression neural network model by using the training set. Specify the `MPG` column of `tblTrain` as the response variable, and standardize the numeric predictors. Evaluate the model at each iteration by using the validation set. Specify to display the training information at each iteration by using the `Verbose` name-value argument. By default, the training process ends early if the validation loss is greater than or equal to the minimum validation loss computed so far, six times in a row. To change the number of times the validation loss is allowed to be greater than or equal to the minimum, specify the `ValidationPatience` name-value argument.

```Mdl = fitrnet(trainTbl,"MPG","Standardize",true, ... "ValidationData",validationTbl, ... "Verbose",1);```
```|==========================================================================================| | Iteration | Train Loss | Gradient | Step | Iteration | Validation | Validation | | | | | | Time (sec) | Loss | Checks | |==========================================================================================| | 1| 102.962345| 46.853164| 6.700877| 0.038357| 115.730384| 0| | 2| 55.403995| 22.171181| 1.811805| 0.014493| 53.086379| 0| | 3| 37.588848| 11.135231| 0.782861| 0.016707| 38.580002| 0| | 4| 29.713458| 8.379231| 0.392009| 0.002648| 31.021379| 0| | 5| 17.523851| 9.958164| 2.137584| 0.004489| 17.594863| 0| | 6| 12.700624| 2.957771| 0.744551| 0.001717| 14.209019| 0| | 7| 11.841152| 1.907378| 0.201770| 0.005371| 13.159899| 0| | 8| 10.162988| 2.542555| 0.576907| 0.001378| 11.352490| 0| | 9| 8.889095| 2.779980| 0.615716| 0.000750| 10.446334| 0| | 10| 7.670335| 2.400272| 0.648711| 0.000978| 10.424337| 0| |==========================================================================================| | Iteration | Train Loss | Gradient | Step | Iteration | Validation | Validation | | | | | | Time (sec) | Loss | Checks | |==========================================================================================| | 11| 7.416274| 0.505111| 0.214707| 0.006306| 10.522517| 1| | 12| 7.338923| 0.880655| 0.119085| 0.011787| 10.648031| 2| | 13| 7.149407| 1.784821| 0.277908| 0.001311| 10.800952| 3| | 14| 6.866385| 1.904480| 0.472190| 0.004741| 10.839202| 4| | 15| 6.815575| 3.339285| 0.943063| 0.000826| 10.031692| 0| | 16| 6.428137| 0.684771| 0.133729| 0.001599| 9.867819| 0| | 17| 6.363299| 0.456606| 0.125363| 0.001016| 9.720076| 0| | 18| 6.289887| 0.742923| 0.152290| 0.000700| 9.576588| 0| | 19| 6.215407| 0.964684| 0.183503| 0.000828| 9.422910| 0| | 20| 6.078333| 2.124971| 0.566948| 0.000897| 9.599573| 1| |==========================================================================================| | Iteration | Train Loss | Gradient | Step | Iteration | Validation | Validation | | | | | | Time (sec) | Loss | Checks | |==========================================================================================| | 21| 5.947923| 1.217291| 0.583867| 0.018753| 9.618400| 2| | 22| 5.855505| 0.671774| 0.285123| 0.007687| 9.734680| 3| | 23| 5.831802| 1.882061| 0.657368| 0.005029| 10.365968| 4| | 24| 5.713261| 1.004072| 0.134719| 0.005310| 10.314258| 5| | 25| 5.520766| 0.967032| 0.290156| 0.006936| 10.177322| 6| |==========================================================================================| ```

Use the information inside the `TrainingHistory` property of the object `Mdl` to check the iteration that corresponds to the minimum validation mean squared error (MSE). The final returned model `Mdl` is the model trained at this iteration.

```iteration = Mdl.TrainingHistory.Iteration; valLosses = Mdl.TrainingHistory.ValidationLoss; [~,minIdx] = min(valLosses); iteration(minIdx)```
```ans = 19 ```

Evaluate Test Set Performance

Evaluate the performance of the trained model `Mdl` on the test set `testTbl` by using the `loss` and `predict` object functions.

Compute the test set mean squared error (MSE). Smaller MSE values indicate better performance.

`mse = loss(Mdl,testTbl,"MPG")`
```mse = 7.4101 ```

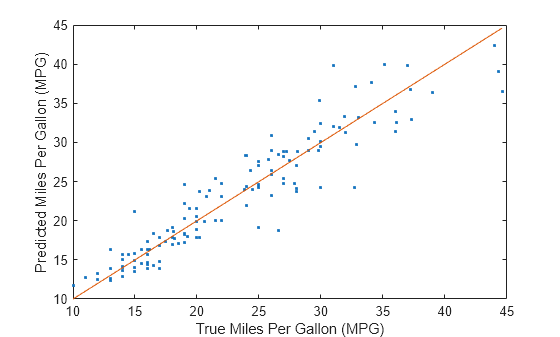

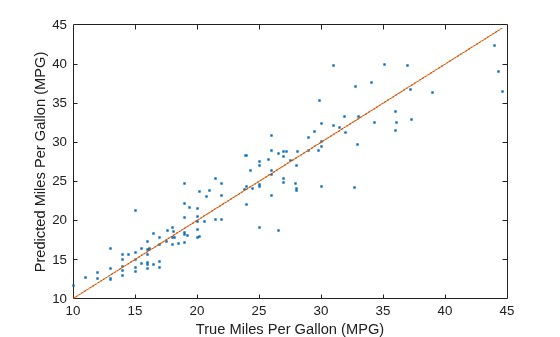

Compare the predicted test set response values to the true response values. Plot the predicted miles per gallon (MPG) along the vertical axis and the true MPG along the horizontal axis. Points on the reference line indicate correct predictions. A good model produces predictions that are scattered near the line.

```predictedY = predict(Mdl,testTbl); plot(testTbl.MPG,predictedY,".") hold on plot(testTbl.MPG,testTbl.MPG) hold off xlabel("True Miles Per Gallon (MPG)") ylabel("Predicted Miles Per Gallon (MPG)")```

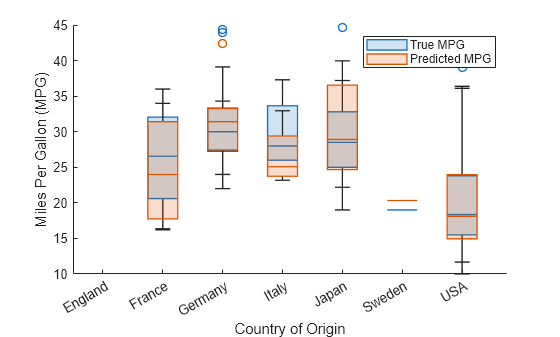

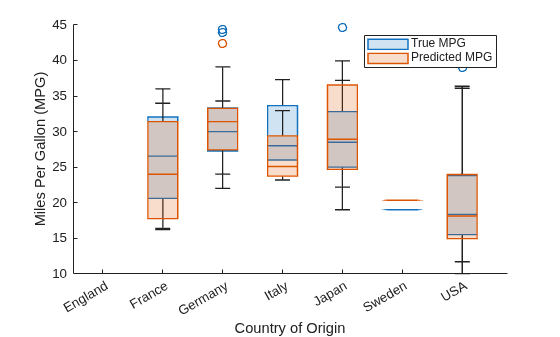

Use box plots to compare the distribution of predicted and true MPG values by country of origin. Create the box plots by using the `boxchart` function. Each box plot displays the median, the lower and upper quartiles, any outliers (computed using the interquartile range), and the minimum and maximum values that are not outliers. In particular, the line inside each box is the sample median, and the circular markers indicate outliers.

For each country of origin, compare the red box plot (showing the distribution of predicted MPG values) to the blue box plot (showing the distribution of true MPG values). Similar distributions for the predicted and true MPG values indicate good predictions.

```boxchart(testTbl.Origin,testTbl.MPG) hold on boxchart(testTbl.Origin,predictedY) hold off legend(["True MPG","Predicted MPG"]) xlabel("Country of Origin") ylabel("Miles Per Gallon (MPG)")```

For most countries, the predicted and true MPG values have similar distributions. Some discrepancies are possibly due to the small number of cars in the training and test sets.

Compare the range of MPG values for cars in the training and test sets.

```trainSummary = grpstats(trainTbl(:,["MPG","Origin"]),"Origin", ... "range")```
```trainSummary=6×3 table Origin GroupCount range_MPG _______ __________ _________ France France 2 1.2 Germany Germany 12 23.4 Italy Italy 1 0 Japan Japan 26 26.6 Sweden Sweden 4 8 USA USA 86 27 ```
```testSummary = grpstats(testTbl(:,["MPG","Origin"]),"Origin", ... "range")```
```testSummary=6×3 table Origin GroupCount range_MPG _______ __________ _________ France France 4 19.8 Germany Germany 13 20.3 Italy Italy 4 11.3 Japan Japan 26 25.6 Sweden Sweden 1 0 USA USA 82 29 ```

For countries like France, Italy, and Sweden, which have few cars in the training and test sets, the range of the MPG values varies significantly in both sets.

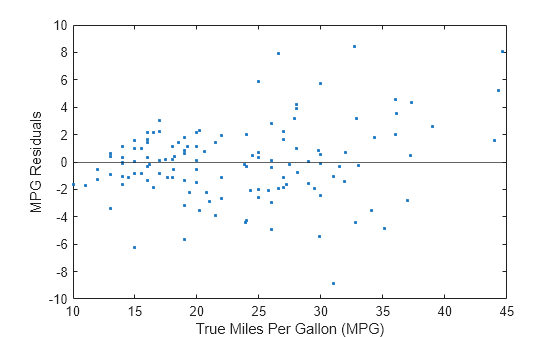

Plot the test set residuals. A good model usually has residuals scattered roughly symmetrically around 0. Clear patterns in the residuals are a sign that you can improve your model.

```residuals = testTbl.MPG - predictedY; plot(testTbl.MPG,residuals,".") hold on yline(0) hold off xlabel("True Miles Per Gallon (MPG)") ylabel("MPG Residuals")```

The plot suggests that the residuals are well distributed.

You can obtain more information about the observations with the greatest residuals, in terms of absolute value.

```[~,residualIdx] = sort(residuals,"descend", ... "ComparisonMethod","abs"); residuals(residualIdx)```
```ans = 130×1 -8.8469 8.4427 8.0493 7.8996 -6.2220 5.8589 5.7007 -5.6733 -5.4545 5.1899 ⋮ ```

Display the three observations with the greatest residuals, that is, with magnitudes greater than 8.

`testTbl(residualIdx(1:3),:)`
```ans=3×7 table Acceleration Displacement Horsepower Model_Year Origin Weight MPG ____________ ____________ __________ __________ ______ ______ ____ 17.6 91 68 82 Japan 1970 31 11.4 168 132 80 Japan 2910 32.7 13.8 91 67 80 Japan 1850 44.6 ```
