estimateCameraProjection
Estimate camera projection matrix from world-to-image point correspondences
Since R2022b
Syntax
Description
returns the camera projection matrix determined from known world points and their
corresponding image projections by using the direct linear transformation (DLT)
approach.camProjection
= estimateCameraProjection(imagePoints
,worldPoints
)
[
also returns the reprojection error that quantifies the accuracy of the projected image
coordinates.camProjection
,reprojectionErrors
] = estimateCameraProjection(imagePoints
,worldPoints
)

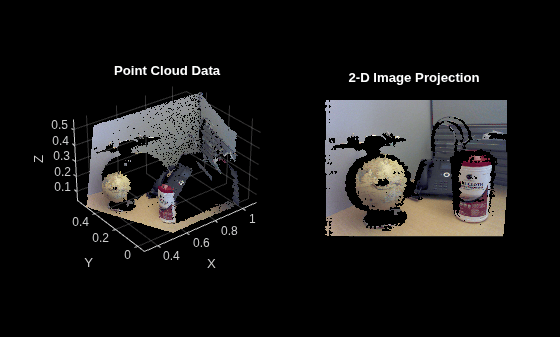

Examples
Input Arguments
Output Arguments
Tips
This function assumes the camera has negligible lens distortion. If there is lens distortion, calibrate the camera and use the
estworldpose
andcameraProjection
functions instead.If the camera intrinsics and extrinsics parameters are known, you can estimate the camera projection matrix using the
cameraProjection

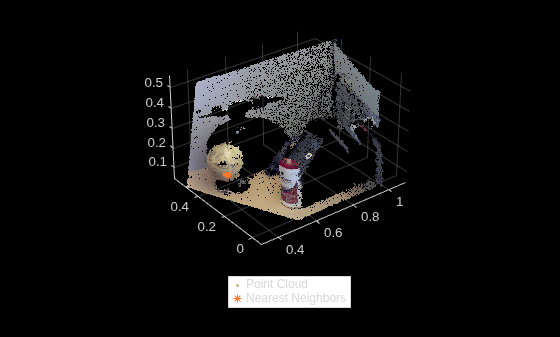

function.You can use the camera projection matrix,
camProjection
, with thefindNearestNeighbors
function to speed up the nearest neighbors search in a point cloud generated by an RGB-D sensor, such as Microsoft® Kinect®.
Algorithms
Given the world points X and the image points x, the camera projection matrix C, is obtained by solving the equation
λx = CX.
The equation is solved using the direct linear transformation (DLT) approach [1]. This approach formulates a homogeneous linear system of equations, and the solution is obtained through generalized eigenvalue decomposition.
Because the image point coordinates are given in pixel values, the approach for computing
the camera projection matrix is sensitive to numerical errors. To avoid numerical errors, the
input image point coordinates are normalized, so that their centroid is at the origin. Also,
the root mean squared distance of the image points from the origin is
sqrt(2)
. These steps summarize the process for estimating the camera
projection matrix.
Normalize the input image point coordinates with transform T.
Estimate camera projection matrix CN from the normalized input image points.
Compute the denormalized camera projection matrix C as CNT-1.
Compute the reprojected image point coordinates xE as CX.
Compute the reprojection errors as
reprojectionErrors = |x− xE|.
