Transpose Blocks of Image Using Block Processing

This example uses:

Open Model

This example shows how to transpose blocks of an image using block processing.

Example Model

Open the Simulink® model.

modelname = "ex_blkblockprocessing.slx";
open_system(modelname)

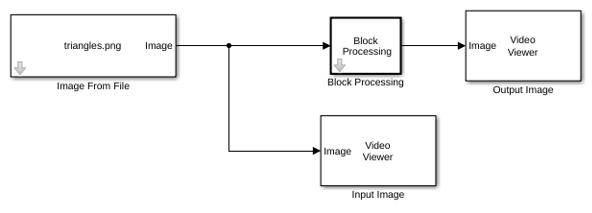

The model reads an input image using an Image From File block and performs a transpose operation on the blocks of the image using a Block Processing block with these parameters:

  • Number of inputs — 1

  • Add port to supply subsystem parameters — off

  • Number of outputs — 1

  • Block size — {[32 32]}

  • Overlap — {[0 0]}

  • Traverse order — Row-wise

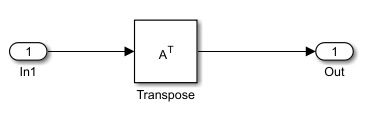

  • Subsystem — Consists of a Transpose (Simulink) block that transposes each block of the input image.

The Block Processing block divides the input image of size 64-by-64 into 4 blocks, each of size 32-by-32. It performs a transpose operation on each block, and then reassembles the transposed blocks to construct an output image of size 64-by-64.

Simulate the Model

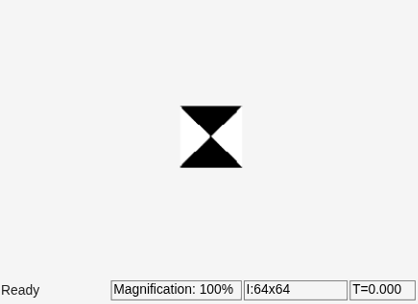

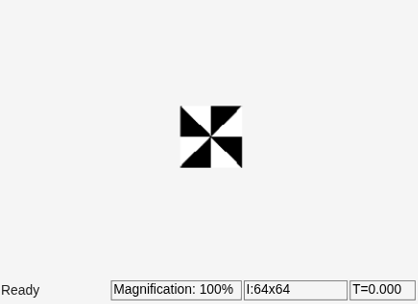

Run the model. The model displays the input image and the block-wise transposed output image using Video Viewer blocks.

sim(modelname);
