Smith Simulator
It allows to do on computer all you were doing with pencil and paper with some beautiful features.
Ahora está siguiendo esta publicación
- Verá actualizaciones en las notificaciones de contenido en seguimiento.
- Podrá recibir correos electrónicos, en función de las preferencias de comunicación que haya establecido.

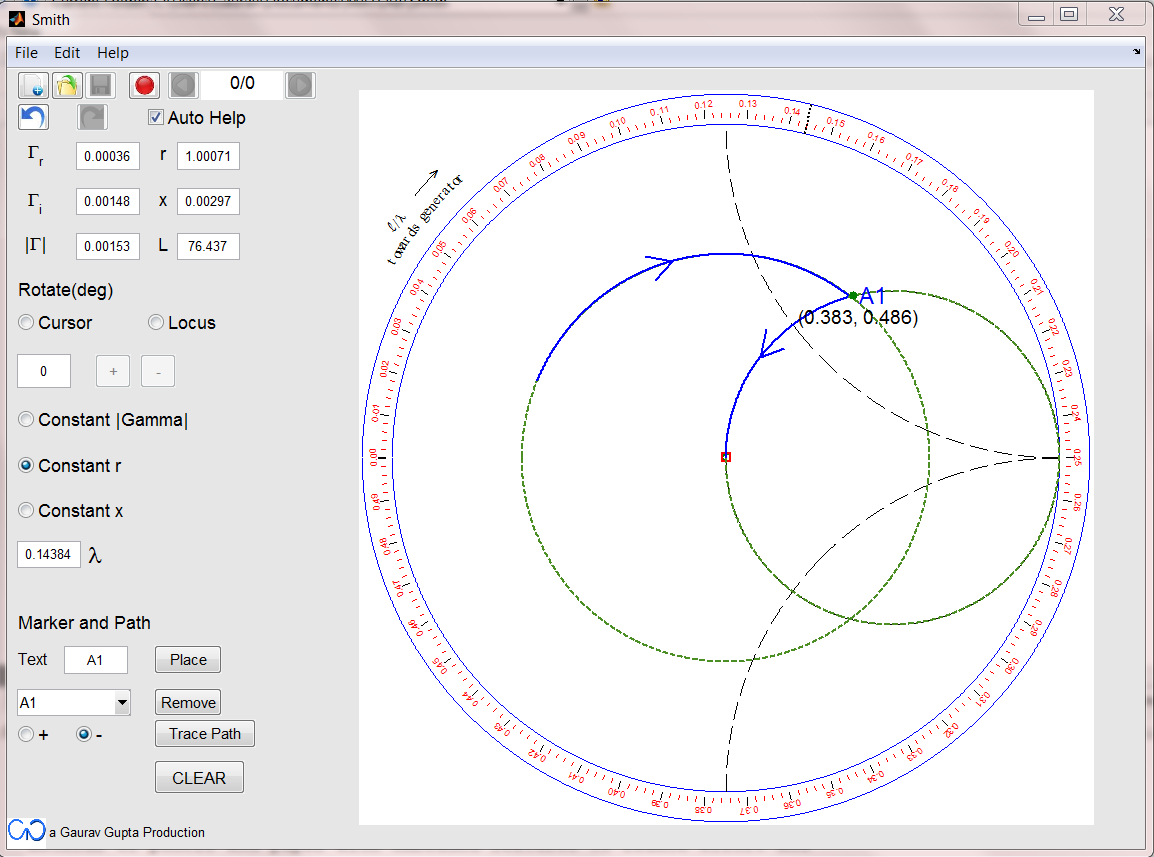

Smith simulator is an excellent learning and teaching resource which aims at ruling out old methods of using pencil, paper, geometry instruments to solve Smith chart and provides new and clean environment to solve and demonstrate Smith chart with various embedded features to save time and improve accuracy.
For more HELP see attached help or contact me.
Citar como
Gaurav Gupta (2026). Smith Simulator (https://la.mathworks.com/matlabcentral/fileexchange/35786-smith-simulator), MATLAB Central File Exchange. Recuperado .
Información general
- Versión 1.7.0.0 (897 KB)
Compatibilidad con la versión de MATLAB
- Compatible con cualquier versión
Compatibilidad con las plataformas
- Windows
- macOS
- Linux
| Versión | Publicado | Notas de la versión | Action |
|---|---|---|---|
| 1.7.0.0 | With this new play-ON feature you can record the steps made and distribute to other users. This feature offers flexibility to record STEPS irrespective of view settings which makes it different from normal Record. |
||
| 1.5.0.0 | 1. New feature of determining traced path length directly when moving along constant reflection co-efficient circle is added. 2. Admittance can also be shown of particular point while moving cursor by selecting from edit menu. |
||
| 1.4.0.0 | fixed a minor path tracing bug |
||
| 1.3.0.0 | updated help |
||
| 1.2.0.0 | Undo redo database management bug fixed |
||
| 1.1.0.0 | Fixed path forming bug |
||
| 1.0.0.0 |
