Simulate Bode Plot: Time and Frequency Domain Simulator

Versión 1.1.0.1 (25,4 KB) por Nassim Khaled
Simulate Bode Plot: Time and Frequency Domain Simulator
5.0
(1)
890 Descargas
Actualizado 31 oct 2018

Ver licencia

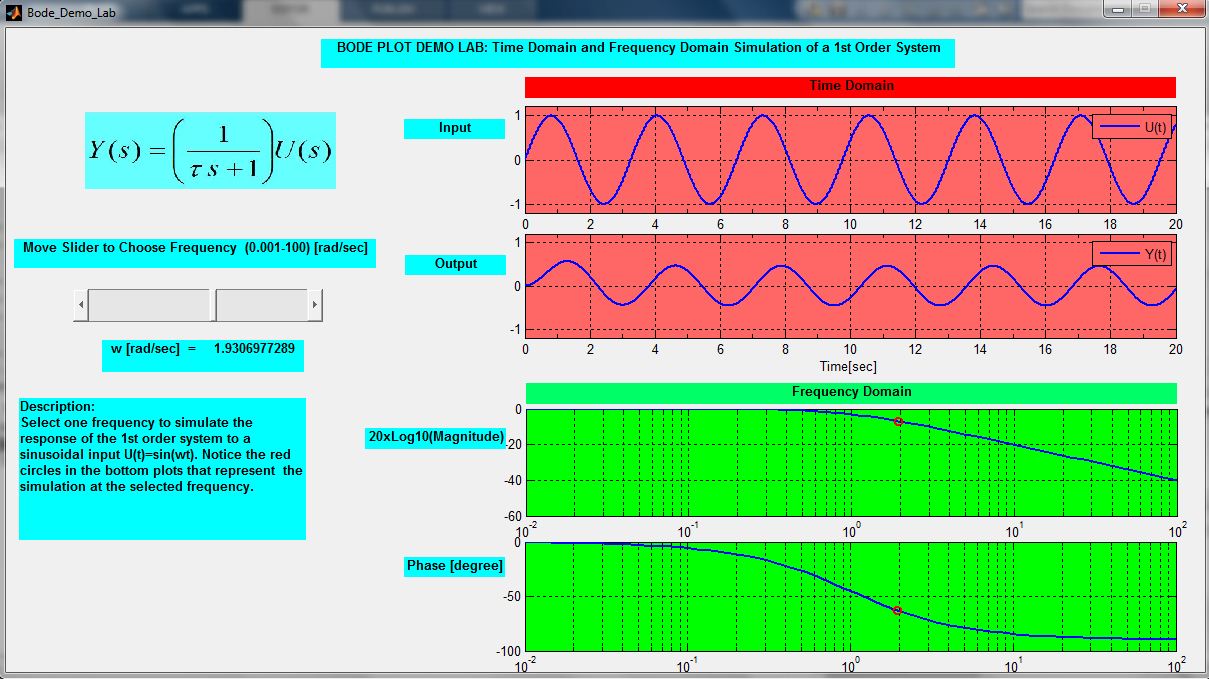

Students struggle to make the connection between the time and frequency domains when they see a bode plot. This submissions aims to help the students make the connections between the two domains through an interactive Graphical User Interface.
Leave your comments and I will try to get back to you when I have a chance.

Citar como

Nassim Khaled (2025). Simulate Bode Plot: Time and Frequency Domain Simulator (https://www.mathworks.com/matlabcentral/fileexchange/46001-simulate-bode-plot-time-and-frequency-domain-simulator), MATLAB Central File Exchange. Recuperado .

Compatibilidad con la versión de MATLAB
Se creó con R2013a
Compatible con cualquier versión
Compatibilidad con las plataformas
Windows macOS Linux

Community Treasure Hunt

Find the treasures in MATLAB Central and discover how the community can help you!

Start Hunting!

BodePlotDemo

Versión Publicado Notas de la versión
1.1.0.1

Added website
1.1.0.0

Tags were not properly entered
1.0.0.0
