Create and customize a bar graph with error bars. Supports grouped data.
Ahora está siguiendo esta publicación
- Verá actualizaciones en las notificaciones de contenido en seguimiento.
- Podrá recibir correos electrónicos, en función de las preferencias de comunicación que haya establecido.
This function will create a grouped bar graph with error bars without using the standard plotting functions BAR and ERRORBAR. It uses PATCH to create the bars and LINE to construct the error bars.
USAGE: h = barpatch(data, varargin)
__________________________________________________________________________
OUTPUT
h: handles to all graphics objects
__________________________________________________________________________
INPUTS
data: data matrix to plot; rows are cases, columns are variables
varargin: optional arguments entered as "name,value" pairs (to see default values, run barpatch without arguments). partial matches OK:
figh - handle for figure to plot in
groupidx - rows index columns of "data" to plot as a group
groupname - labels for different groups of bars
grouptick - flag to place tickmark between groups on x-axis
barname - labels for different bars within groups (in legend)
barcmap - colormap for distinguishing bars within a group
barwidth - width of bars (>1 produces overlapping bars)
errlinewidth- width of error bar lines
t - figure title
xl - x-axis label
yl - y-axis label
fontsize - base font size
fontname - name of font to use
ytickformat - display formatting for yticklabels (e.g., '%.2f')
yticklength - # of yticks (if empty, determined automatically)
__________________________________________________________________________

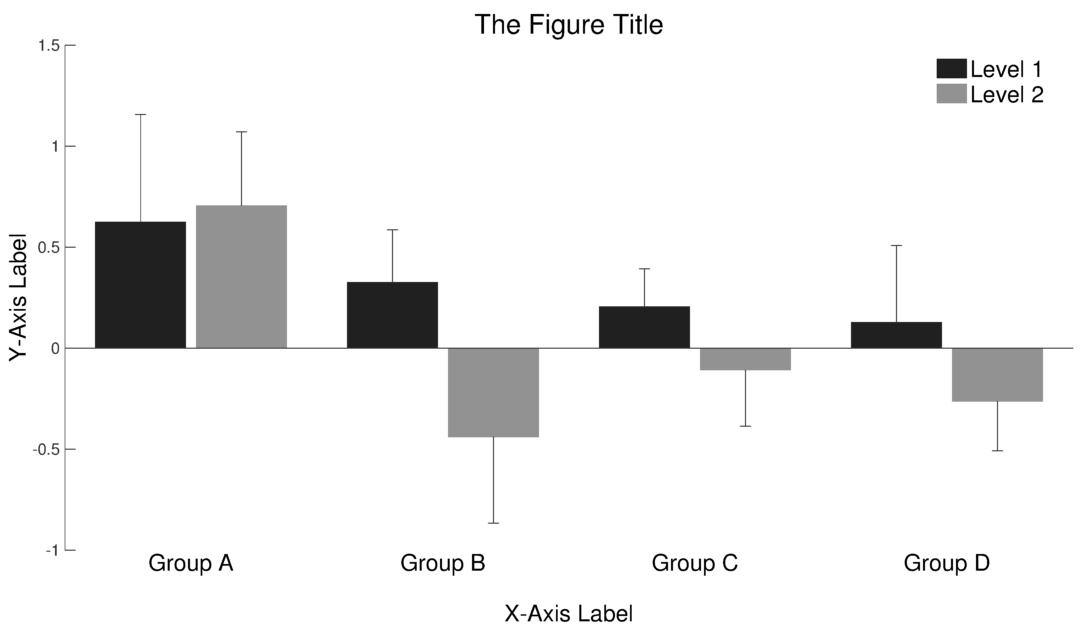

USAGE EXAMPLE
data = randn(10, 8);
groupidx = [1 2; 3 4; 5 6; 7 8];
groupn = {'Group A' 'Group B' 'Group C' 'Group D'};
xl = 'X-Axis Label';
yl = 'Y-Axis Label';
t = 'The Figure Title';
h = barpatch(data, 'groupidx', groupidx, 'groupname', groupn, 'xl', xl, 'yl', yl, 't', t);
Citar como
Bob Spunt (2026). BARPATCH | Highly customizable bar graph w/error bars (https://github.com/spunt/barpatch), GitHub. Recuperado .
Agradecimientos
Inspirado por: SETARGS | Parse user-specified optional arguments (varargin) with default values
Información general
- Versión 1.3.0.0 (7,72 KB)
-
Ver licencia en GitHub
Compatibilidad con la versión de MATLAB
- Compatible con cualquier versión
Compatibilidad con las plataformas
- Windows
- macOS
- Linux
No se pueden descargar versiones que utilicen la rama predeterminada de GitHub
| Versión | Publicado | Notas de la versión | Action |
|---|---|---|---|
| 1.3.0.0 | Added optional arguments for specifying width of bars and the lines comprising error bars; updated doc and input checking
|
||
| 1.2.0.0 | Improved input checking; added optional argument for custom colormap |
||
| 1.1.0.0 | Moved to GitHub. Fixes to label positioning. |
||
| 1.0.0.0 |
