Moody chart

version 1.1 (2.59 KB) by Ildeberto de los Santos Ruiz
Plots the Moody chart.

10 Downloads

Updated 03 Oct 2020

View Version History

GitHub view license on GitHub

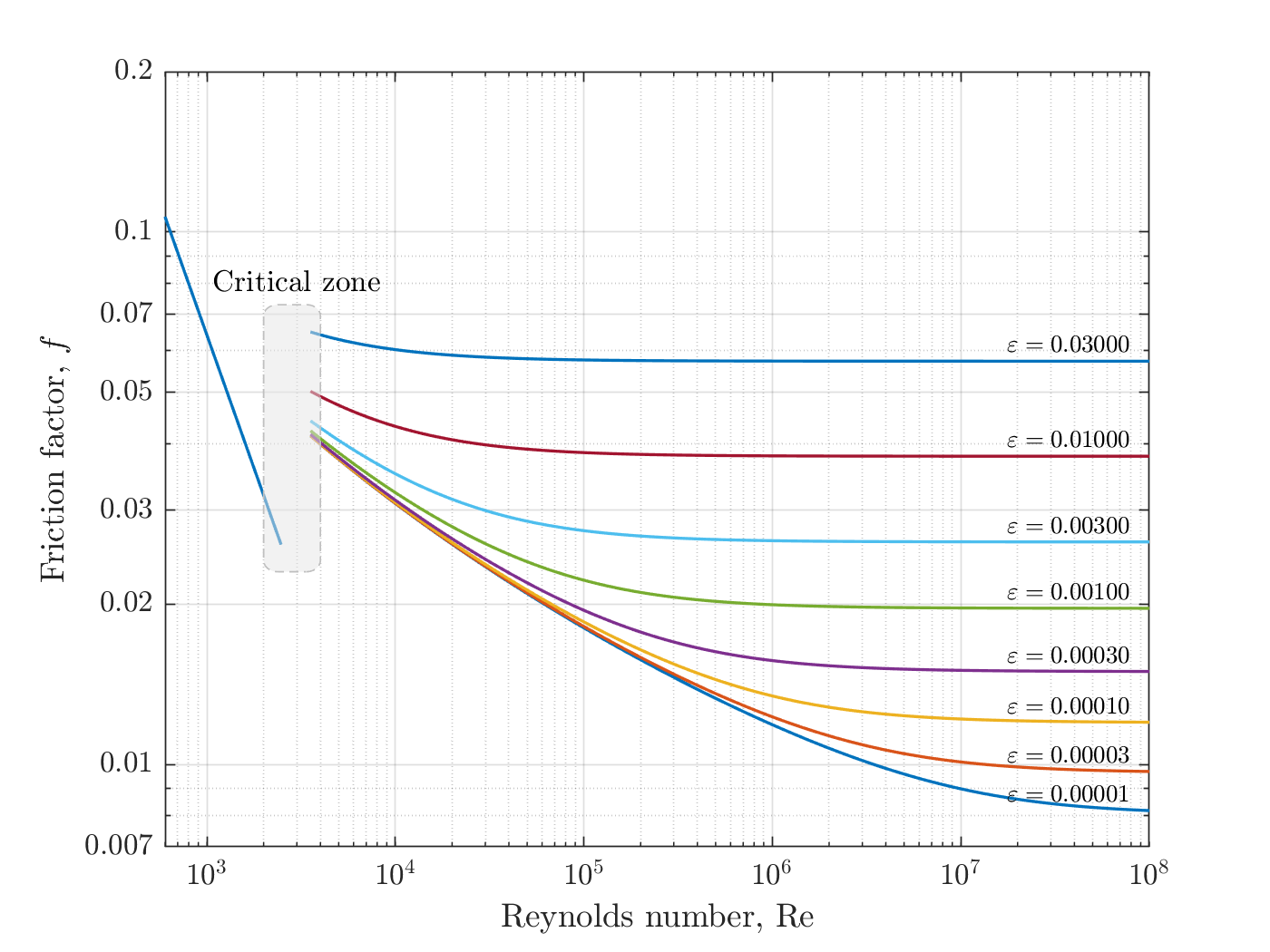

MATLAB code to plot the Moody chart, showing the relationship between the friction factor and the Reynolds number, for different roughness coefficients in a pipe.

Cite As

Ildeberto de los Santos Ruiz (2020). Moody chart (https://github.com/isantosruiz/moody/releases/tag/1.1), GitHub. Retrieved .

Santos-Ruiz, Ildeberto. Moody Chart. Zenodo, 2019, doi:10.5281/zenodo.3348314.
