Detect preamble in data
object™ detects a preamble in an input data sequence. A
preamble is a set of symbols or bits used in packet-based communication
systems to indicate the start of a packet. The preamble detector object
finds the location corresponding to the end of the preamble.
To detect a preamble in an input data sequence:
and set the properties of the object.
step to detect the presence
of a preamble.
Alternatively, instead of using the
to perform the operation defined by the System
object™, you can
call the object with arguments, as if it were a function. For example,
= step(obj,x) and
y = obj(x) perform
prbdet = comm.PreambleDetector creates
a preamble detector object,
prbdet, using the default
prbdet = comm.PreambleDetector(Name,Value) specifies
additional properties using
Name,Value pairs. Unspecified
properties have default values.
prbdet = comm.PreambleDetector(prb,Name,Value) specifies
prb in addition to those properties
specified by using
prbdet = comm.PreambleDetector('Input','Bit','Detections','First');
Input— Type of input data
Type of input data, specified as
For binary inputs, set this parameter to
For all other inputs, set this parameter to
Symbol data can be of data type
bit data can, in addition, support the
uint8 data types.
Preamble— Preamble sequence
[1+1i; 1-1i](default) | column vector
Preamble sequence, specified as a real or complex column vector.
The object uses this sequence to detect the presence of the preamble
in the input data. If
the preamble must be a binary sequence. If
the preamble can be any real or complex sequence.
Complex Number Support: Yes
Threshold— Detection threshold
3(default) | nonnegative scalar
Detection threshold, specified as a nonnegative scalar. When
the computed detection metric is greater than or equal to
the preamble is detected. This property is available when
Detections— Number of preambles to detect
Number of preambles to detect, specified as
'All' — Detects all the
preambles in the input data sequence.
'First' — Detect only the
first preamble in the input data sequence.
|reset||Reset states of preamble detector object|
|step||Detect preamble in data|
|Common to All System Objects|
Allow System object property value changes
Specify a six-bit preamble.
prb = [1 0 0 1 0 1]';
Create a preamble detector object using preamble
prb and taking bit inputs.
prbdet = comm.PreambleDetector(prb,'Input','Bit');
Generate a binary data sequence containing two preambles and using random bits to represent the data fields.
pkt = [prb; randi([0 1],10,1); prb; randi([0 1],10,1)];
Locate the indices of the two preambles. The indices correspond to the end of the preambles.
idx = prbdet(pkt)
idx = 2×1 6 22
The detector correctly identified indices 6 and 22 as the end of the two preambles inserted in the sequence.
Create a preamble and apply QPSK modulation.
p1 = [0 1 2 3 3 2 1 0]'; p = [p1; p1]; prb = pskmod(p,4,pi/4,'gray');
comm.PreambleDetector object using preamble
prbdet = comm.PreambleDetector(prb)
prbdet = comm.PreambleDetector with properties: Input: 'Symbol' Preamble: [16x1 double] Threshold: 3 Detections: 'All'
Generate a sequence of random symbols. The first sequence represents the last 20 symbols from a previous packet. The second sequence represents the symbols from the current packet.
d1 = randi([0 3],20,1); d2 = randi([0 3],100,1);
Modulate the two sequences.
x1 = pskmod(d1,4,pi/4,'gray'); x2 = pskmod(d2,4,pi/4,'gray');
Create a sequence of modulated symbols consisting of the remnant of the previous packet, the preamble, and the current packet.
y = [x1; prb; x2];
Add white Gaussian noise.
z = awgn(y,10);
Determine the preamble index and the detection metric.
[idx,detmet] = prbdet(z);
Calculate the number of elements in
idx. Because the number of elements is greater than one, the detection threshold is too low.
ans = 80
Display the five largest detection metrics.
detmetSort = sort(detmet,'descend'); detmetSort(1:5)
ans = 5×1 16.3115 13.6900 10.5698 9.1920 8.9706
Increase the threshold and determine the preamble index.
prbdet.Threshold = 15; idx = prbdet(z)
idx = 36
The result of 36 corresponds to the sum of the preamble length (16) and the remaining samples in the previous packet (20). This indicates that the preamble has been successfully detected.
When the input data is composed of bits, the preamble detector uses an exact pattern match.

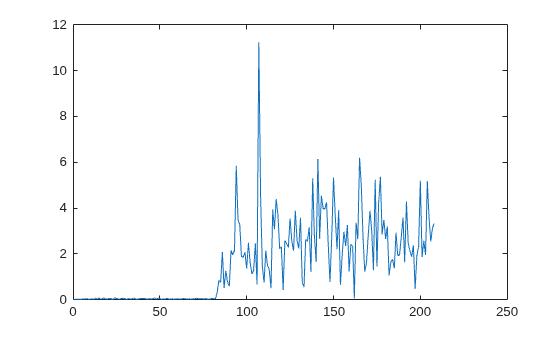

When the input data is composed of symbols, the preamble detector uses a cross-correlation algorithm. A finite impulse response (FIR) filter, in which the coefficients are specified from the preamble, computes the cross-correlation between the input data and the preamble. When a sequence of input samples match the preamble, the filter output reaches its peak. The index of the peak corresponds to the end of the preamble sequence in the input data. See Discrete FIR Filter for further information on the FIR filter algorithm.
The cross-correlation values that are greater than or equal to the specified threshold are reported as peaks.
If the detection threshold is too low, the algorithm will detect false peaks, or, in the extreme case, detect as many detected peaks as there are input samples.
If the detection threshold is too high, the algorithm will miss detecting peaks, or, in the extreme case, detect no peaks.
Consequently, the selection of the detection threshold is critical.
Usage notes and limitations:
See System Objects in MATLAB Code Generation (MATLAB Coder).
