mag2db

Convert magnitude to decibels (dB)

    Description

    example

    ydb = mag2db(y) expresses in decibels (dB) the magnitude measurements specified in y. The relationship between magnitude and decibels is ydb=20log10(y)

    Examples

    collapse all

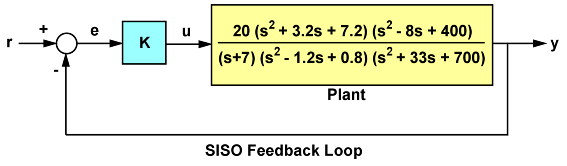

    For this example, consider the following SISO feedback loop where the system contains multiple gain crossover or phase crossover frequencies, which leads to multiple gain or phase margin values:

    Create the transfer function.

    G = tf(20,[1 7]) * tf([1 3.2 7.2],[1 -1.2 0.8]) * tf([1 -8 400],[1 33 700]);

    Use the allmargin command to compute all stability margins.

    m = allmargin(G)
    m = struct with fields:
         GainMargin: [0.3408 3.3920]
        GMFrequency: [1.9421 16.4807]
        PhaseMargin: 68.1178
        PMFrequency: 7.0762
        DelayMargin: 0.1680
        DMFrequency: 7.0762
             Stable: 1



    Note that gain margins are expressed as gain ratios and not in decibels (dB). Use mag2db to convert the values to dB.

    GainMargins_dB = mag2db(m.GainMargin)
    GainMargins_dB = 1×2

       -9.3510   10.6091



    Input Arguments

    collapse all

    Input array, specified as a scalar, vector, matrix, or an array. When y is nonscalar, mag2db is an element-wise operation.

    Data Types: single | double
    Complex Number Support: Yes

    Output Arguments

    collapse all

    Magnitude measurements in decibels, returned as a scalar, vector, matrix, or an array of the same size as y.
