view

Plot computed poles and zeros when using zero-pole truncation method

Since R2025a

Syntax

view(R)

view(___,Parent=parent)

h = view(R,___)

Description

view(R) plots the computed poles and zeros when using zero-pole truncation method.

view(___,Parent=parent) creates a plot in the specified parent graphics container, such as a Figure or TiledChartLayout. Use this syntax when you want to create a plot in a specified open figure or when creating apps in App Designer. You can specify the parent container after any of the input argument combinations in the previous syntaxes.

h = view(R,___) returns an IOPZPlot object. To customize your plot, modify properties of the plot object using dot notation.

Examples

Customize Zero-Pole Truncation Plots

This example shows how to customize the plot of pole-zero map for input-output pairs obtained using the view function. You use the view function to analyze the pole-zero map of the approximated zpk model when using zero-pole truncation method.

Generate a random sparse state-space model with 15 states, 2 outputs, and 2 inputs.

rng(0)
sys = sparss(rss(15,2,2));

Create a model reduction object using zero-pole truncation method, specify the required frequency band of interest, and compute the information.

R = reducespec(sys,'zpk');
R.Options.Focus = [0 2];
R.Options.Display = 'off';
R = process(R);

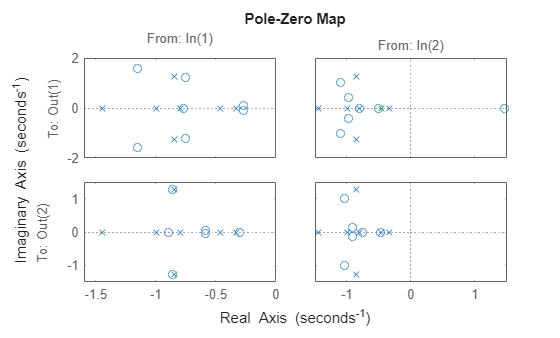

You can now visualize the pole-zero map of the approximated model.

view(R)

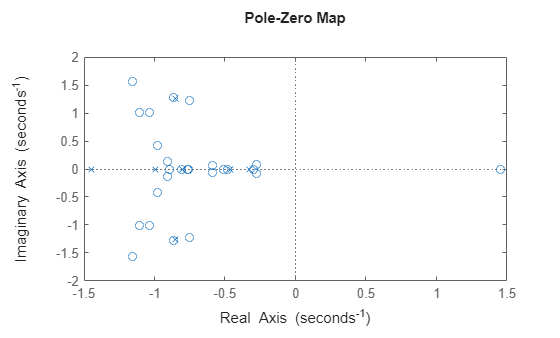

The function produces a map of poles and zeros corresponding to each input-output channel. When you specify an output argument with view, the function returns an IOPZPlot chart object. To customize the appearance of the plot, you can modify the properties of this object. For example, modify the chart object to view all I/Os on a single axis.

h = view(R);
h.IOGrouping = "all";

Input Arguments

R — Model order reduction specification object

SparseZeroPoleTruncation object

Model order reduction specification object created using reducespec, specified as a SparseZeroPoleTruncation object.

parent — Parent graphics container

Figure object | TiledChartLayout object | UIFigure object | UIGridLayout object | UIPanel object | UITab object | Axes object | UIAxes object

Parent graphics container, specified as one of these objects:

• Figure

• TiledChartLayout

• UIFigure

• UIGridLayout

• UIPanel

• UITab

You can also specify parent as an Axes or UIAxes object, which sets the plot parent to the parent of the specified axes object.

Output Arguments

h — Pole-zero map object

IOPZPlot object

Pole-zero map object, returned as an IOPZPlot chart object. To customize the plot, modify the properties of h using dot notation. For all available properties of IOPZPlot, see IOPZPlot Properties.

Version History

Introduced in R2025a
