plot

Plot cfit or sfit object

Syntax

plot(sfit)

plot(sfit,[x,y],z)

plot(___,Name=Value)

plot(cfit)

plot(cfit,x,y)

plot(cfit,x,y,DataLineSpec)

plot(cfit,FitLineSpec,x,y,DataLineSpec)

plot(cfit,x,y,outliers)

plot(cfit,x,y,outliers,OutlierLineSpec)

plot(___,ptype)

plot(___,ptype,level)

plot(ax,___)

H = plot(___)

Description

Surfaces

plot(sfit) plots the surface given in the sfit object sfit over the range of the current axes (gca). If no current axes exist, the function plots the surface over the range of the data used to create sfit.

plot(sfit,[x,y],z) plots sfit together with a scatter plot of the data in x, y, and z. The axes limits are given by the ranges of x and y.

plot(___,Name=Value) specifies options using one or more name-value arguments in addition to any of the input argument combinations in the previous syntaxes for surfaces. For example, you can specify the type and limits of the plot.

Curves

plot(cfit) plots the curve given in the cfit object cfit over the range of the current axes (gca). If no current axes exist, the function plots the curve over the range of the data used to create cfit.

plot(cfit,x,y) plots cfit together with a scatter plot of the data in x and y. The axes limits are given by the range of x.

plot(cfit,x,y,DataLineSpec) specifies the color, marker symbol, and line style used to plot the scatter plot data.

plot(cfit,FitLineSpec,x,y,DataLineSpec) specifies the color, marker symbol, and line style that plot uses to plot the curve given in cfit.

plot(cfit,x,y,outliers) specifies the scatter plot data to treat as outliers, and plots them in a different color.

plot(cfit,x,y,outliers,OutlierLineSpec) specifies the color, marker symbol, and line style used to plot the outliers.

plot(___,ptype) specifies the plot type using any of the input arguments combinations in the previous syntaxes for curves.

plot(___,ptype,level) specifies the confidence level for the prediction bounds when ptype is "predfunc" or "predobs".

Surfaces and Curves

plot(ax,___) plots into the axes specified by ax instead of gca. The argument ax can precede any of the input argument combinations in the previous syntaxes.

H = plot(___) returns a vector of handles to the plotted objects.

Examples

Plot Surface Fit

Load the franke data set.

load franke

The vectors x, y, and z contain data generated from Franke's bivariate test function.

Fit a Lowess smoothing model to the data in x, y, and z.

ls = fit([x,y],z,"lowess");

ls is an sfit object that contains the results of fitting the Lowess smoothing model to the data.

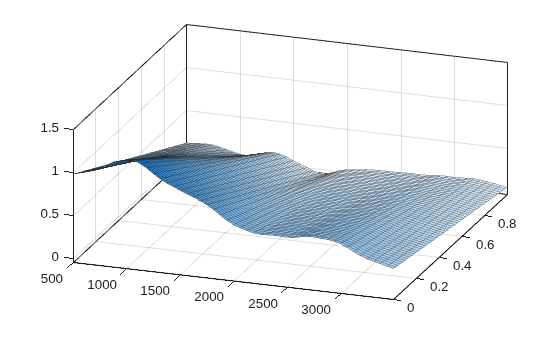

Plot ls and change the view of the figure.

plot(ls)
view([19.5 40.0])

The plot shows that the Lowess smoothing fit is a wavy surface that lies between z=0 and z=1.5 across the values for x and y.

Plot Curve Fit with Data

Load the titanium data set. Convert the data from row to column vectors.

[x, y] = titanium;
x = x';
y = y';

x contains temperature measurements and y contains measurements for a property of titanium.

Fit a Gaussian model to the x and y data.

g = fit(x,y,"gauss2");

g is a cfit object that contains the results of fitting the Gaussian model to the data.

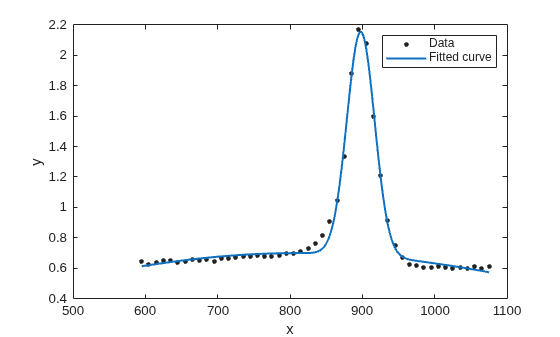

Plot g with a scatter plot of the data.

plot(g,x,y)

The plot shows that g closely follows the majority of the data, and the y data spikes when x is approximately 900.

Plot and Compare Fitting Methods

Generate some data for a baseline sinusoidal signal using the linspace and sin functions.

xdata = linspace(0,2*pi,60)';
y0 = sin(xdata);

xdata is a vector of 60 points between 0 and 2$$\pi$$, and y0 is a vector of values given by evaluating the sine function at the values in xdata.

Generate noise from a Gaussian distribution using the randn function.

rng(0,"twister") %  For reproducibility
gnoise = y0.*randn(size(y0));

To generate impulse noise, first use the randperm and round functions to create a vector of random indices.

leny0 = length(y0);
p = randperm(leny0);
stop = round(leny0/5);
idx = p(1:stop);

idx is a vector of integers representing the indices of y0.

Create a vector of impulse noise using the zeros function. Then, use the sign function to assign the values –5 and 5 to the noise vector at positions in idx where the elements of y0 are negative and positive, respectively.

szy = size(y0);
spnoise = zeros(szy);
yidx = y0(idx);
spnoise(idx) = 5*sign(yidx);

Add the noise vectors to y0.

ydata = y0 + gnoise + spnoise;

ydata is a vector of noisy data with nonconstant variance.

Fit a sinusoidal model to ydata.

f = fittype("a*sin(b*x)");
fit1 = fit(xdata,ydata,f,StartPoint=[1 1]);

fit1 contains the results of fitting a sinusoidal model using least-squares fitting.

Create a vector of outliers from the points in xdata and ydata that are more than 1.5 standard deviations away from the model in fit1.

fdata = feval(fit1,xdata);
outliers = abs(fdata - ydata) > 1.5*std(ydata);

Refit the data with the outliers excluded.

fit2 = fit(xdata,ydata,f,StartPoint=[1 1],...
           Exclude=outliers);

fit2 contains the results of fitting a sinusoidal model to the data with the outliers excluded.

Fit a third model using a robust fitting algorithm.

fit3 = fit(xdata,ydata,f,StartPoint=[1 1],Robust="on");

fit3 contains the results of fitting a sinusoidal model to the data using the bisquare-weights fitting algorithm.

To compare the fitted models, plot the data, outliers, and results of the fits. Plot each fit with a different color and line style, and plot the outliers with magenta asterisks.

plot(fit1,"r-",xdata,ydata,"k.",outliers,"m*")
hold on
plot(fit2,"c--")
plot(fit3,"b:")
xlim([0 2*pi])
legend("data","outlier","fit1","fit2","fit3")

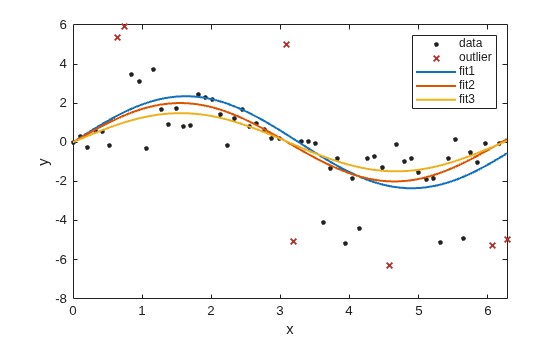

The plot shows each fit with a different line color and style. All three fits follow the bulk of the data. fit1 comes closer to the outliers than the other two fits.

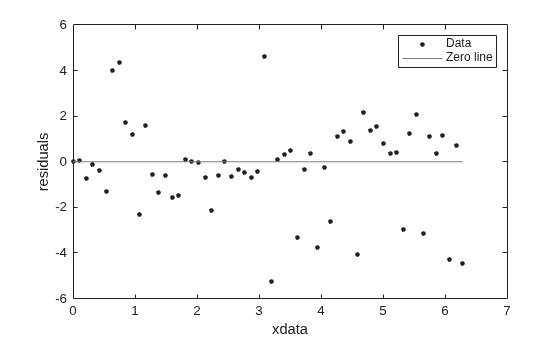

Plot the residuals for fit1.

figure
plot(fit1,xdata,ydata,"co","residuals")
hold on
xlabel("xdata")
ylabel("residuals")
hold off

The plot shows that the residuals for fit1 have nonconstant variance across the values in xdata.

Input Arguments

sfit — Surface fit object

sfit object

Surface fit object to plot, specified as an sfit object.

cfit — Curve fit object

cfit object

Curve fit object to plot, specified as a cfit object.

x — x-coordinates for scatter plot data

numeric column vector

x-coordinates for the scatter plot data, specified as a numeric column vector. When plotting cfit objects, you must also specify y when you specify x. When plotting sfit objects, you must also specify y and z when you specify x. x and y must be the same size.

Data Types: single | double

y — y-coordinates for scatter plot data

numeric column vector

y-coordinates for the scatter plot data, specified as a numeric column vector. When plotting cfit objects, you must also specify x when you specify y. When plotting sfit objects, you must also specify x and z when you specify y. x and y must be the same size.

Data Types: single | double

z — z-coordinates for scatter plot data

numeric column vector

z-coordinates for the scatter plot data, specified as a numeric column vector. You can specify z only when plotting sfit objects, and you must also specify x and y. z and x must be the same size.

Data Types: single | double

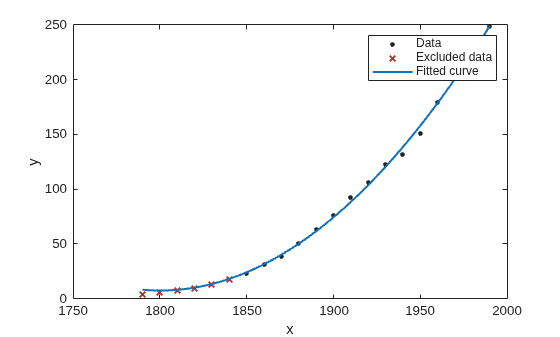

outliers — Indicator to treat scatter plot data as outliers

logical expression | index vector | logical vector

Indicator to treat scatter plot data as outliers, specified as a logical expression, index vector, or a logical vector. You can specify outliers only when plotting cfit objects.

• Logical expression — plot treats data points that satisfy the expression as outliers.

• Index vector — plot treats data points at the specified indices as outliers.

• Logical vector — plot treats data points at positions where outliers is true as outliers. You can create a logical vector to specify outliers by using the excludedata function.

For an example, see Exclude Points from Fit.

Example: x > 10 treats data with values for x greater than 10 as outliers.

Example: [1 10 25] treats data at indices 1, 10, and 25 as outliers.

Example: [zeros(100,1);ones(50,1)] treats the last 50 data points as outliers.

Data Types: logical | single | double

DataLineSpec — Line style, marker, and color for data

character vector | string scalar

Line style, marker, and color for the scatter plot data, specified as a character vector or string scalar containing symbols. The symbols can appear in any order. You do not need to specify all three characteristics (line style, marker, and color). For example, if you omit the line style and specify the marker, then the plot shows only the marker and no line.

You can specify DataLineSpec only when plotting cfit objects.

Line Style	Description
-	Solid line (default)
--	Dashed line
:	Dotted line
-.	Dash-dot line

Marker	Description
o	Circle
+	Plus sign
*	Asterisk
.	Point
x	Cross
s	Square
d	Diamond
^	Upward-pointing triangle
v	Downward-pointing triangle
>	Right-pointing triangle
<	Left-pointing triangle
p	Pentagram
h	Hexagram

Color	Description
y	Yellow
m	Magenta
c	Cyan
r	Red
g	Green
b	Blue
w	White
k	Black

Example: "--or" specifies a red dashed line with circle markers.

Data Types: char | string

FitLineSpec — Line style, marker, and color for curve

character vector | string scalar

Line style, marker, and color for the curve given in cfit, specified as a character vector or string scalar containing symbols. The symbols can appear in any order. You do not need to specify all three characteristics (line style, marker, and color). For example, if you omit the line style and specify the marker, then the plot shows only the marker and no line.

Line Style	Description
-	Solid line (default)
--	Dashed line
:	Dotted line
-.	Dash-dot line

Marker	Description
o	Circle
+	Plus sign
*	Asterisk
.	Point
x	Cross
s	Square
d	Diamond
^	Upward-pointing triangle
v	Downward-pointing triangle
>	Right-pointing triangle
<	Left-pointing triangle
p	Pentagram
h	Hexagram

Color	Description
y	Yellow
m	Magenta
c	Cyan
r	Red
g	Green
b	Blue
w	White
k	Black

Example: "--or" specifies a red dashed line with circle markers.

Data Types: char | string

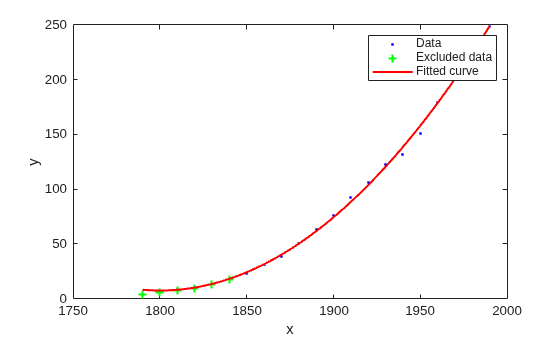

OutlierLineSpec — Line style, marker, and color for outliers

character vector | string scalar

Line style, marker, and color used to plot the outliers, specified as a character vector or string scalar containing symbols. The symbols can appear in any order. You do not need to specify all three characteristics (line style, marker, and color). For example, if you omit the line style and specify the marker, then the plot shows only the marker and no line.

You can specify OutlierLineSpec only when plotting cfit objects.

Line Style	Description
-	Solid line (default)
--	Dashed line
:	Dotted line
-.	Dash-dot line

Marker	Description
o	Circle
+	Plus sign
*	Asterisk
.	Point
x	Cross
s	Square
d	Diamond
^	Upward-pointing triangle
v	Downward-pointing triangle
>	Right-pointing triangle
<	Left-pointing triangle
p	Pentagram
h	Hexagram

Color	Description
y	Yellow
m	Magenta
c	Cyan
r	Red
g	Green
b	Blue
w	White
k	Black

Example: "--or" specifies a red dashed line with circle markers.

Data Types: char | string

ptype — Plot type for curve fit

"fit" (default) | "predfunc" | "predobs" | "residuals" | "stresiduals" | "deriv1" | "deriv2" | "integral"

Plot type for a curve fit, specified as one of the following:

• "fit" — Data and fit

• "predfunc" — Data and fit with prediction bounds for the fit

• "predobs" — Data and fit with prediction bounds for new observations

• "residuals" — Residuals

• "stresiduals" — Standardized residuals (residuals divided by their standard deviation)

• "deriv1" — First derivative of the fit

• "deriv2" — Second derivative of the fit

• "integral" — Integral of the fit

Data Types: char | string

level — Confidence level for prediction intervals

0.95 (default) | scalar value in the range (0,1)

Confidence level for the prediction intervals of a curve fit when ptype is "predfunc" or "predobs", specified as a scalar value in the range (0,1).

Example: 0.99

Data Types: single | double

ax — Target axes

Axes object

Target axes, specified as an Axes object. If you do not specify the axes, then plot uses the current axes (gca).

Name-Value Arguments

Specify optional pairs of arguments as Name1=Value1,...,NameN=ValueN, where Name is the argument name and Value is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

Before R2021a, use commas to separate each name and value, and enclose Name in quotes.

Example: plot(sfit,[x,y],z,YLim=[0,1],Exclude=[1 10 25]) specifies the y-axis limits and points to treat as outliers.

Exclude — Indicator to treat scatter plot data as outliers

logical expression | index vector | logical vector

Indicator to treat scatter plot data as outliers, specified as a logical expression, index vector, or logical vector.

• Logical expression — plot treats data points that satisfy the expression as outliers.

• Index vector — plot treats data points at the specified indices as outliers.

• Logical vector — plot treats data points at positions where outliers is true as outliers. You can create a logical vector to specify outliers by using the excludedata function.

You must also specify x, y, and z input arguments when you specify Exclude.

For an example, see Exclude Points from Fit.

Example: Exclude=x>10 treats data with values for x greater than 10 as outliers.

Example: Exclude=[1 10 25] treats data at indices 1, 10, and 25 as outliers.

Example: Exclude=[zeros(100,1);ones(50,1)] treats the last 50 data points as outliers.

Data Types: logical | single | double

Style — Surface fit plot style

'Surface' (default) | 'PredFunc' | 'PredObs' | 'Residuals' | 'Contour'

Surface fit plot style, specified as one of the following:

• "Surface" — Plot the sfit object as a surface (default).

• "PredFunc" — Plot the sfit object as a surface with prediction bounds for the function.

• "PredObs" — Plot the sfit object as a surface with prediction bounds for new observations.

• "Residuals" — Plot the residuals for the sfit object. When you specify Style as "Residuals", you must also specify x, y, and z.

• "Contour" — Plot the sfit object as a contour plot.

Example: Style="Contour"

Data Types: char | string

Level — Confidence level for prediction intervals

0.95 (default) | scalar value in the range (0,1)

Confidence level for the prediction intervals of a surface fit when Style is "PredFunc" or "PredObs", specified as a scalar value in the range (0,1).

Example: Level=0.99

Data Types: single | double

XLim — x-axis limit

numeric vector

x-axis limit for a surface plot, specified as a numeric vector with two elements. If you provide x, y, and z data, the axes limits are given by x and y. Otherwise, plot uses the axes limits in sfit.

Example: XLim=[0 1]

Data Types: single | double

YLim — y-axis limit

numeric vector

y-axis limit for a surface plot, specified as a numeric vector with two elements. If you provide x, y, and z data, the axes limits are given by x and y. Otherwise, plot uses the axes limits in sfit.

Example: YLim=[-100 100]

Data Types: single | double

Parent — Handle of axes

Axes object

Handle of the axes for a surface plot, specified as an Axes object.

Example: Parent=ax

Version History

Introduced before R2006a
