computeBoundaryModel

Compute lane boundary points from clothoid lane boundary model

collapse all in page

Syntax

yworld = computeBoundaryModel(boundary,xworld)

Description

yworld = computeBoundaryModel(boundary,xworld) returns the y-coordinates of lane boundary points, yworld, derived from a lane boundary, boundary, at points specified by the x-coordinates, xworld. All points are in world coordinates.

Examples

collapse all

Open Live Script

Create clothoid curves to represent left and right lane boundaries. Then, plot the curves.

Create the left boundary.

lb = clothoidLaneBoundary('BoundaryType','Solid', ...
'Strength',1,'Width',0.2,'CurveLength',40, ...
'Curvature',-0.8,'LateralOffset',2,'HeadingAngle',10);

Create the right boundary with almost identical properties.

rb = lb;
rb.LateralOffset = -2;

Create a bird's-eye plot. Then, create the lane boundary plotters and plot the boundaries.

bep = birdsEyePlot('XLimits',[0 50],'YLimits',[-10 10]);
lbPlotter = laneBoundaryPlotter(bep,'DisplayName','Left-lane boundary','Color','r');
rbPlotter = laneBoundaryPlotter(bep,'DisplayName','Right-lane boundary','Color','g');
plotLaneBoundary(lbPlotter,lb)
plotLaneBoundary(rbPlotter,rb);

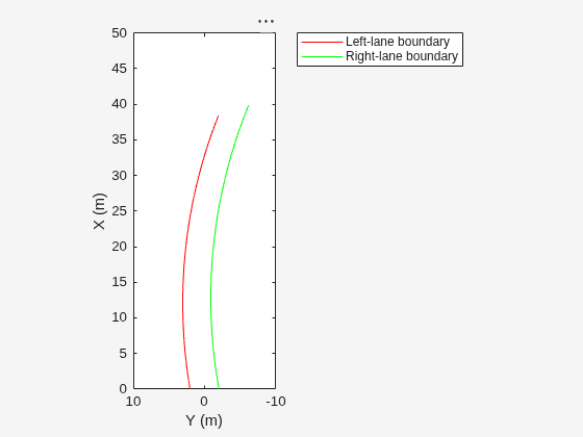

Figure contains an axes object. The axes object with xlabel X (m), ylabel Y (m) contains 2 objects of type line. These objects represent Left-lane boundary, Right-lane boundary.

grid
hold on

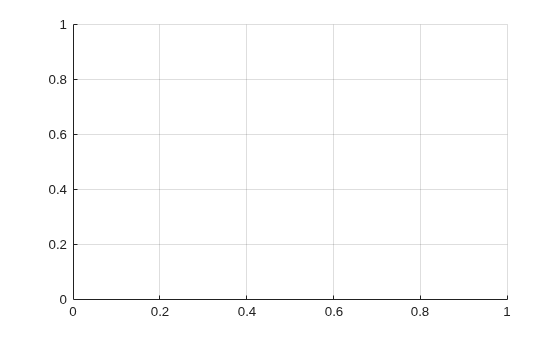

Figure contains an axes object. The axes object is empty.

Plot the coordinates of selected points along the boundaries.

x = 0:5:50;
yl = computeBoundaryModel(lb,x);
yr = computeBoundaryModel(rb,x);
plot(x,yl,'ro')
plot(x,yr,'go')
hold off

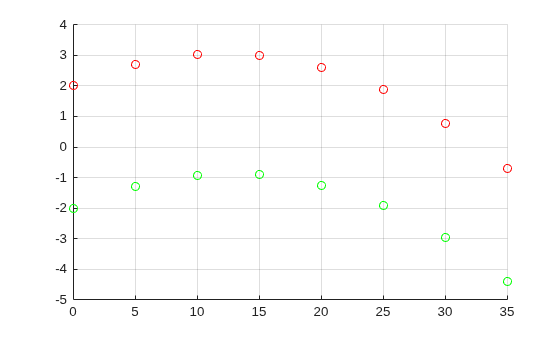

Figure contains an axes object. The axes object contains 2 objects of type line. One or more of the lines displays its values using only markers

Input Arguments

collapse all

Lane boundary model, specified as a clothoidLaneBoundary object.

x-world coordinates, specified as a real-valued vector of length N, where N is the number of coordinates.

Example: 2:2.5:100

Data Types: single | double

Output Arguments

collapse all

y-world coordinates, returned as a real-valued vector of length N, where N is the number of coordinates. The length and data type of yWorld are the same as for xWorld.

Data Types: single | double

Version History

Introduced in R2018a
